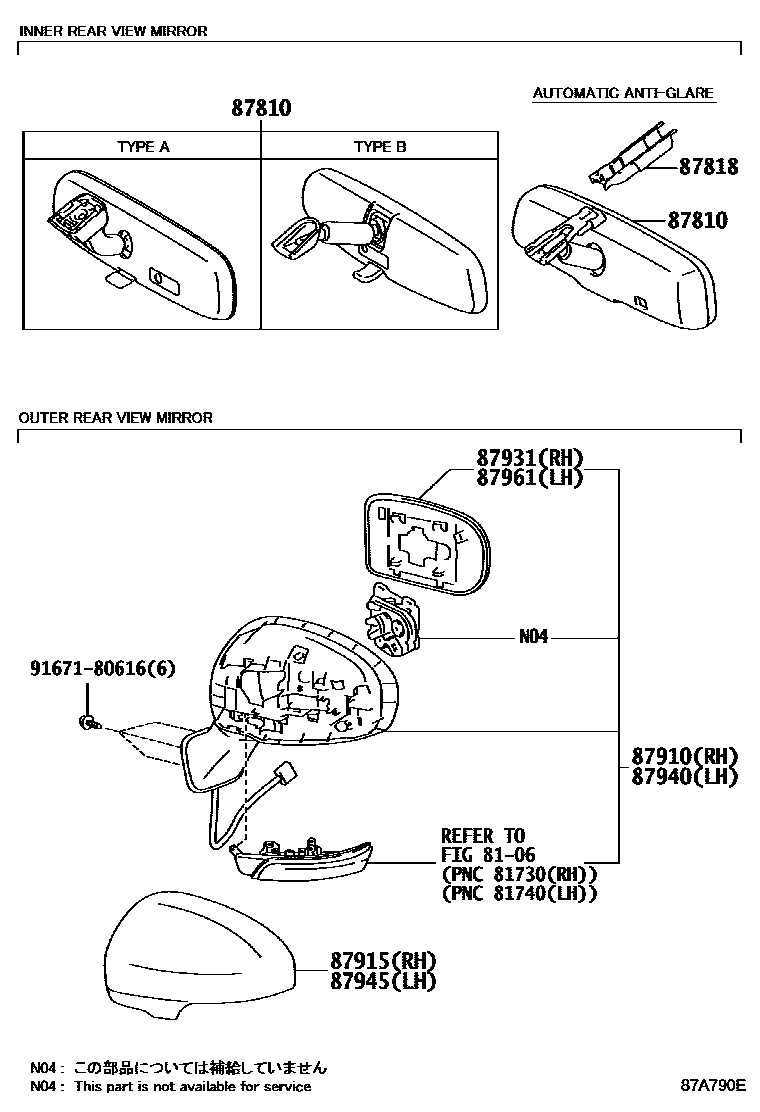

Toyota PRIUS — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
87818COVER, INNER RR VIEW MIRROR
main87818-47010
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
PAINT REQ.
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
DEEP RED M.M.,3R9
BEIGE ME.,4T8
DK.BLUE MC.,8T5
ABYSS GRAY ME.,8V1
DK.BLUE MC.,8S6
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
PAINT REQ.
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
DEEP RED M.M.,3R9
BEIGE ME.,4T8
DK.BLUE MC.,8T5
ABYSS GRAY ME.,8V1
DK.BLUE MC.,8S6
87961MIRROR OUTER, LH
9167180616
main91671-80616
10 parts on this diagram · 2 diagrams in section
