Toyota PRIUS — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
SILVER ME.,1C0
SILVER ME.,1F7
BLACK,202
DK. RED M.M.,3Q3
RED M.M.,3R3
BRONZE M.M.,4S2
JADE GREEN M.M.,6S9
LT.GREEN ME.,6U0
BLUE MC.,8M6
BLUE M.M.,8S2
GRAY ME.,1G3
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
SILVER ME.,1C0
SILVER ME.,1F7
BLACK,202
DK. RED M.M.,3Q3
RED M.M.,3R3
BRONZE M.M.,4S2
JADE GREEN M.M.,6S9
LT.GREEN ME.,6U0
BLUE MC.,8M6
BLUE M.M.,8S2
GRAY ME.,1G3
9415180600
main94151-80600

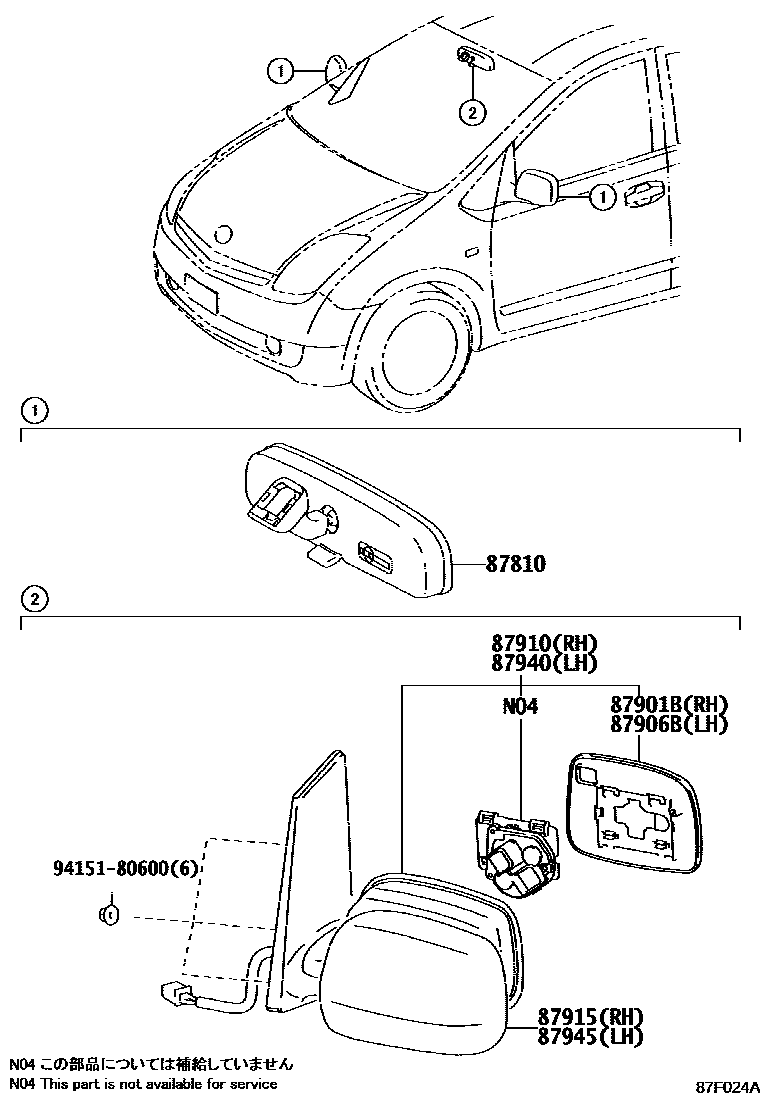

8 parts on this diagram · 1 diagram in section
