Toyota PRIUS — MIRROR

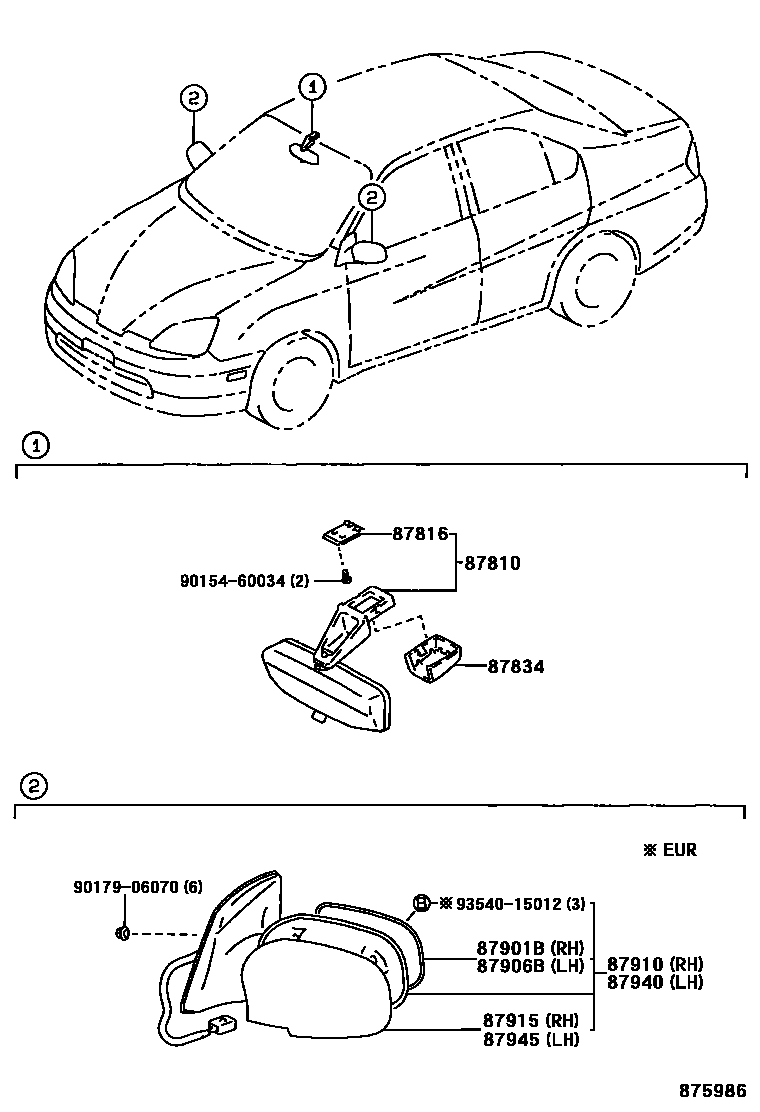

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-12270-B1i200005
MD.CHARCOAL,TRIM9#
87816SPRING, INNER REAR VIEW MIRROR
main74372-30030i200005
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-12030-B6i200005
MD.CHARCOAL,TRIM9#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87931-21110i200005
main87931-2D180i200005
main87931-47060i200108
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87961-2D160i200005
main87961-47040i200005
main87961-47060i200108
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-47040-A0i200005-200212
SUPER WHITE 2,040
main87910-47040-B0i200005
SILVER ME.GR.,1C5
main87910-47040-C0i200208-200212
BLACK,202
main87910-47040-D0i200208
BORDEAUX MC.,3P2
main87910-47040-G0i200005
DARK GREEN MC.,6R4
main87910-47040-H0i200005
LT.AQUA ME.OP.,761
main87910-47040-J0i200005
DK.BLUE MC.,8K8
main87910-47040-J1i200005-200208
BLUE M.M.,8P5
main87910-47050-A0i200005-200212
SUPER WHITE 2,040
main87910-47050-B0i200005
SILVER ME.GR.,1C5
main87910-47050-C0i200208-200212
BLACK,202
main87910-47050-D0i200208
BORDEAUX MC.,3P2
main87910-47050-G0i200005
DARK GREEN MC.,6R4
main87910-47050-H0i200005
LT.AQUA ME.OP.,761
main87910-47050-J0i200005
DK.BLUE MC.,8K8
main87910-47050-J1i200005-200208
BLUE M.M.,8P5
main87910-47060-A0i200108
SUPER WHITE 2,040
main87910-47060-B0i200108
SILVER ME.GR.,1C5
main87910-47060-D0i200208
BORDEAUX MC.,3P2
main87910-47060-G0i200108
DARK GREEN MC.,6R4
main87910-47060-H0i200108
LT.AQUA ME.OP.,761
main87910-47060-J0i200108
DK.BLUE MC.,8K8
main87910-47060-J1i200108-200208
BLUE M.M.,8P5
87915COVER, OUTER MIRROR, RH
main87915-12010-A1i200108
SUPER WHITE 2,040
main87915-12010-B0i200108
SILVER ME.GR.,1C5
main87915-12010-D6i200209
BORDEAUX MC.,3P2
main87915-12010-G0i200108
DARK GREEN MC.,6R4
main87915-12010-H1i200108
LT.AQUA ME.OP.,761
main87915-12010-J1i200108
DK.BLUE MC.,8K8
main87915-12010-J2i200108-200208
BLUE M.M.,8P5
main87915-20040-A0i200005-200212
SUPER WHITE 2,040
main87915-20040-B5i200005
SILVER ME.GR.,1C5
main87915-20040-C1i200208-200212
BLACK,202
main87915-20040-D4i200208
BORDEAUX MC.,3P2
main87915-20040-G6i200005
DARK GREEN MC.,6R4
main87915-20040-H0i200005
LT.AQUA ME.OP.,761
main87915-20040-J5i200005
DK.BLUE MC.,8K8
main87915-20040-J6i200005-200208
BLUE M.M.,8P5
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-47040-A0i200005-200212
SUPER WHITE 2,040
main87940-47040-B0i200005
SILVER ME.GR.,1C5
main87940-47040-C0i200208-200212
BLACK,202
main87940-47040-D0i200208
BORDEAUX MC.,3P2
main87940-47040-G0i200005
DARK GREEN MC.,6R4
main87940-47040-H0i200005
LT.AQUA ME.OP.,761
main87940-47040-J0i200005
DK.BLUE MC.,8K8
main87940-47040-J1i200005-200208
BLUE M.M.,8P5
main87940-47050-A0i200005-200212
SUPER WHITE 2,040
main87940-47050-B0i200005
SILVER ME.GR.,1C5
main87940-47050-C0i200208-200212
BLACK,202
main87940-47050-D0i200208
BORDEAUX MC.,3P2
main87940-47050-G0i200005
DARK GREEN MC.,6R4
main87940-47050-H0i200005
LT.AQUA ME.OP.,761
main87940-47050-J0i200005
DK.BLUE MC.,8K8
main87940-47050-J1i200005-200208
BLUE M.M.,8P5
main87940-47060-A0i200108
SUPER WHITE 2,040
main87940-47060-B0i200108
SILVER ME.GR.,1C5
main87940-47060-D0i200208
BORDEAUX MC.,3P2
main87940-47060-G0i200108
DARK GREEN MC.,6R4
main87940-47060-H0i200108
LT.AQUA ME.OP.,761
main87940-47060-J0i200108
DK.BLUE MC.,8K8
main87940-47060-J1i200108-200208
BLUE M.M.,8P5
87945COVER, OUTER MIRROR, LH
main87945-12010-A1i200108
SUPER WHITE 2,040
main87945-12010-B0i200108
SILVER ME.GR.,1C5
main87945-12010-D6i200209
BORDEAUX MC.,3P2
main87945-12010-G0i200108
DARK GREEN MC.,6R4
main87945-12010-H1i200108
LT.AQUA ME.OP.,761
main87945-12010-J1i200108
DK.BLUE MC.,8K8
main87945-12010-J2i200108-200208
BLUE M.M.,8P5
main87945-20040-A0i200005-200212
SUPER WHITE 2,040
main87945-20040-B5i200005
SILVER ME.GR.,1C5
main87945-20040-C1i200208-200212
BLACK,202
main87945-20040-D4i200208
BORDEAUX MC.,3P2
main87945-20040-G6i200005
DARK GREEN MC.,6R4
main87945-20040-H0i200005
LT.AQUA ME.OP.,761
main87945-20040-J5i200005
DK.BLUE MC.,8K8
main87945-20040-J6i200005-200208
BLUE M.M.,8P5
9015460034
main90154-60034
9017906070
main90179-06070
9354015012
main93540-15012

12 parts on this diagram · 1 diagram in section

MIRROR for Toyota PRIUS

This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota PRIUS. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
