Toyota PRIUS — METER

0001 1COMBINATION METER 0002 1COMBINATION METER 0003 1HEAD-UP DISPLAY 0004 1HEAD-UP DISPLAY

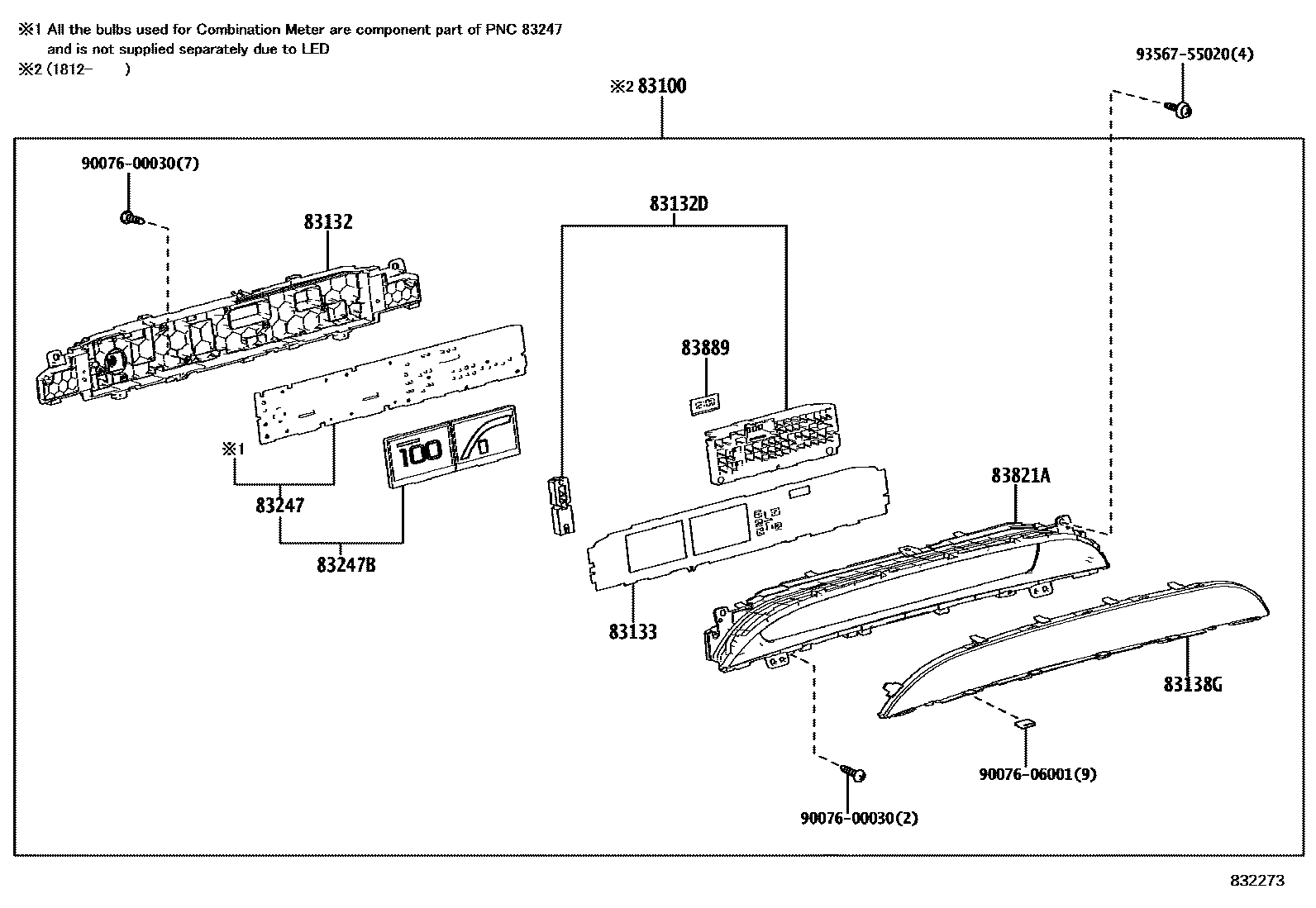

83100METER ASSY, COMBINATION

main83800-47U40iZVW50..ARL201812-201908

YAZAKI

main83800-47V30iZVW50..GCC201812-201908

YAZAKI

main83800-47Y10iZVW50..ARL201908-202007

YAZAKI

main83800-47Z20iZVW50..GCC201908-202006

YAZAKI

main83800-4E050iZVW50202007-202106

YAZAKI

main83800-4E230iZVW50202106-202110

YAZAKI

main83800-4E231iZVW50202111

YAZAKI

83132CASE, COMBINATION METER

main83841-47L00iZVW50..ARL201511-201812

main83841-47L20iZVW50..GCC201511-202006

83132DCASE, COMBINATION METER, NO.2

main83842-47L00iZVW50..ARL201511-201812

main83842-47L20iZVW50..GCC201511-202006

83133PLATE, COMBINATION METER, NO.1

main83811-47L90iZVW50..ARL201511-201711

main83811-47N00iZVW50..GCC201511-201711

main83811-47S00iZVW50..ARL201711-202007

main83811-47S90iZVW50..GCC201711-202006

main83811-4E050iZVW50202007

83138GGLASS, COMBINATION METER

main83852-47L00iZVW50201511-201711

main83852-47L70iZVW50201711-201812

83247PLATE, METER CIRCUIT

main83861-47L90iZVW50..ARL201511-201603

main83861-47L91iZVW50..ARL201603-201608

main83861-47N00iZVW50..GCC201511-201603

main83861-47N01iZVW50..GCC201603-201608

main83861-47Q40iZVW50..ARL201608-201711

main83861-47R30iZVW50..GCC201608-201711

main83861-47S00iZVW50..ARL201711-201812

main83861-47S90iZVW50..GCC201711-201812

main83861-47U40iZVW50..ARL201812-201908

main83861-47V30iZVW50..GCC201812-201908

main83861-47Y10iZVW50..ARL201908-202007

main83861-47Z20iZVW50..GCC201908-202006

main83861-4E050iZVW50202007-202106

main83861-4E230iZVW50202106-202111

main83861-4E231iZVW50202111

83247BPLATE, METER CIRCUIT, NO.2

main83862-47L90iZVW50..ARL201511-201603

main83862-47L91iZVW50..ARL201603-201608

main83862-47N00iZVW50..GCC201511-201603

main83862-47N01iZVW50..GCC201603-201608

main83862-47Q40iZVW50..ARL201608-201711

main83862-47R30iZVW50..GCC201608-201711

main83862-47S00iZVW50..ARL201711-201812

main83862-47S90iZVW50..GCC201711-201812

main83862-47U40iZVW50..ARL201812-201908

main83862-47V30iZVW50..GCC201812-201908

main83862-47Y10iZVW50..ARL201908-202007

main83862-47Z20iZVW50..GCC201908-202006

main83862-4E050iZVW50202007-202106

main83862-4E230iZVW50202106-202111

main83862-4E231iZVW50202111

83821ACOVER, COMBINATION METER, NO.1

main83821-47L00iZVW50..ARL201511-201812

main83821-47L20iZVW50..GCC201511-202006

83889MULTI-DISPLAY, COMBINATION METER

main83889-62010iZVW50201511-201812

9007600030

main90076-00030

9007606001

main90076-06001

9356755020

main93567-55020

12 parts on this diagram · 4 diagrams in section
