Toyota PRIUS — METER

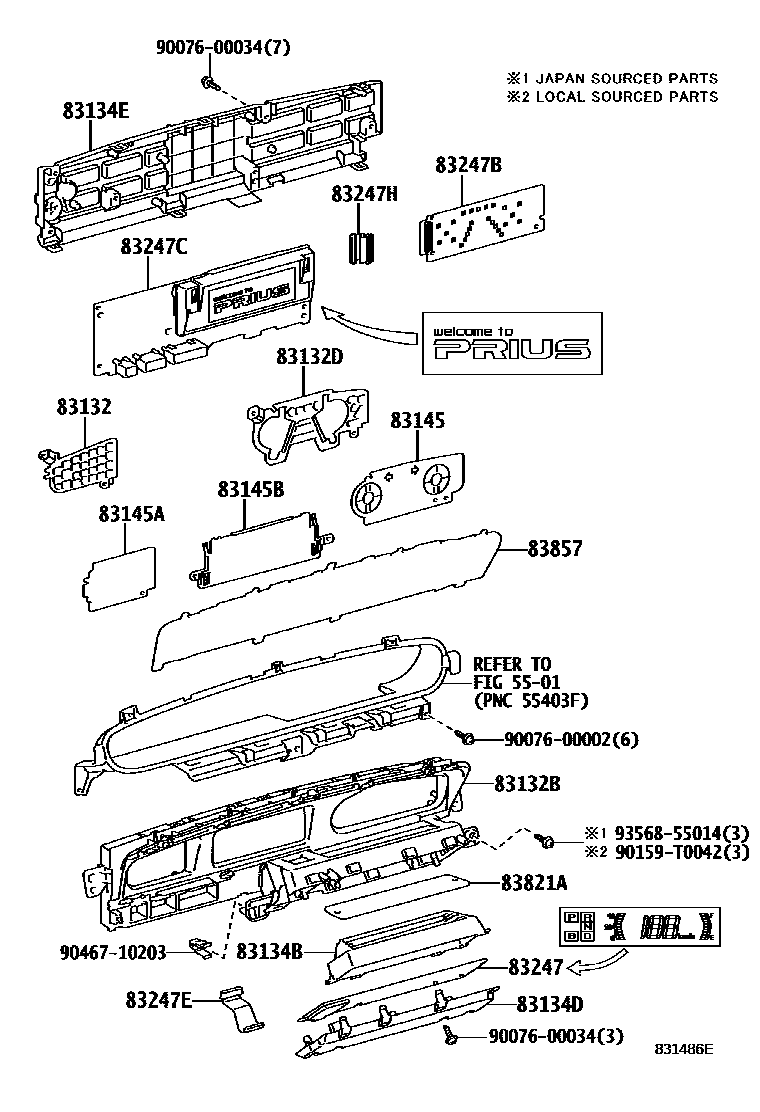

Parts diagram
5501
83132CASE, COMBINATION METER
main83841-47340i200904-201112
main83841-47360i200904-201112
83132BCASE, COMBINATION METER NO.3
main83841-47390i200904-201112
main83843-47340i200904-201112
83132DCASE, COMBINATION METER, NO.2
main83842-47340i200904-201112
main83842-47360i200904-201112
main83842-47870i201112
main83842-47890i201112
83134BCOVER, COMBINATION METER, NO.2
main83822-47340i201012-201204
main83822-47360i200904-201112
83134DCOVER, COMBINATION METER, NO.3
main83821-47360i201112
main83823-47340i201112
83134ECOVER, COMBINATION METER, NO.4
main83823-47360i201112
main83824-47340i200904-201112
83145LENS, METER, NO.1
main83831-47340i201012-201204
main83831-47360i200904-201112
main83831-47870i201204-201304
main83831-47890i201112-201304
main83831-47B01i201304
main83831-47B21i201304-201405
main83831-47G00i201405
main83831-47G10i201405
83145ALENS, METER, NO.2
main83831-47390supersedes 83832-47G00i201112-201405
main83831-47440supersedes 83831-47430i201012-201204
main83831-47420supersedes 83831-47430i200904-201112
ENGLAND SPEC
main83831-47450supersedes 83831-47390i201112
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC
main83832-47G10supersedes 83831-47K90i201405
ENGLAND SPEC
83145BLENS, METER, NO.3
main83833-47340i201204
83247PLATE, METER CIRCUIT
main83861-47440i201012-201204
main83861-47A60supersedes 83861-47A50i201112
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SINGAPORE SPEC&AUDIO-*DA *BT USB JBL 8SPEAKER
main83861-47380supersedes 83861-47A30i200904-201112
TAIWAN SPEC&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED&AUDIO-AV,BLUETOOTH,8SPEAKER
main83861-47420supersedes 83861-47A50i200904-201112
ENGLAND SPEC
main83861-47A20supersedes 83861-47A30i201112
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC
main83861-47A40supersedes 83861-47A50i201112
ENGLAND SPEC
83247BPLATE, METER CIRCUIT, NO.2
main83861-47B01i201304-201405
main83861-47B21i201304-201405
main83862-47340i201012-201204
main83862-47360i200904-201112
main83862-47870i201204-201304
main83862-47890i201112-201304
main83862-47D61i201405
main83862-47D81i201405
83247CPLATE, MATER CIRCUIT, NO.3
main83861-47690supersedes 83861-47680i201012-201204
main83861-47A61i201304
main83861-47B60i201210-201304
main83861-47B61i201304-201310
main83861-47B80i201210-201304
main83861-47B81i201304-201310
main83861-47B90i201210-201304
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&HONG KONG SPEC&AUDIO-*DA *BT USB JBL 8SPEAKER
main83861-47B91i201304-201310
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&INDIA SPEC&AUDIO-*DA *BT USB JBL 8SPEAKER
main83861-47D90supersedes 83861-47D80i201310-201405
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&HONG KONG SPEC&AUDIO-*DA *BT USB JBL 8SPEAKER
main83861-47D91i201405
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SINGAPORE SPEC&AUDIO-*DA *BT USB JBL 8SPEAKER
main83862-47440supersedes 83862-47430i200904-201011
SINGAPORE SPEC&EXPORT UPPER PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER
sub83862-47441
main83862-47A60supersedes 83862-47A50i201112-201210
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&INDIA SPEC&AUDIO-*DA *BT USB JBL 8SPEAKER
main83861-47450supersedes 83862-47390i200904-201011
TAIWAN SPEC&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED&AUDIO-AV,BLUETOOTH,8SPEAKER
sub83861-47451
main83861-47670supersedes 83861-47680i201011-201112
ENGLAND SPEC
main83861-47700supersedes 83861-47660i201011-201112
TAIWAN SPEC&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&HEADLAMP-LED&AUDIO-AV,BLUETOOTH,8SPEAKER
main83861-47A70supersedes 83862-47A30i201112-201210
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC
main83861-47B70i201210-201304
ENGLAND SPEC
main83861-47B71i201304-201310
ENGLAND SPEC
main83861-47C00i201210-201305
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC
main83861-47C01i201305-201310
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC
main83861-47D61supersedes 83861-47G00i201405
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ID PLATE(ALGERIA)&ALGERIA SPEC
main83861-47D70supersedes 83861-47D80i201310-201405
ENGLAND SPEC
main83861-47D81supersedes 83861-47K90i201405
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE
main83861-47E00supersedes 83861-47D60i201310-201405
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC
main83861-47E01supersedes 83861-47G00i201405
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL NAME PLATE & ADR & ID PLATE&TAIWAN SPEC
main83861-47G10supersedes 83861-47K90i201405
ENGLAND SPEC
main83862-47420supersedes 83862-47430i200904-201011
ENGLAND SPEC
sub83862-47421
main83862-47A40supersedes 83862-47A50i201112-201210
ENGLAND SPEC
83247EPLATE, MATER CIRCUIT, NO.4
main83864-47340i201112
83247HPLATE, METER CIRCUIT, NO.5
main83865-47340i201112
83821ACOVER, COMBINATION METER, NO.1
main83821-47340i201204-201510
83857REFLECTOR, COMBINATION METER, NO.1
main83857-47340i201204
9007600002
main90076-00002
9007600034
main90076-00034
90159T0042
main90159-T0042
9046710203
main90467-10203
9356855014
main93568-55014

22 parts on this diagram · 4 diagrams in section
