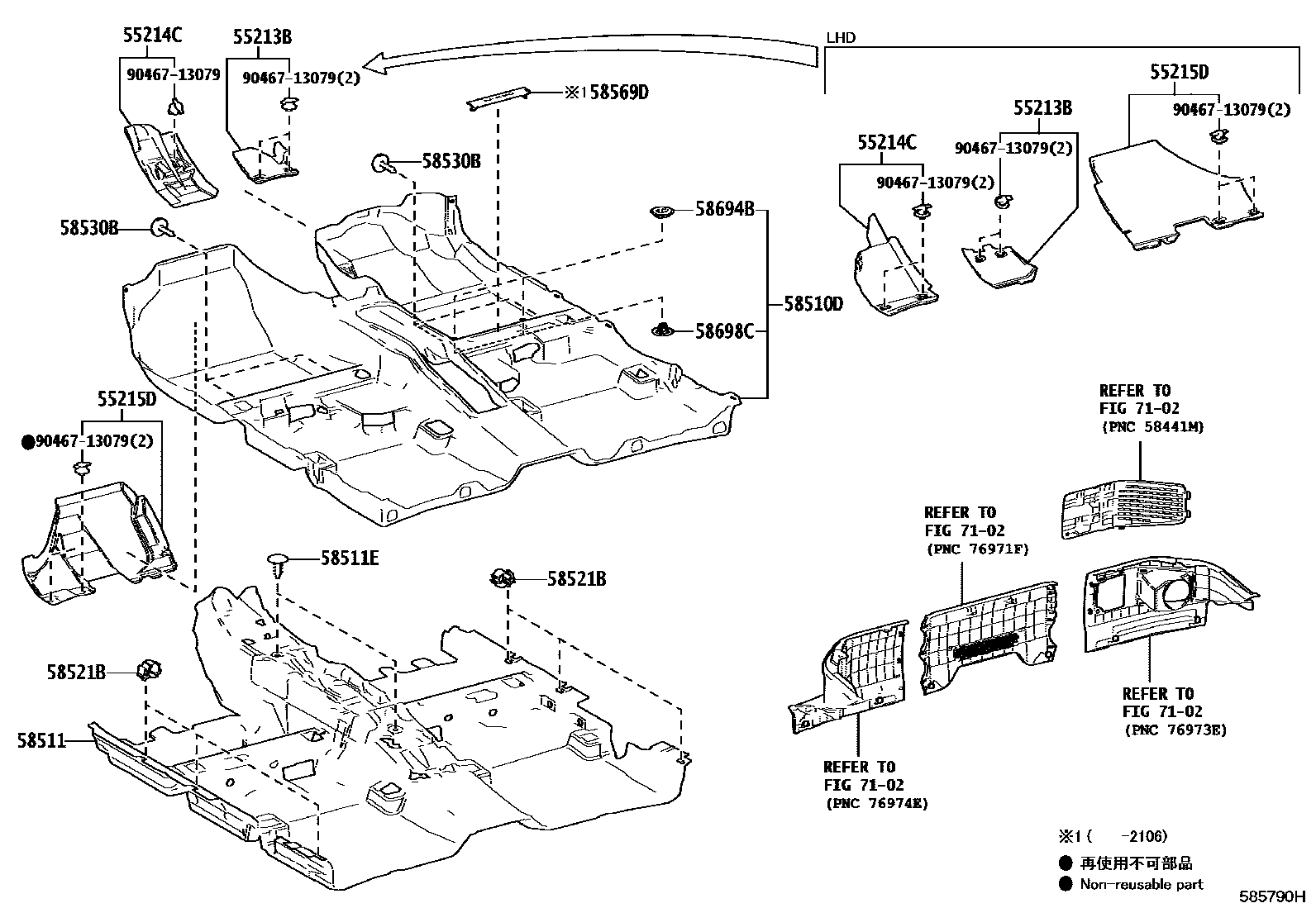

Toyota PRIUS — MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
58511ECLIP(FOR FRONT FLOOR MAT)
BLACK
BLACK
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
7102REAR SEAT & SEAT TRACK
9046713079
main90467-13079
13 parts on this diagram · 1 diagram in section
MAT & CARPET for Toyota PRIUS
This section contains 13 genuine Toyota parts for the MAT & CARPET system of the Toyota PRIUS. Key components include: PAD, DASH PANEL INSULATOR, NO.1, PAD, DASH PANEL INSULATOR, NO.2, PAD, DASH PANEL INSULATOR, NO.3, CARPET ASSY, FLOOR, FRONT, MAT, FLOOR, FRONT.
