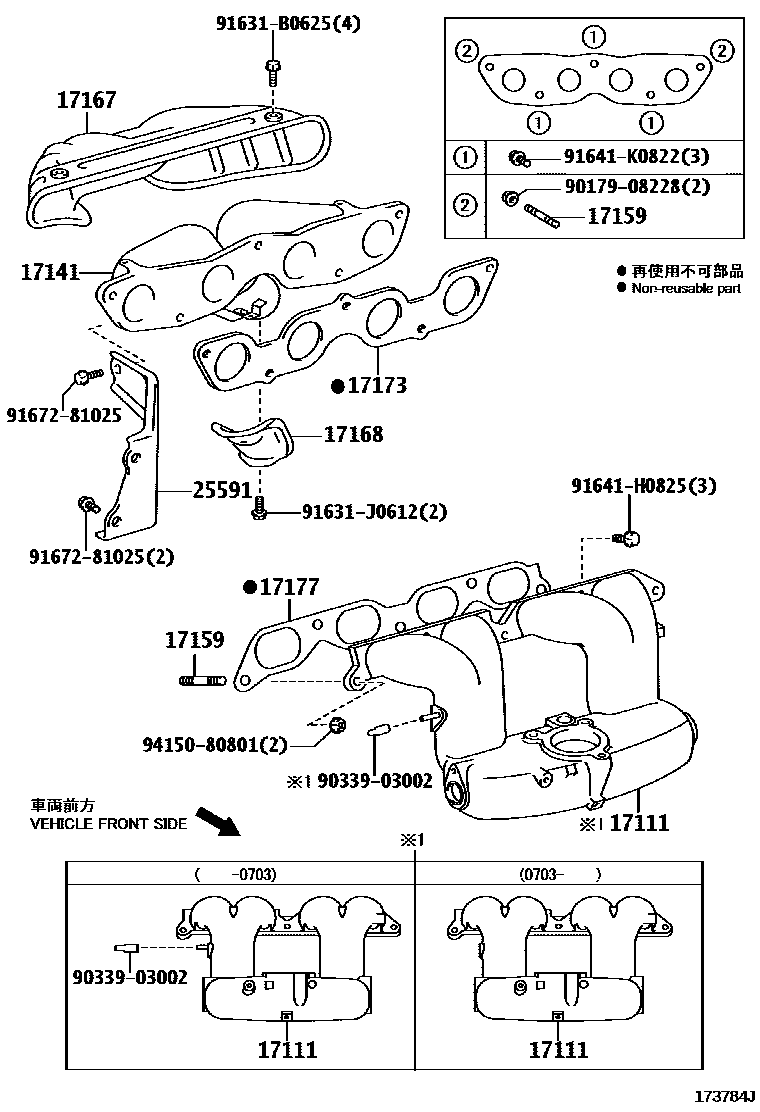

Toyota PRIUS — MANIFOLD
17111MANIFOLD, INTAKE
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE SIDE
EXHAUST SIDE
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
25591BRACKET, MANIFOLD SUPPORT
9017908228
main90179-08228
9033903002
main90339-03002
91631B0625
main91631-B0625
91631J0612
main91631-J0612
91641H0825
main91641-H0825
91641K0822
main91641-K0822
9167281025
main91672-81025
9415080801
main94150-80801
16 parts on this diagram · 1 diagram in section
MANIFOLD for Toyota PRIUS
This section contains 16 genuine Toyota parts for the MANIFOLD system of the Toyota PRIUS. Key components include: MANIFOLD, INTAKE, MANIFOLD, EXHAUST, BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD), INSULATOR, EXHAUST MANIFOLD HEAT, NO.1, INSULATOR, EXHAUST MANIFOLD HEAT, NO.2.
