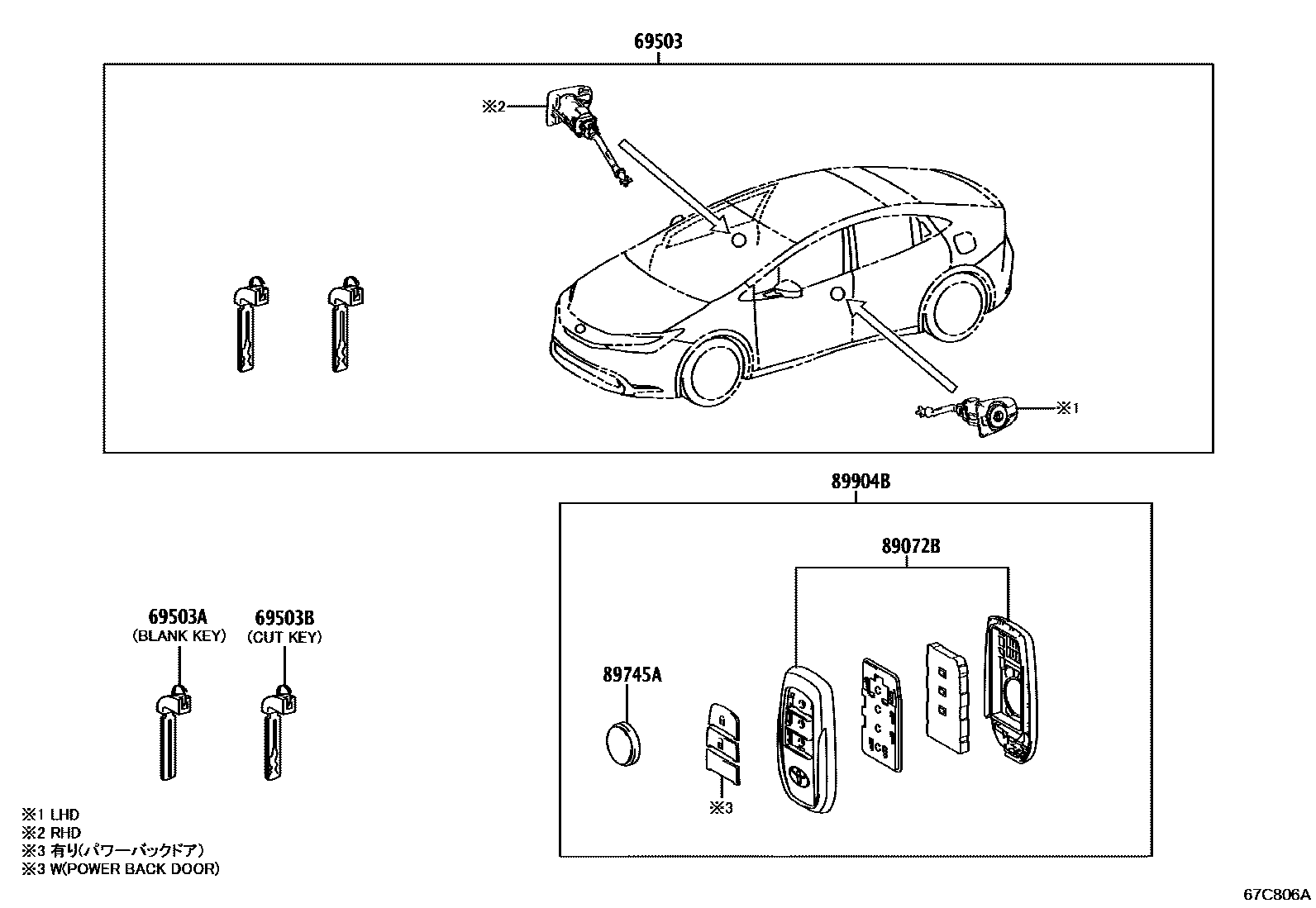

Toyota PRIUS — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-47300i202212

main69005-47320i202212

69503AKEY, BLANK

main69515-K0020i202212

BLANK KEY,W(*68)

69503BKEY, CUT

main69515-K0010i202212

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-47350×2supersedes 89072-47500i202310

CAMBODIA SPEC&; LAOS SPEC&

main89072-47520×2i202212

MONGOLIA SPEC&; VIETNAM SPEC&

main89072-47540×2i202303

89745ABATTERY, TRANSMITTER

main89745-K0020supersedes 89745-K0010i202212

CR2450; CR2450,CAMBODIA SPEC&; CR2450,LAOS SPEC&; CR2450,MONGOLIA SPEC&; CR2450,VIETNAM SPEC&

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-47030supersedes 8990H-47050i202212-202310

CAMBODIA SPEC,REFER TO PNC 89990A; LAOS SPEC,REFER TO PNC 89990A; REFER TO PNC 89990A

main8990H-47031i202411

MONGOLIA SPEC,REFER TO PNC 89990A; REFER TO PNC 89990A; VIETNAM SPEC,REFER TO PNC 89990A

main8990H-47260supersedes 8990H-47220i202310

CAMBODIA SPEC,REFER TO PNC 89990A; LAOS SPEC,REFER TO PNC 89990A; REFER TO PNC 89990A

main8990H-47060i202501

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

main8990H-47150i202303-202410

TAIWAN SPEC

main8990H-47151i202501

TAIWAN SPEC&PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITHOUT

6 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota PRIUS

This section contains 6 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota PRIUS. Key components include: CYLINDER SET, LOCK, KEY, BLANK, KEY, CUT, HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY), BATTERY, TRANSMITTER.
