Toyota PRIUS — LOCK CYLINDER SET

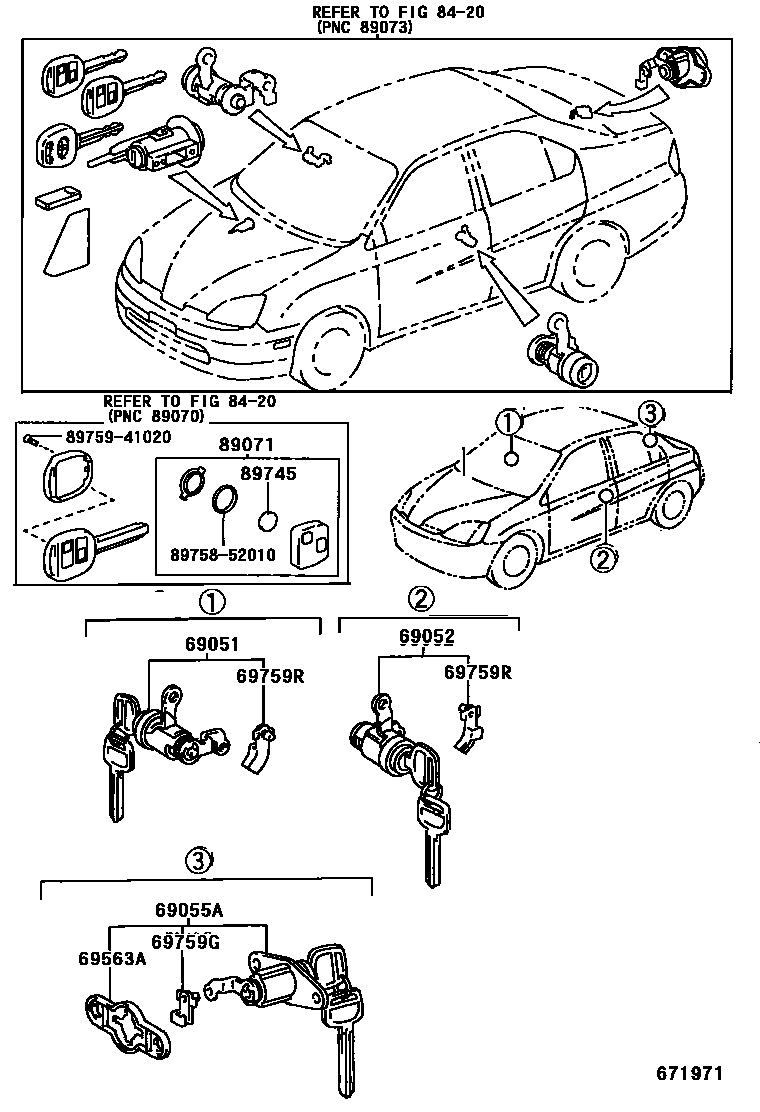

Parts diagram

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-47040i200005

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-47040i200005

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-47040i200005

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-12100i200005

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20090i200005

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080i200005

RH

main69759-12090i200005

LH

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

7 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota PRIUS

This section contains 7 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota PRIUS. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER, SNAP, LUGGAGE DOOR LOCK CYLINDER.
