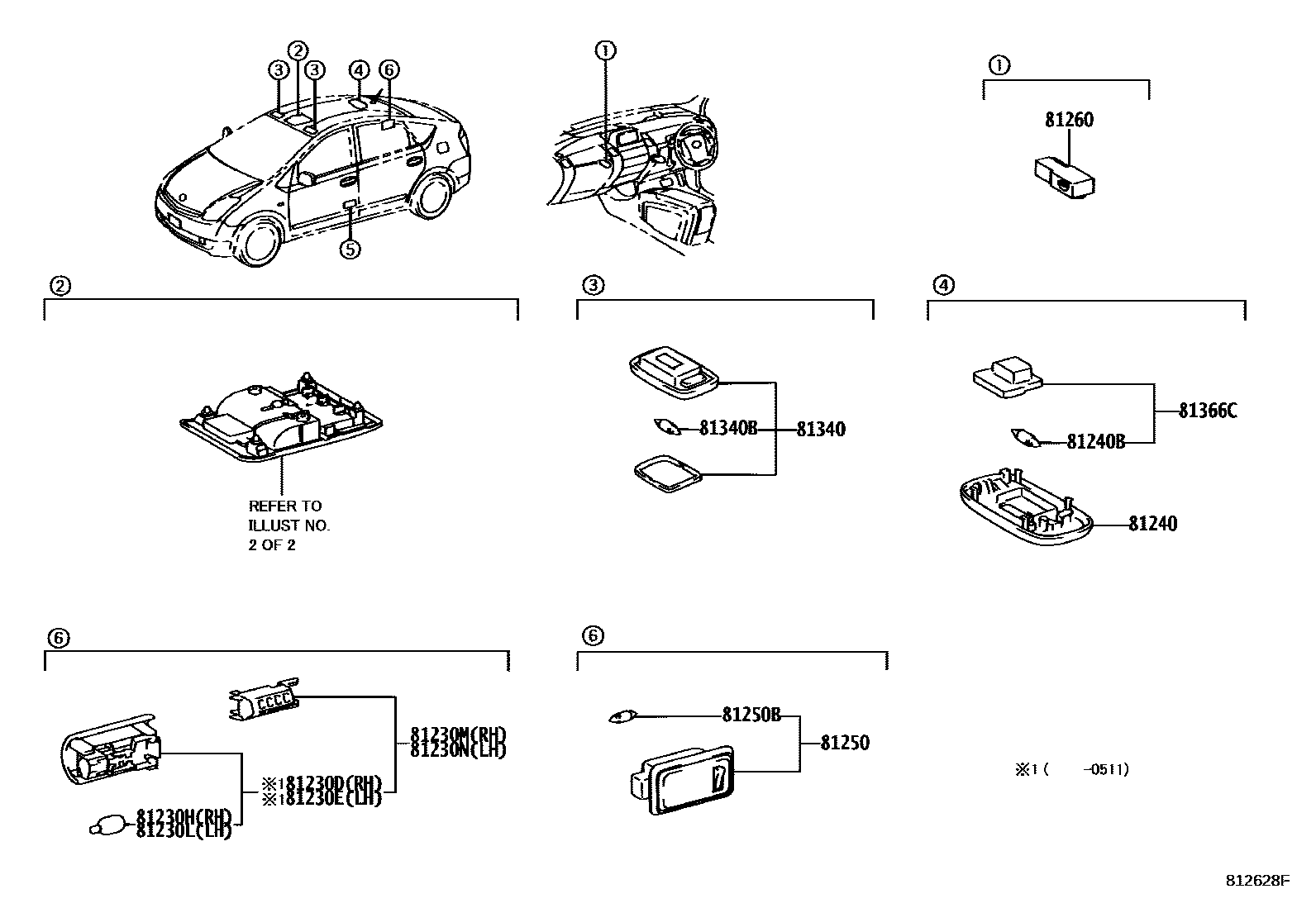

Toyota PRIUS — INTERIOR LAMP

81230DLAMP ASSY, FRONT DOOR COURTESY, RH

main81230-48020i200308-200511

81230ELAMP ASSY, FRONT DOOR COURTESY, LH

main81230-48020i200308-200511

81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)

main90981-12010i200511-200903

12V 5W

81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)

main90981-12010i200308-200511

12V 5W

81230MLAMP ASSY, COURTESY, RH

main81230-47010i200308-200511

81240LAMP ASSY, ROOM, NO.1

main81240-68010-A0i200308-200511

IVORY,TRIM0#

main81240-68010-B1i200308-200511

GRAY,TRIM1#

main81240-68010-E1i200511-200903

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i200308-200511

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-48010i200308-200511

81250BBULB, ROOM LAMP, NO.2

main99132-13050i200308-200511

12V 5W

81260LAMP ASSY, GLOVE BOX

main81080-48010i200511-200903

81340LAMP ASSY, VANITY

main81340-33140-A0×2i200308-200511

IVORY,TRIM0#

main81340-33140-B2×2i200511-200903

GRAY,TRIM1#

main81340-33140-E0×2i200511-200903

GREGE,TRIM4#

81340BBULB (FOR VANITY LAMP)

main99132-13050×2i200308-200511

12V 5W

81366CBASE, ROOM LAMP SWITCH

main81366-68010i200511-200903

13 parts on this diagram · 2 diagrams in section

INTERIOR LAMP for Toyota PRIUS

This section contains 18 genuine Toyota parts for the INTERIOR LAMP system of the Toyota PRIUS. Key components include: LAMP ASSY, FRONT DOOR COURTESY, RH, LAMP ASSY, FRONT DOOR COURTESY, LH, BULB(FOR FRONT DOOR COURTESY LAMP RH), BULB(FOR FRONT DOOR COURTESY LAMP LH), LAMP ASSY, COURTESY, RH.
