Toyota PRIUSHORN

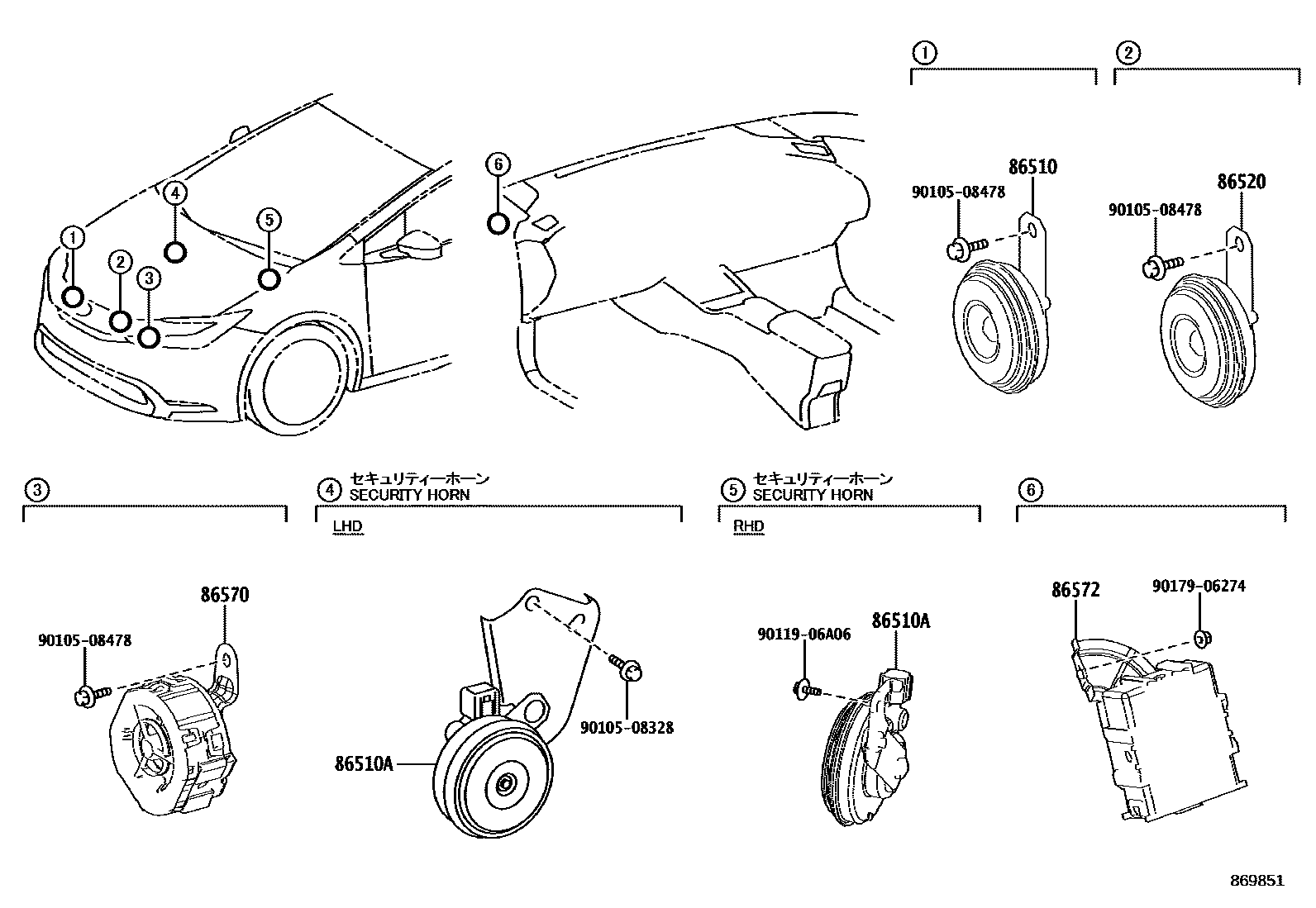

Parts diagram
86510HORN ASSY, HIGH PITCHED
main86510-26130i202212-202301
VIETNAM SPEC&
main86510-26131i202302
VIETNAM SPEC&
86510AHORN ASSY, SECURITY
main86560-10020i202212
main86560-16020i202212
86520HORN ASSY, LOW PITCHED
main86520-20300i202212
main86520-26200i202212-202301
VIETNAM SPEC&
main86520-26201i202302
VIETNAM SPEC&
86570SPEAKER ASSY, VEHICLE APPROACHING
main86570-12030i202212
86572CONTROLLER, VEHICLE APPROACHING SPEAKER
main86572-47220i202212
main86572-47230i202303
9010508328
9010508478
9011906A06
9017906274

9 parts on this diagram · 1 diagram in section

HORN for Toyota PRIUS

This section contains 9 genuine Toyota parts for the HORN system of the Toyota PRIUS. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, SECURITY, HORN ASSY, LOW PITCHED, SPEAKER ASSY, VEHICLE APPROACHING, CONTROLLER, VEHICLE APPROACHING SPEAKER.
