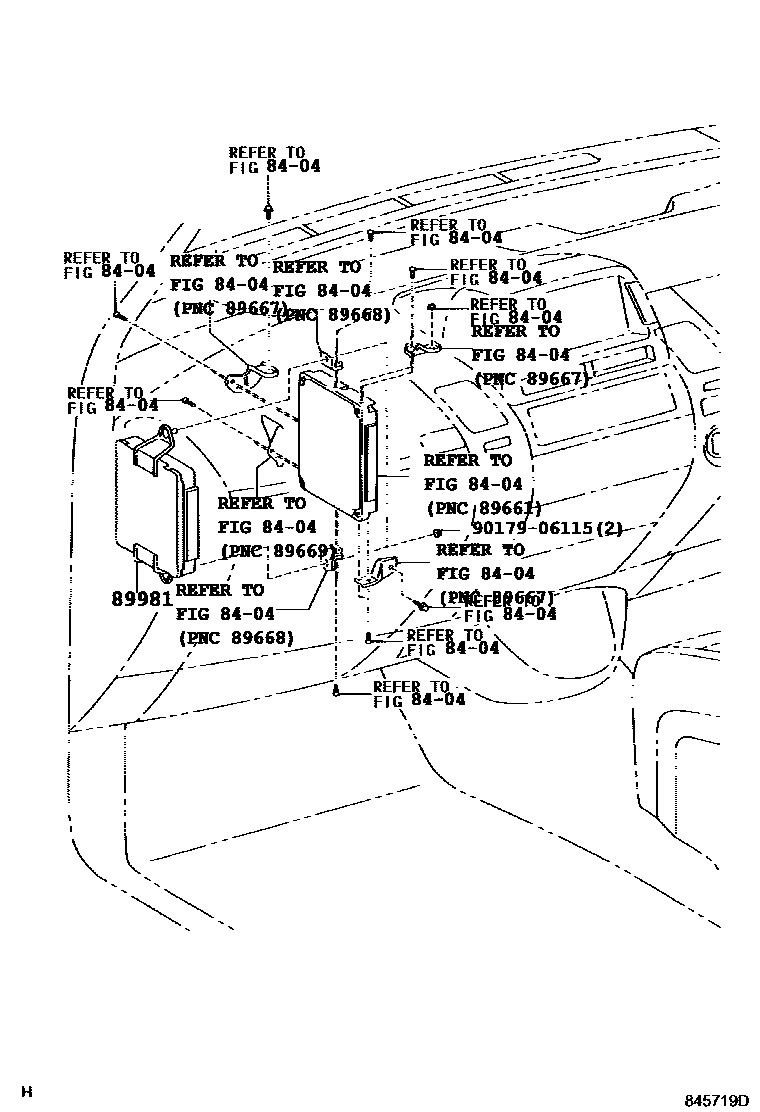

Toyota PRIUS — HEV CONTROL COMPUTER

0001 1 0002 1

8404

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-47090iNHW20..LHD200308-200408

sub89981-47180

main89981-47100iNHW20..RHD200308-200408

sub89981-47190

main89981-47130iNHW20..LHD200408-200511

sub89981-47320

main89981-47140iNHW20..RHD200408-200511

sub89981-47310

main89981-47160iNHW20..LHD200511-200903

main89981-47220iNHW20..RHD200511-200806

main89981-47221iNHW20..RHD200807-200903

9017906115

main90179-06115

3 parts on this diagram · 2 diagrams in section
