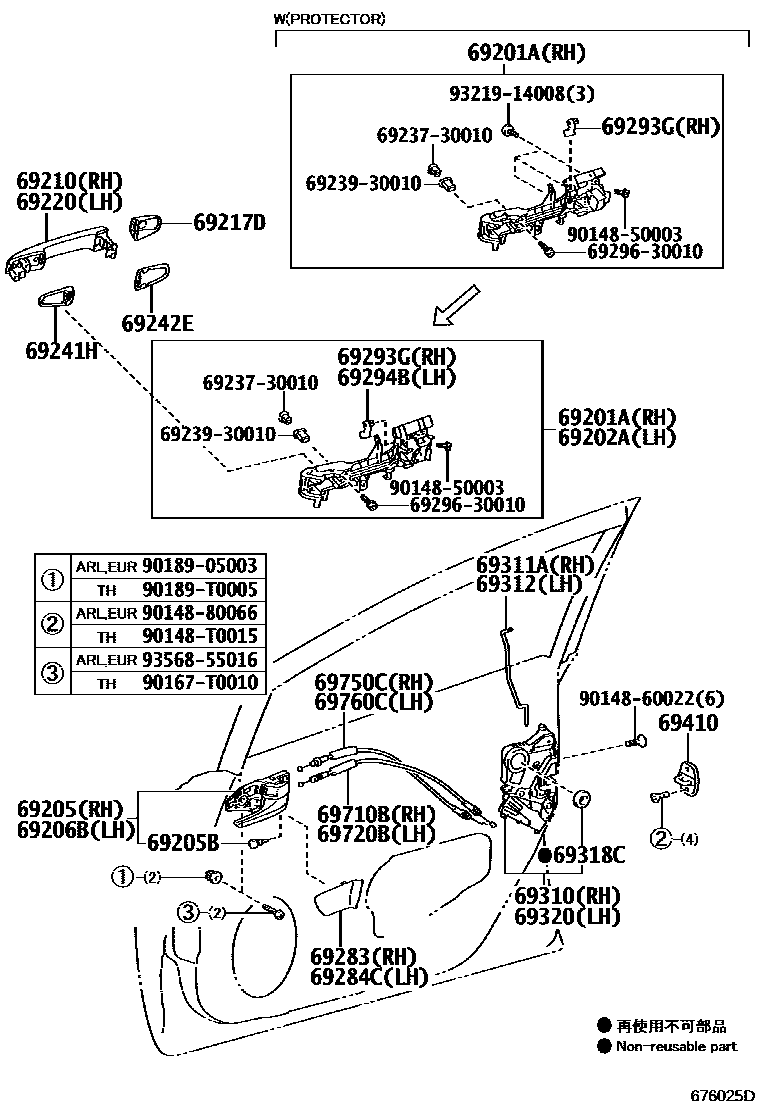

Toyota PRIUS — FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#,6#
BLACK,TRIM2#,6#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM1#,6#
BLACK,TRIM2#,6#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER ME.,1F7
SILVER ME.,1D4
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),BLACK,202
BLACK MC.,209
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BLACKISH RED MC.,3R0
SMART ENTRY-W(FRONT & BACK DOOR),DEEP RED M.M.,3R9
BEIGE ME.,4T8
DK.BLUE MC.,8S6
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),DK.BLUE MC.,8T5
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),ABYSS GRAY ME.,8V1
LIGHT BLUE MICA METALLIC,8U8
TRUE BLUE M.M.,8W1
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
WHITE PEARL CS.,070,DRIVER SIDE
SUPER WHITE 2,040,DRIVER SIDE
SILVER ME.,1F7,DRIVER SIDE
BLACK,202,DRIVER SIDE
RED M.M.,3R3,DRIVER SIDE
DEEP RED M.M.,3R9,DRIVER SIDE
BEIGE ME.,4T8,DRIVER SIDE
DK.BLUE MC.,8S6,DRIVER SIDE
DK.BLUE MC.,8T5,DRIVER SIDE
ABYSS GRAY ME.,8V1,DRIVER SIDE
LESS COLOR,DRIVER SIDE
SUPER WHITE 2,040,PASSENGER SIDE
WHITE PEARL CS.,070,PASSENGER SIDE
SILVER ME.,1F7,PASSENGER SIDE
SILVER ME.,1D4,PASSENGER SIDE
BLACK,202,PASSENGER SIDE
BLACK MC.,209,PASSENGER SIDE
ATTITUDE BLACK MC.,218,PASSENGER SIDE
RED M.M.,3R3,PASSENGER SIDE
BLACKISH RED MC.,3R0,PASSENGER SIDE
DEEP RED M.M.,3R9,PASSENGER SIDE
BEIGE ME.,4T8,PASSENGER SIDE
DK.BLUE MC.,8T5,PASSENGER SIDE
ABYSS GRAY ME.,8V1,PASSENGER SIDE
DK.BLUE MC.,8S6,PASSENGER SIDE
LIGHT BLUE MICA METALLIC,8U8,PASSENGER SIDE
TRUE BLUE M.M.,8W1,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER ME.,1F7
SILVER ME.,1D4
SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON),BLACK,202
BLACK MC.,209
ATTITUDE BLACK MC.,218
RED M.M.,3R3
BLACKISH RED MC.,3R0
SMART ENTRY-W(FRONT & BACK DOOR),DEEP RED M.M.,3R9
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),BEIGE ME.,4T8
DK.BLUE MC.,8S6
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),DK.BLUE MC.,8T5
WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),ABYSS GRAY ME.,8V1
LIGHT BLUE MICA METALLIC,8U8
TRUE BLUE M.M.,8W1
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
DK.GRAY,TRIM1#
BLACK,TRIM2#
AQUA,TRIM6#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
DK.GRAY,TRIM1#,6#
BLACK,TRIM2#
AQUA,TRIM6#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
90148T0015
main90148-T0015
90167T0010
main90167-T0010
9018905003
main90189-05003
90189T0005
main90189-T0005
9321914008
main93219-14008
9356855016
main93568-55016
36 parts on this diagram · 1 diagram in section
