Toyota PRIUS — FRONT AXLE HUB

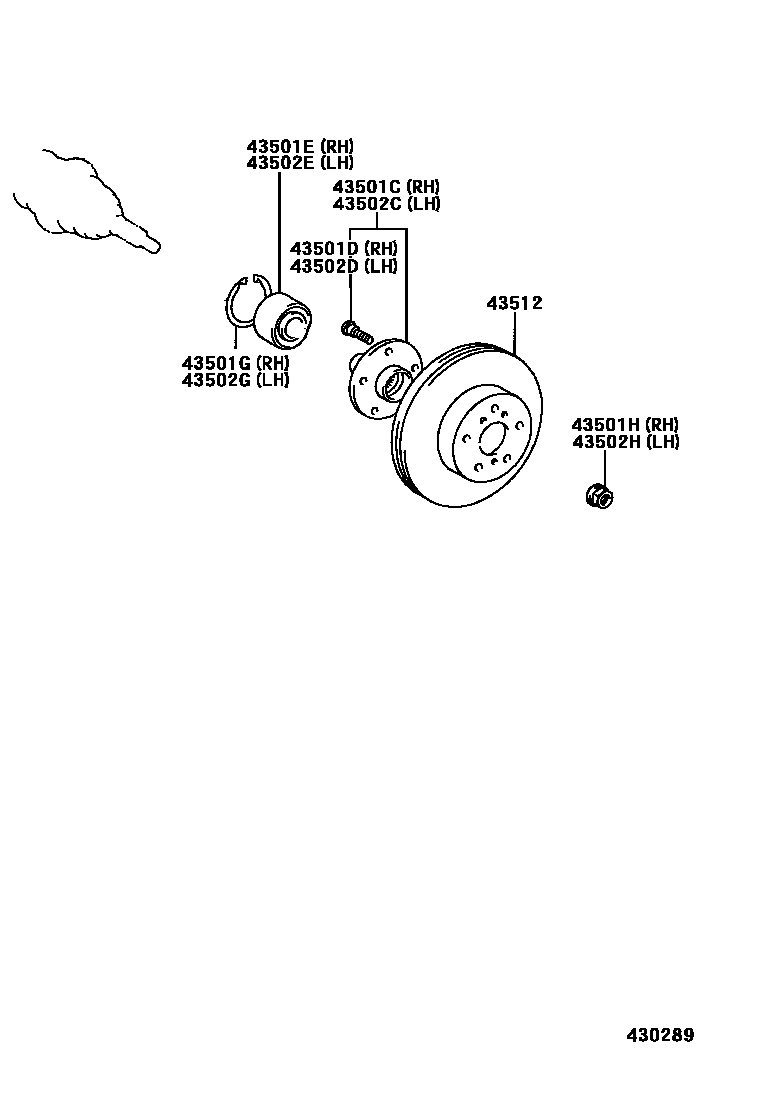

Parts diagram
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-12140i200104
main43502-47010i200005-200104
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02049×4i200005
43501EBEARING (FOR FRONT AXLE HUB RH)
main90363-40066i200005
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
main90521-79002i200005
43501HNUT (FOR FRONT AXLE SHAFT RH)
main90177-22001i200005
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-12140i200104
main43502-47010i200005-200104
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049×4i200005
43502EBEARING (FOR FRONT AXLE HUB LH)
main90363-40066i200005
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
main90521-79002i200005
43502HNUT (FOR FRONT AXLE SHAFT LH)
main90177-22001i200005
43512DISC, FRONT
main43512-47020×2i200005

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota PRIUS

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota PRIUS. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH), NUT (FOR FRONT AXLE SHAFT RH).
