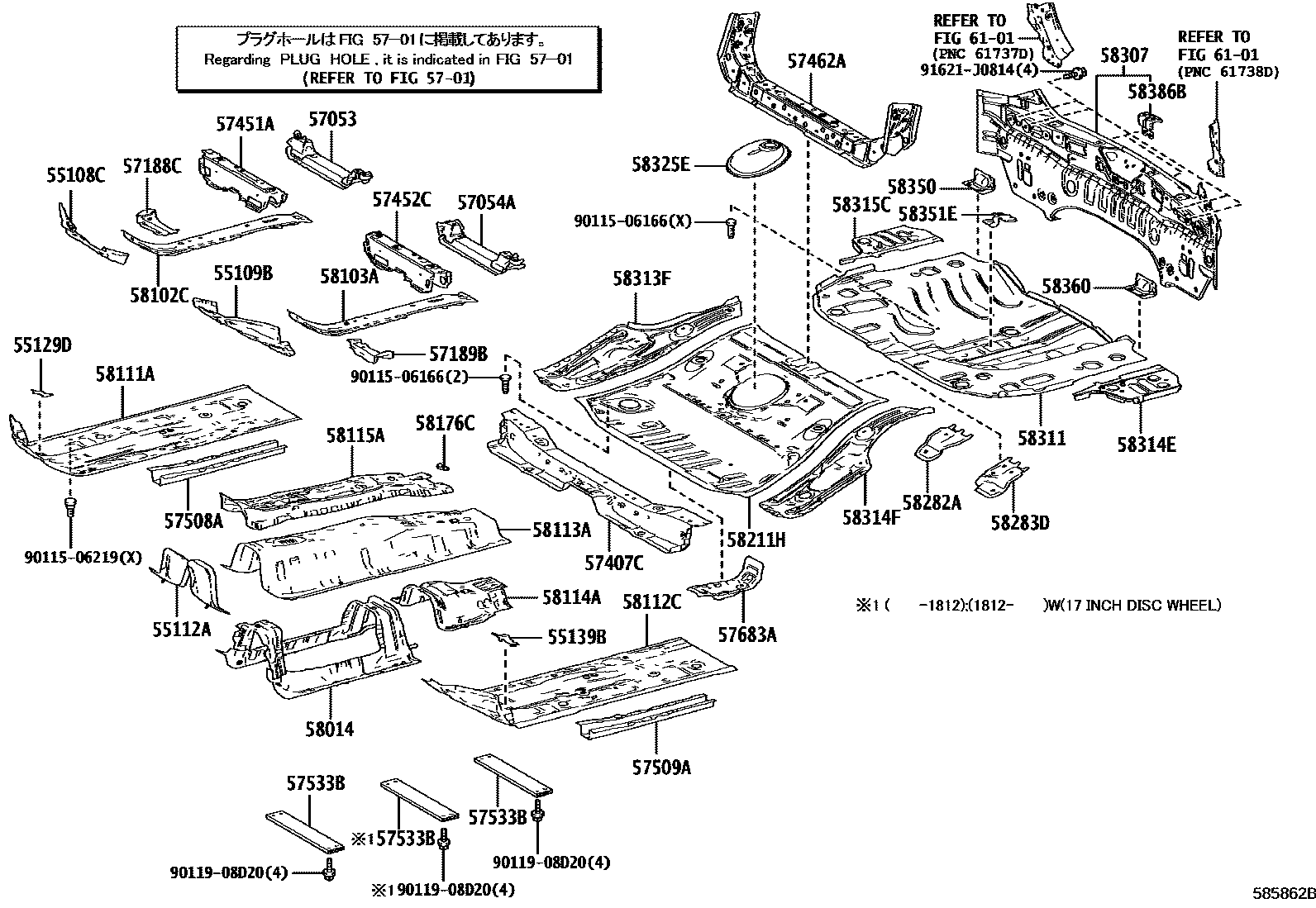

Toyota PRIUS — FLOOR PAN & LOWER BACK PANEL
55108CBRACE SUB-ASSY, DASH TO FRAME, RH
55109BBRACE SUB-ASSY, DASH TO FRAME, LH
55112APANEL, DASH, NO.2
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57462AMEMBER, CENTER FLOOR CROSS, NO.2
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57533BBRACE, FRONT FLOOR, CENTER
57683ABRACKET, FUEL TANK MOUNTING, NO.1
58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58102CREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH
58103AREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58115AREINFORCEMENT, FRONT FLOOR PANEL
58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2
58211HPAN, CENTER FLOOR
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314EEXTENSION, REAR FLOOR SIDE PANEL, LH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58325ECOVER, REAR FLOOR SERVICE HOLE
58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58351EBRACKET, SPARE WHEEL CLAMP
58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH
58386BBRACKET, REAR BUMPER COVER, NO.2
6101
9011506166
main90115-06166
9011506219
main90115-06219
9011908D20
main90119-08D20
91621J0814
main91621-J0814
46 parts on this diagram · 2 diagrams in section
