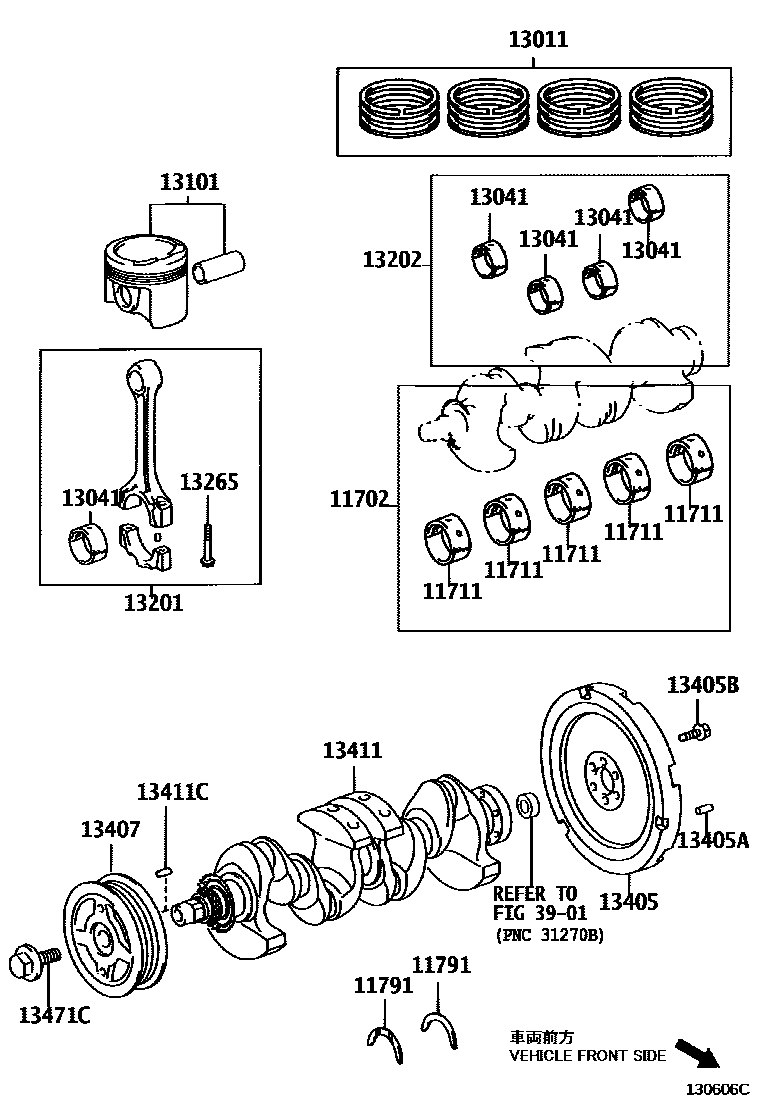

Toyota PRIUS — CRANKSHAFT & PISTON

11702BEARING SET, CRANKSHAFT

main11704-21031i200511-200903

U/S 0.25

main11704-21040i200308-200408

U/S 0.25

11711BEARING, CRANKSHAFT

main11701-21031-01×5i200408-200511

MARK1,REFER REPAIR MANUAL

main11701-21031-02×5i200511-200903

MARK2,REFER REPAIR MANUAL

main11701-21031-03×5i200511-200903

MARK3,REFER REPAIR MANUAL

main11701-21031-04×5i200408-200511

MARK4,REFER REPAIR MANUAL

main11701-21040-01×5i200308-200408

MARK1,REFER REPAIR MANUAL

main11701-21040-02×5i200308-200408

MARK2,REFER REPAIR MANUAL

main11701-21040-03×5i200308-200408

MARK3,REFER REPAIR MANUAL

main11701-21040-04×5i200308-200408

MARK4,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020×2i200308-200408

STD

main11791-37010×2i200408-200511

STD

main11792-21010×2i200308-200403

O/S 0.125

main11792-22020×2i200403-200511

O/S 0.125

main11793-21010×2i200308-200403

O/S 0.25

main11793-22020×2i200403-200511

O/S 0.25

13011RING SET, PISTON

main13011-21100i200308-200511

STD

13041BEARING, CONNECTING ROD

main13041-21022-01×4i200408-200511

MARK1,REFER REPAIR MANUAL

main13041-21022-02×4i200511-200903

MARK2,REFER REPAIR MANUAL

main13041-21022-03×4i200408-200511

MARK3,REFER REPAIR MANUAL

main13041-21030-01×4i200308-200309

MARK 1,REFER REPAIR MANUAL

main13041-21030-02×4i200308-200309

MARK 2,REFER REPAIR MANUAL

main13041-21030-03×4i200308-200309

MARK 3,REFER REPAIR MANUAL

main13041-21031-01×4i200309-200408

MARK 1,REFER REPAIR MANUAL

main13041-21031-02×4i200309-200408

MARK2,REFER REPAIR MANUAL

main13041-21031-03×4i200309-200408

MARK 3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-21110×4i200308-200511

STD

13201ROD SUB-ASSY, CONNECTING

main13201-29095×4i200308-200403

main13201-29425×4i200403-200408

main13201-29735×4i200408-200511

13202BEARING SET, CONNECTING ROD

main13204-21022i200408-200511

U/S 0.25

main13204-21030i200308-200309

U/S 0.25

main13204-21031i200309-200408

U/S 0.25

13265BOLT, CONNECTING ROD

main13265-21020×8i200511-200903

13405FLYWHEEL SUB-ASSY

main13451-21070i200308-200511

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i200308-200511

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90913-01024×6i200308-200511

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21040i200308-200511

13411CRANKSHAFT

main13401-21040i200308-200511

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90254-03025i200308-200511

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i200308-200511

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

17 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota PRIUS

This section contains 17 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota PRIUS. Key components include: BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD.
