Toyota PRIUS — COWL PANEL & WINDSHIELD GLASS

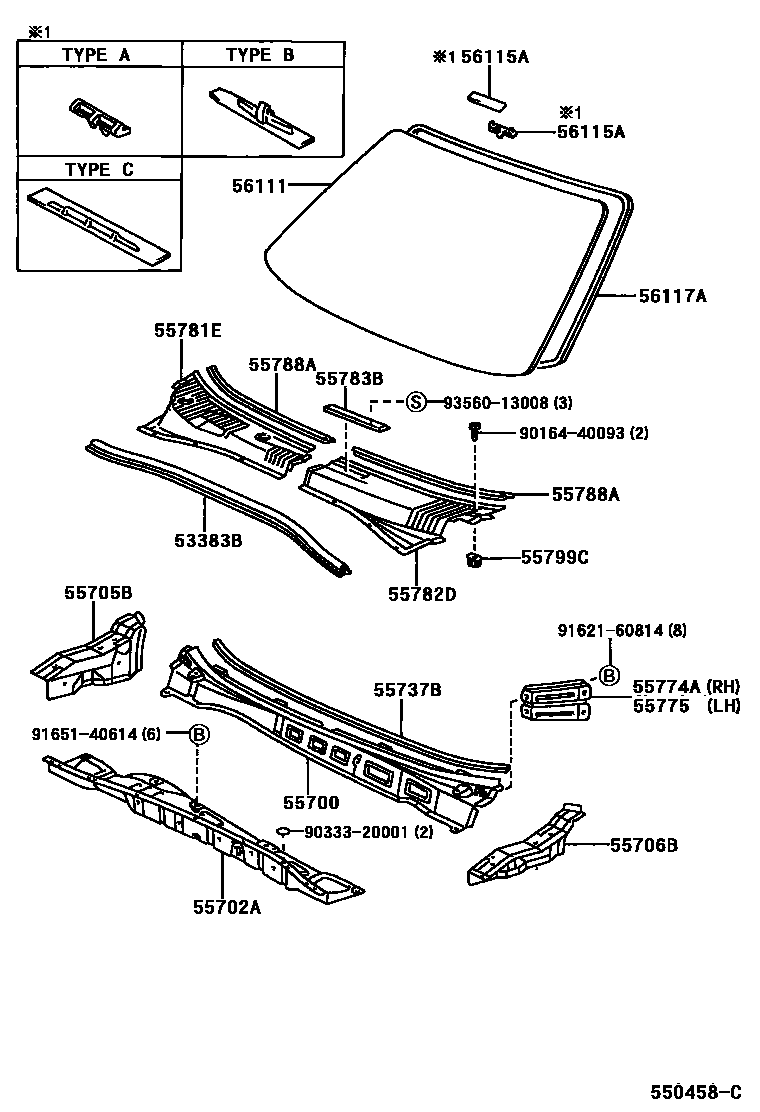

Parts diagram

53383BSEAL, HOOD TO COWL TOP

main53383-47010i200005

55700PANEL ASSY, FRONT

main55700-47020i200005

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-47020i200005

main55702-47030i200005

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-47010i200005

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-47010i200005

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-47010i200005

55774ABRACKET, COWL TOP INNER TO PILLAR BRACE, RH

main55774-47010i200005

55775BRACKET, COWL TOP INNER TO PILLAR BRACE, LH

main55775-47010i200005

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55781-47010i200005

main55781-47030i200005

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-47020i200005

main55782-47030i200005

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-47010i200005

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-47010i200005

RH

main55789-47010i200005

LH

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-47010i200005

56111GLASS, WINDSHIELD

main56111-47010i200005

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010i200005

TYPE A:REFER TO ILLUSTRATION

main56115-33030i200005

TYPE B:REFER TO ILLUSTRATION

main56116-22050i200005

TYPE C:REFER TO ILLUSTRATION

56117ADAM, WINDOW GLASS ADHESIVE

main56117-47010i200005

9016440093

main90164-40093

9033320001

main90333-20001

9162160814

main91621-60814

9165140614

main91651-40614

9356013008

main93560-13008

21 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota PRIUS

This section contains 21 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota PRIUS. Key components include: SEAL, HOOD TO COWL TOP, PANEL ASSY, FRONT, PANEL SUB-ASSY, COWL TOP, OUTER FRONT, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH.
