Toyota PRIUS — CONSOLE BOX & BRACKET

0001 1 0002 1 0004 1 0005 1

55388CBRACKET, CONSOLE MOUNTING, RH

main55388-42010iZVW30..LHD200904-201112

main55389-42020iZVW30..RHD..(ARL,EUR)200904-201112

55389ABRACKET, CONSOLE MOUNTING, LH

main55388-42020iZVW30..TH201204

main55389-12040iZVW30..LHD201112

55448DCUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1

main55448-47070×2iZVW30..ARL,EUR200904-201112

55448ECUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1

main55448-47010iZVW30..RHD200904-200907

main55448-47050iZVW30..LHD200904-200907

55449FCUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2

main55449-47020iZVW30..RHD200904-200907

main55449-47030iZVW30..LHD200904-200907

55539ACOVER, SPARE SWITCH HOLE

main55539-28160-C0iZVW30..ARL,EUR200904-201112

BLACK,TYPE A:REFER ILLUST.

main55539-28170-C0iZVW30..ARL,EUR201301-201511

BLACK,TYPE B:REFER ILLUST.

main55539-47060iZVW30..TH201204-201304

TYPE B:REFER ILLUST.

58811HBOX, CONSOLE, RH

main58811-47010-B0iZVW30..ARL,EUR200904-201112

MD.GRAY,TRIM1#

main58811-47010-C0iZVW30..ARL,EUR201112-201511

BLACK,TRIM2#

main58811-47010-G0iZVW30..ARL,EUR201112-201511

AQUA,TRIM6#

58812CBOX, CONSOLE, LH

main58812-47010-B0iZVW30..ARL,EUR200904-201112

MD.GRAY,TRIM1#

main58812-47010-C0iZVW30..TH201204

BLACK,TRIM2#

main58812-47010-G0iZVW30..ARL,EUR201112-201511

AQUA,TRIM6#

58815BCARPET, CONSOLE BOX

main58815-47030iZVW30..ARL,EUR200904-201112

main58815-47050iZVW30..TH201204

58816BINSERT, CONSOLE BOX

main58816-47010-B0iZVW30..TH201012-201204

MD.GRAY,TRIM1#

main58816-47010-C0iZVW30..TH201204

BLACK,TRIM2#

main58816-47010-G0iZVW30..RHD..(ARL,EUR)200904-201112

AQUA,TRIM6#

main58816-47020-B0iZVW30..LHD200904-201112

MD.GRAY,TRIM1#

main58816-47020-C0iZVW30..LHD201112-201511

BLACK,TRIM2#

main58816-47020-G0iZVW30..LHD201112-201511

AQUA,TRIM6#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-47010-B0iZVW30..TH201012-201204

MD.GRAY,TRIM1#

main58817-47010-C0iZVW30..RHD..(ARL,EUR)201112-201511

BLACK,TRIM2#

main58817-47010-G0iZVW30..RHD..(ARL,EUR)200904-201112

AQUA,TRIM6#

main58817-47020-B0iZVW30..LHD200904-201112

MD.GRAY,TRIM1#

main58817-47020-C0iZVW30..LHD201112-201511

BLACK,TRIM2#

main58817-47020-G0iZVW30..LHD201112-201511

AQUA,TRIM6#

58818ACOVER, CONSOLE BOX, FR

main58818-47030-B0iZVW30..TH201012-201204

MD.GRAY,TRIM1#

main58818-47030-G0iZVW30..RHD..(ARL,EUR)200904-201112

AQUA,TRIM6#

main58818-47040-B0iZVW30..LHD200904-201112

MD.GRAY,TRIM1#

main58818-47040-G0iZVW30..LHD200904-201112

AQUA,TRIM6#

main58818-47070-C0iZVW30..RHD..(ARL,EUR)201112-201511

BLACK,TRIM2#

main58818-47070-G0iZVW30..RHD..(ARL,EUR)201112-201511

AQUA,TRIM6#

main58818-47080-C0iZVW30..LHD201112-201511

BLACK,TRIM2#

main58818-47080-G0iZVW30..LHD201112-201511

AQUA,TRIM6#

58821CPANEL, CONSOLE, UPPER

main58821-47020iZVW30..ARL,EUR200904-201112

58823BBOX, CONSOLE COMPARTMENT

main58823-47020-B0iZVW30..TH201012-201204

MD.GRAY,TRIM1#

main58823-47020-C0iZVW30..ARL,EUR201112-201511

BLACK,TRIM2#

main58823-47020-G0iZVW30..ARL,EUR201112-201511

AQUA,TRIM6#

58825APOCKET, CONSOLE BOX

58906APAD SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58906-47040-B2iZVW30..ARL,EUR201112-201204

GRAY,TRIM2#

main58906-47041-B2iZVW30..ARL,EUR201205-201211

GRAY,TRIM2#

main58906-47042-B2iZVW30..ARL,EUR201212-201511

GRAY,TRIM2#

main58906-47020-B1supersedes 58906-47010-B0iZVW30..ARL,EUR200904-201112

SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1#

main58906-47020-B2supersedes 58906-47042-G2iZVW30..ARL,EUR200904-201112

SEAT COVER MATERIAL-NATURAL LEATHER,MIST GRAY,TRIM6#

main58906-47050-C2supersedes 58906-47042-B2iZVW30..ARL201210-201511

EXPORT UPPER PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main58906-47050-G1iZVW30..EUR201112-201511

SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#

58910CBOX ASSY, CONSOLE, REAR

main58901-47190-B3iZVW30..ARL,EUR201112-201211

GRAY/BLACK,TRIM2#

main58901-47191-B3iZVW30..ARL,EUR201212-201511

GRAY/BLACK,TRIM2#

main58901-47110-B2supersedes 58901-47090-B2iZVW30200904-200911

SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1#

sub82390-47010

sub86190-48010

main58901-47110-B3supersedes 58901-47090-B3iZVW30200912-201011

SEAT COVER MATERIAL-NATURAL LEATHER,MIST GRAY,TRIM6#

sub82390-47010

sub86190-48010

main58901-47112-B2supersedes 58901-47092-B2iZVW30..ARL,EUR201011-201112

SEAT COVER MATERIAL-NATURAL LEATHER,MEDIUM GRAY,TRIM1#

main58901-47112-B3supersedes 58901-47092-B3iZVW30..ARL,EUR201011-201112

SEAT COVER MATERIAL-NATURAL LEATHER,MIST GRAY,TRIM6#

main58901-47200-C2supersedes 58901-47191-B3iZVW30..ARL201112-201210

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main58901-47200-G1iZVW30..ARL201112-201210

SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#

58911APANEL, BOX SIDE, NO.1

main58911-47030-B0iZVW30..TH201012-201204

MD.GRAY,TRIM1#

sub58911-47031

main58911-47030-G0iZVW30..ARL,EUR200904-201112

AQUA,TRIM6#

sub58911-47031

main58911-47050-C0iZVW30..ARL,EUR201112-201511

BLACK,TRIM2#

sub58911-47051

main58911-47050-G0iZVW30..ARL,EUR201112-201511

AQUA,TRIM6#

sub58911-47051

58912CPANEL, BOX SIDE, NO.2

main58912-47040-B0iZVW30..ARL,EUR200904-201112

MD.GRAY,TRIM1#

sub58912-47041

main58912-47040-G0iZVW30..ARL,EUR200904-201112

AQUA,TRIM6#

sub58912-47041

main58912-47060-C0iZVW30..ARL,EUR201112-201511

BLACK,TRIM2#

sub58912-47061

main58912-47060-G0iZVW30..ARL,EUR201112-201511

AQUA,TRIM6#

sub58912-47061

58915BCOVER, CONSOLE COMPARTMENT DOOR BOX, REAR

main58915-47010-B0iZVW30..ARL,EUR200904-201112

MD.GRAY,TRIM1#

main58915-47010-G0iZVW30..ARL,EUR200904-201112

AQUA,TRIM6#

main58915-47020-C0iZVW30..ARL,EUR201112-201511

BLACK,TRIM2#

main58915-47020-G0iZVW30..ARL,EUR201112-201511

AQUA,TRIM6#

58916MAT, BOX BOTTOM

main58916-47010-B0iZVW30..ARL,EUR200904-201112

GRAY,TRIM6#

main58916-47010-B1iZVW30..TH201012-201204

MD.GRAY,TRIM1#

main58916-47010-C1iZVW30..ARL,EUR201112-201511

BLACK,TRIM2#,6#

58923APANEL, CONSOLE REAR END

main58923-47020-B0iZVW30..TH201012-201204

MD.GRAY,TRIM1#

sub58923-47021

main58923-47020-G0iZVW30..ARL,EUR200904-201112

AQUA,TRIM6#

sub58923-47021

main58923-47030-C0iZVW30..ARL,EUR201112-201511

BLACK,TRIM2#

sub58923-47031

main58923-47030-G0iZVW30..ARL,EUR201112-201511

AQUA,TRIM6#

sub58923-47031

58925APOCKET, CONSOLE BOX, REAR

main58925-47010iZVW30..ARL,EUR200904-201112

58966AINSERT, CONSOLE COMPARTMENT DOOR, NO.1

main58966-47010-B0iZVW30..ARL,EUR200904-201112

MD.GRAY,TRIM1#

main58966-47010-G0iZVW30..ARL,EUR200904-201112

AQUA,TRIM6#

main58966-47020-C0iZVW30..TH201204

BLACK,TRIM2#

main58966-47020-G0iZVW30..ARL,EUR201112-201511

AQUA,TRIM6#

58969CINSERT, CONSOLE COMPARTMENT DOOR, NO.2

main58969-47010-B0iZVW30..ARL,EUR200904-201112

MD.GRAY,TRIM1#

main58969-47010-G0iZVW30..ARL,EUR200904-201112

AQUA,TRIM6#

main58969-47020-C0iZVW30..ARL,EUR201112-201511

BLACK,TRIM2#

main58969-47020-G0iZVW30..ARL,EUR201112-201511

AQUA,TRIM6#

58994ABRACKET, CONSOLE BOX MOUNTING, NO.4

main58994-47010iZVW30..ARL,EUR200904-201112

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-47020iZVW30..ARL,EUR200904-201112

8202

8401

8601

9011906951

main90119-06951

9015960303

main90159-60303

9017906323

main90179-06323

9046707164

main90467-07164

9155380816

main91553-80816

9167380616

main91673-80616

9354054010

main93540-54010

9356054012

main93560-54012

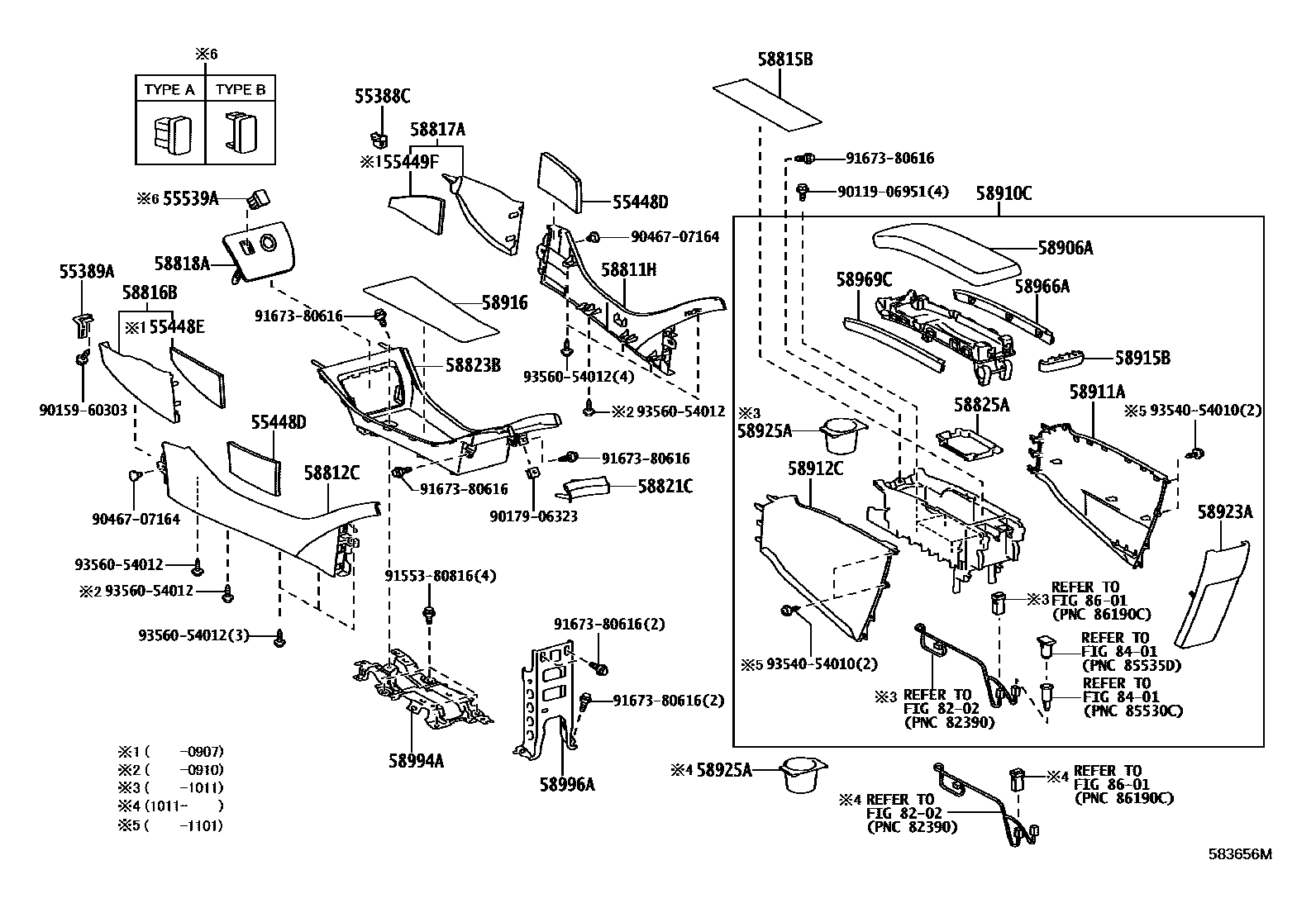

38 parts on this diagram · 4 diagrams in section
