Toyota PRIUS — CLEARANCE & BACK SONAR

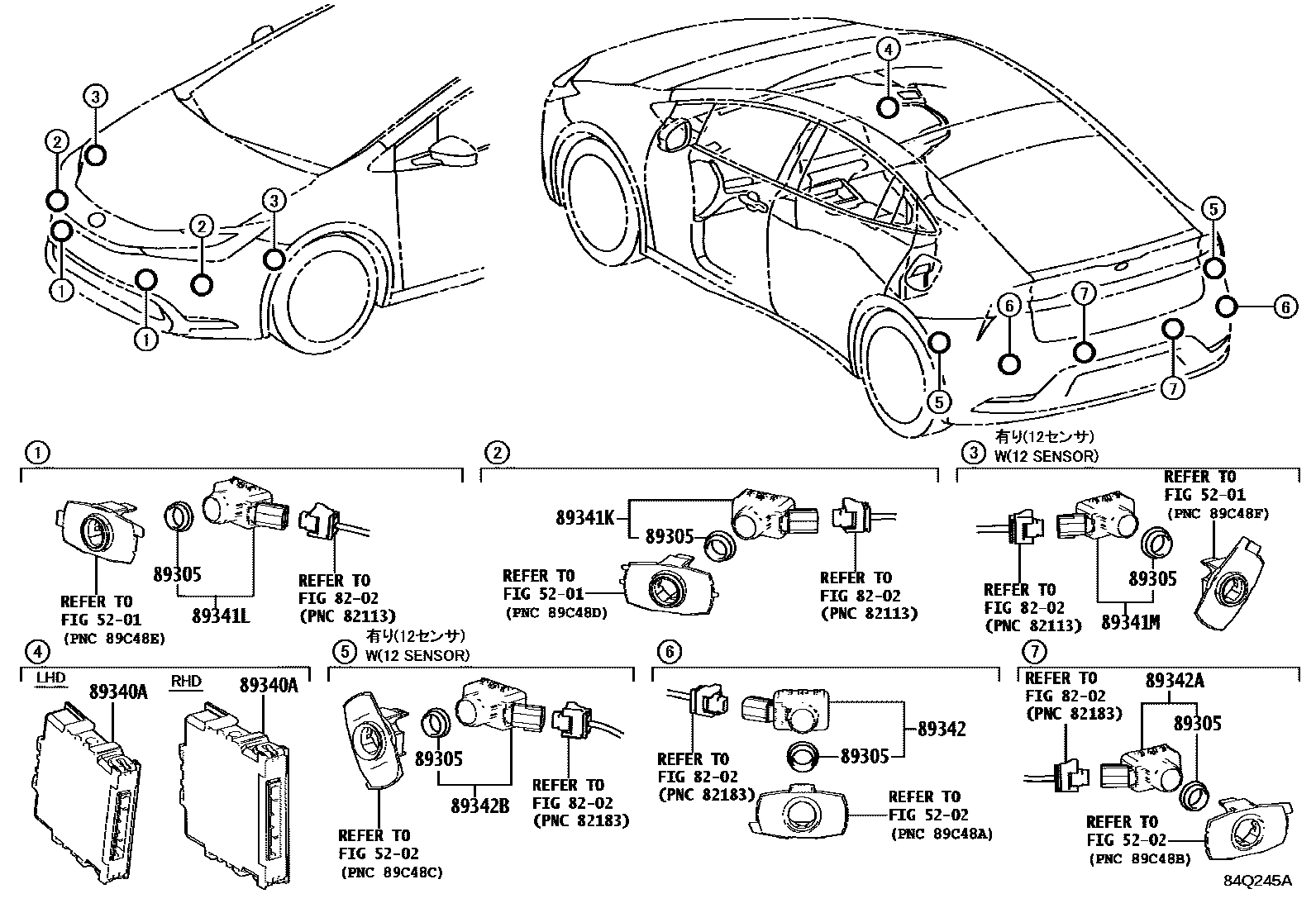

Parts diagram
5201FRONT BUMPER & BUMPER STAY
→ Go to FIG 52-01
5202REAR BUMPER & BUMPER STAY
→ Go to FIG 52-02
8202WIRING & CLAMP
→ Go to FIG 82-02
89305CUSHION SET, ULTRASONIC SENSOR
main89305-52010i202212
PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE); PARKING SUPPORT ALT/BRK-WITHOUT
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-47160i202212
*614; PARKING SUPPORT ALT/BRK-WITHOUT,*614
main89340-47110i202303-202501
TAIWAN SPEC&BACK MONITOR-WITHOUT&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST),*614; TAIWAN SPEC&BACK MONITOR-WITHOUT&REAR & REAR SIDE MONITOR-WITHOUT,*614
main89340-47170i202303-202501
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
main89341-K0060-10×2i202212
ASH,1M2; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),ASH,1M2
main89341-K0060-A4×2i202212
PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089
main89341-K0060-B5×2i202212
PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),SILVER ME.,1L0; SILVER ME.,1L0
main89341-K0060-C5×2i202212
ATTITUDE BLACK MC.,218; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),ATTITUDE BLACK MC.,218
main89341-K0060-D4×2i202212
EMOTIONAL RED 2,3U5; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),EMOTIONAL RED 2,3U5
main89341-K0060-F1×2i202303
MUSTARD,2XV ,5C5
main89341-K0060-R3×2i202212
DK.BLUE,8Q4; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),DK.BLUE,8Q4
89341LSENSOR, ULTRASONIC, FRONT CENTER
main89341-K0060-10×2i202303
ASH,1M2 ,2XU
main89341-K0060-A4×2i202212
PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089
main89341-K0060-B5×2i202212
PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),SILVER ME.,1L0; SILVER ME.,1L0
main89341-K0060-C5×2i202212
ATTITUDE BLACK MC.,218; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),ATTITUDE BLACK MC.,218
main89341-K0060-D4×2i202212
EMOTIONAL RED 2,3U5; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),EMOTIONAL RED 2,3U5
main89341-K0060-F1×2i202212
MUSTARD,5C5; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),MUSTARD,5C5
main89341-K0060-R3×2i202212
DK.BLUE,8Q4; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),DK.BLUE,8Q4
89341MSENSOR, ULTRASONIC, FRONT SIDE
main89341-K0070-A7×2i202501
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),PLATINUM WHITE PEARL MC.,089
main89341-K0070-B3×2i202501
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1L0
main89341-K0070-C5×2i202501
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ATTITUDE BLACK MC.,218
main89341-K0070-D4×2i202501
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),EMOTIONAL RED 2,2SC ,3U5
main89341-K0070-F1×2i202501
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),MUSTARD,2XV ,5C5
main89341-K0070-J9×2i202501
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK.BLUE,8Q4
main89341-K0070-P6×2i202501
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ASH,1M2 ,2XU
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-K0060-10×2i202212
ASH,1M2; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),ASH,1M2
main89341-K0060-A4×2i202212
PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089
main89341-K0060-B5×2i202212
PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),SILVER ME.,1L0; SILVER ME.,1L0
main89341-K0060-C5×2i202212
ATTITUDE BLACK MC.,218; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),ATTITUDE BLACK MC.,218
main89341-K0060-D4×2i202303
EMOTIONAL RED 2,2SC ,3U5
main89341-K0060-F1×2i202212
MUSTARD,5C5; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),MUSTARD,5C5
main89341-K0060-R3×2i202212
DK.BLUE,8Q4; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),DK.BLUE,8Q4
89342ASENSOR, ULTRASONIC, REAR CENTER
main89341-K0060-10×2i202212
ASH,1M2; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),ASH,1M2
main89341-K0060-A4×2i202212
PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089
main89341-K0060-B5×2i202212
PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),SILVER ME.,1L0; SILVER ME.,1L0
main89341-K0060-C5×2i202212
ATTITUDE BLACK MC.,218; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),ATTITUDE BLACK MC.,218
main89341-K0060-D4×2i202212
EMOTIONAL RED 2,3U5; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),EMOTIONAL RED 2,3U5
main89341-K0060-F1×2i202212
MUSTARD,5C5; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),MUSTARD,5C5
main89341-K0060-R3×2i202212
DK.BLUE,8Q4; PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE),DK.BLUE,8Q4
89342BSENSOR, ULTRASONIC, REAR SIDE
main89341-K0070-A7×2i202303-202501
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PLATINUM WHITE PEARL MC.,089; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PLATINUM WHITE PEARL MC.,089
main89341-K0070-B3×2i202501
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),SILVER ME.,1L0
main89341-K0070-C5×2i202303-202501
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),ATTITUDE BLACK MC.,218; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),ATTITUDE BLACK MC.,218
main89341-K0070-D4×2i202303-202501
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),EMOTIONAL RED 2,2SC ,3U5; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),EMOTIONAL RED 2,2SC ,3U5
main89341-K0070-F1×2i202303-202501
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),MUSTARD,2XV ,5C5; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),MUSTARD,2XV ,5C5
main89341-K0070-J9×2i202303-202501
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),DK.BLUE,8Q4; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),DK.BLUE,8Q4
main89341-K0070-P6×2i202303-202501
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),ASH,1M2 ,2XU; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),ASH,1M2 ,2XU

11 parts on this diagram · 1 diagram in section

CLEARANCE & BACK SONAR for Toyota PRIUS

This section contains 11 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota PRIUS. Key components include: FRONT BUMPER & BUMPER STAY, REAR BUMPER & BUMPER STAY, WIRING & CLAMP, CUSHION SET, ULTRASONIC SENSOR, COMPUTER ASSY, CLEARANCE WARNING.
