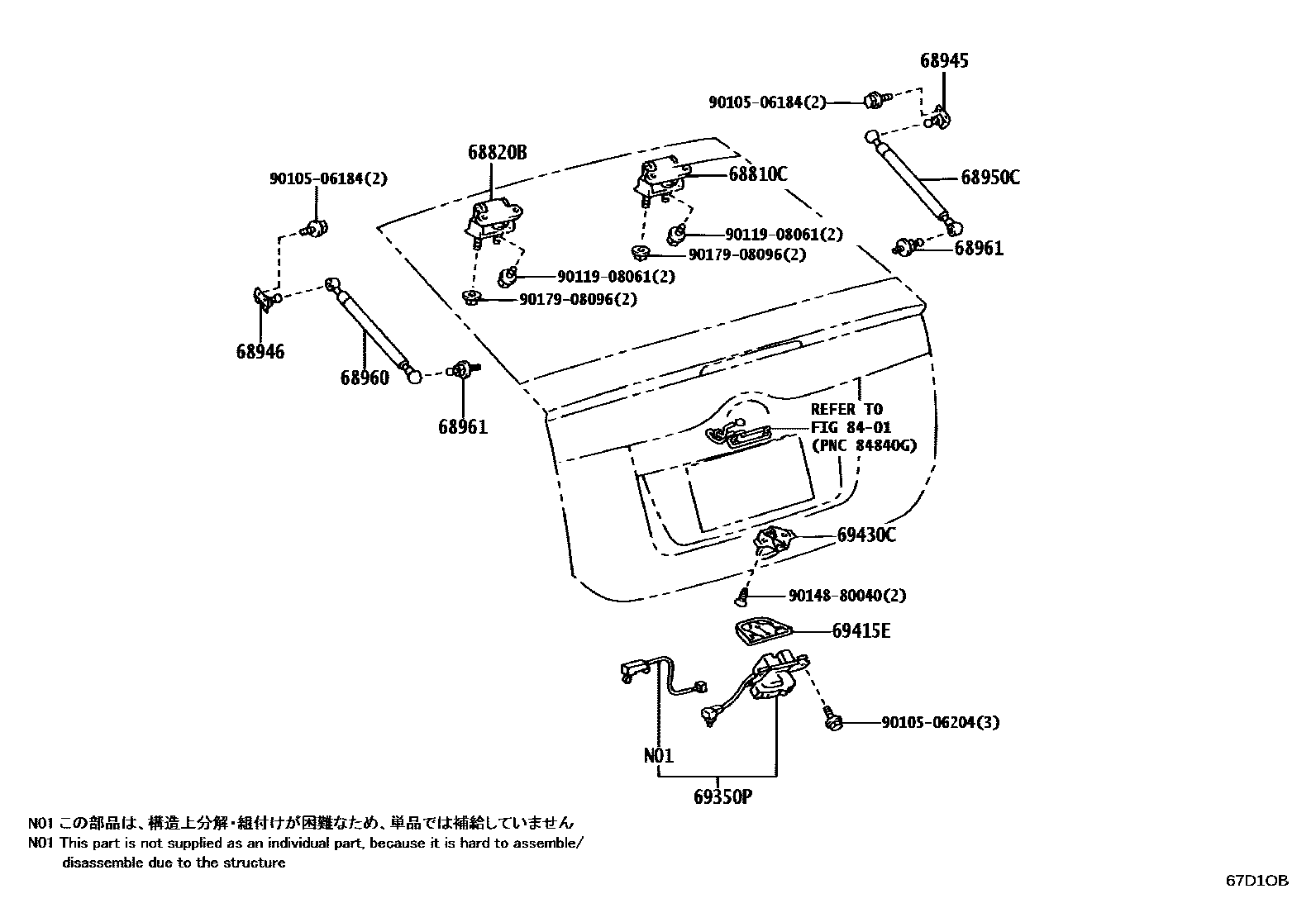

Toyota PRIUS — BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-47010i200308-200511

68820BHINGE ASSY, BACK DOOR, LH

main68810-47010i200308-200511

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-12030i200308-200511

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-12030i200308-200511

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W202i200408-200504

HONG KONG SPEC; SINGAPORE SPEC

main68950-0W250i200308-200401

main68950-0W251i200401-200502

main68950-0W252i200503-200511

main68950-0W430i200511-200705

main68950-0W431i200706-200903

main68950-0W200supersedes 68950-0W210i200308-200401

HONG KONG SPEC; SINGAPORE SPEC; WITH(INTERMITTENT REAR WIPER)

main68950-0W201i200401-200408

HONG KONG SPEC; SINGAPORE SPEC; WITH(INTERMITTENT REAR WIPER)

main68950-0W203i200511-200706

HONG KONG SPEC; SINGAPORE SPEC; TAIWAN SPEC

main68950-0W204i200707-200903

HONG KONG SPEC; SINGAPORE SPEC; TAIWAN SPEC

68960STAY ASSY, BACK DOOR, LH

main68960-0W192i200408-200504

HONG KONG SPEC; SINGAPORE SPEC

main68960-0W240i200308-200401

main68960-0W241i200401-200502

main68960-0W242i200503-200511

main68960-0W430i200511-200705

main68960-0W431i200706-200903

main68960-0W190supersedes 68960-0W200i200308-200401

HONG KONG SPEC; SINGAPORE SPEC; WITH(INTERMITTENT REAR WIPER)

main68960-0W191supersedes 68960-0W201i200401-200408

HONG KONG SPEC; SINGAPORE SPEC; WITH(INTERMITTENT REAR WIPER)

main68960-0W193i200511-200706

HONG KONG SPEC; SINGAPORE SPEC; TAIWAN SPEC

main68960-0W194i200707-200903

HONG KONG SPEC; SINGAPORE SPEC; TAIWAN SPEC

68961BOLT, BACK DOOR STAY

main68961-20140×2i200511-200903

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-47010i200511-200903

69415ECOVER, BACK DOOR LOCK STRIKER

main69415-47010i200308-200511

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-53010i200308-200511

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506184

main90105-06184

9010506204

main90105-06204

9011908061

main90119-08061

9014880040

main90148-80040

9017908096

main90179-08096

16 parts on this diagram · 1 diagram in section

BACK DOOR LOCK & HANDLE for Toyota PRIUS

This section contains 16 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota PRIUS. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BRACKET, BACK DOOR DAMPER STAY, UPPER LH, STAY ASSY, BACK DOOR, RH.
