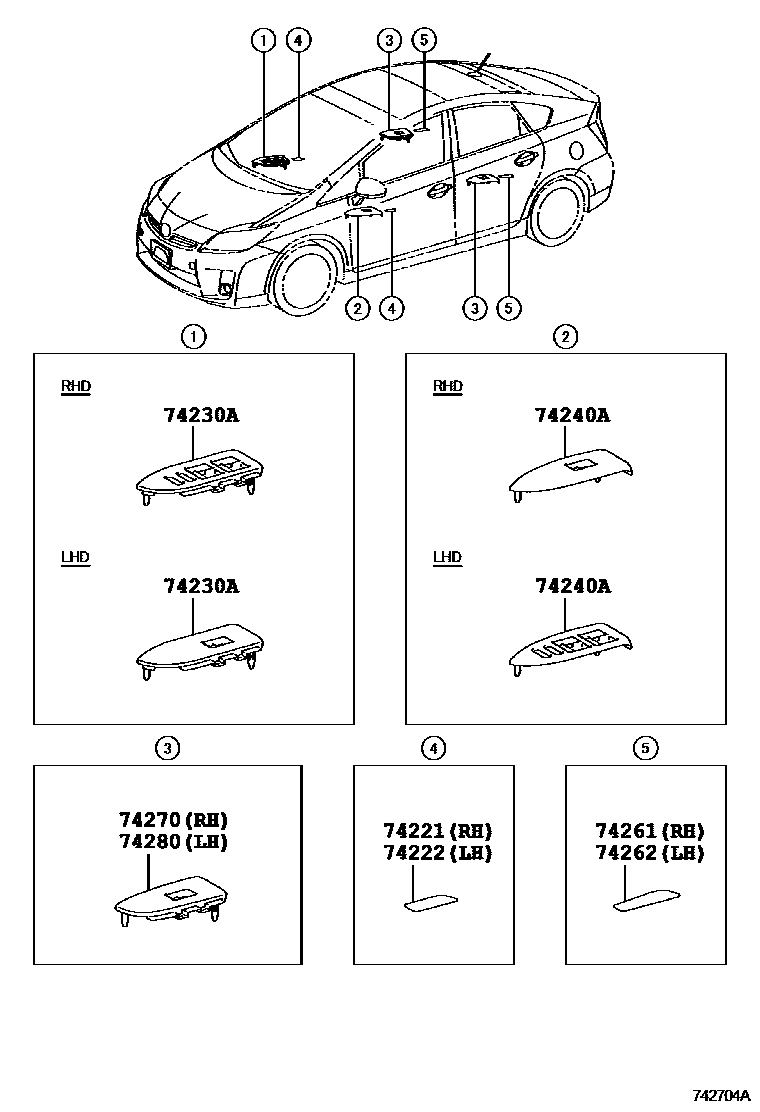

Toyota PRIUS — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74221COVER, DOOR ARMREST, RH

main74221-47020iZVW30..TH200904-201511

74222COVER, DOOR ARMREST, LH

main74221-47020iZVW30..TH200904-201511

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74231-47100iZVW30..RHD..(ARL,EUR)200904-201511

main74231-47110iZVW30..LHD200904-201511

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74232-47080iZVW30..RHD..(ARL,EUR)200904-201511

main74232-47090iZVW30..LHD200904-201511

74261COVER, REAR DOOR ARMREST, RH

main74261-47020iZVW30..TH200904-201511

74262COVER, REAR DOOR ARMREST, LH

main74261-47020iZVW30..ARL,EUR200904-201511

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74271-47060iZVW30..TH200904-201511

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74272-47060iZVW30..TH200904-201511

8 parts on this diagram · 2 diagrams in section
