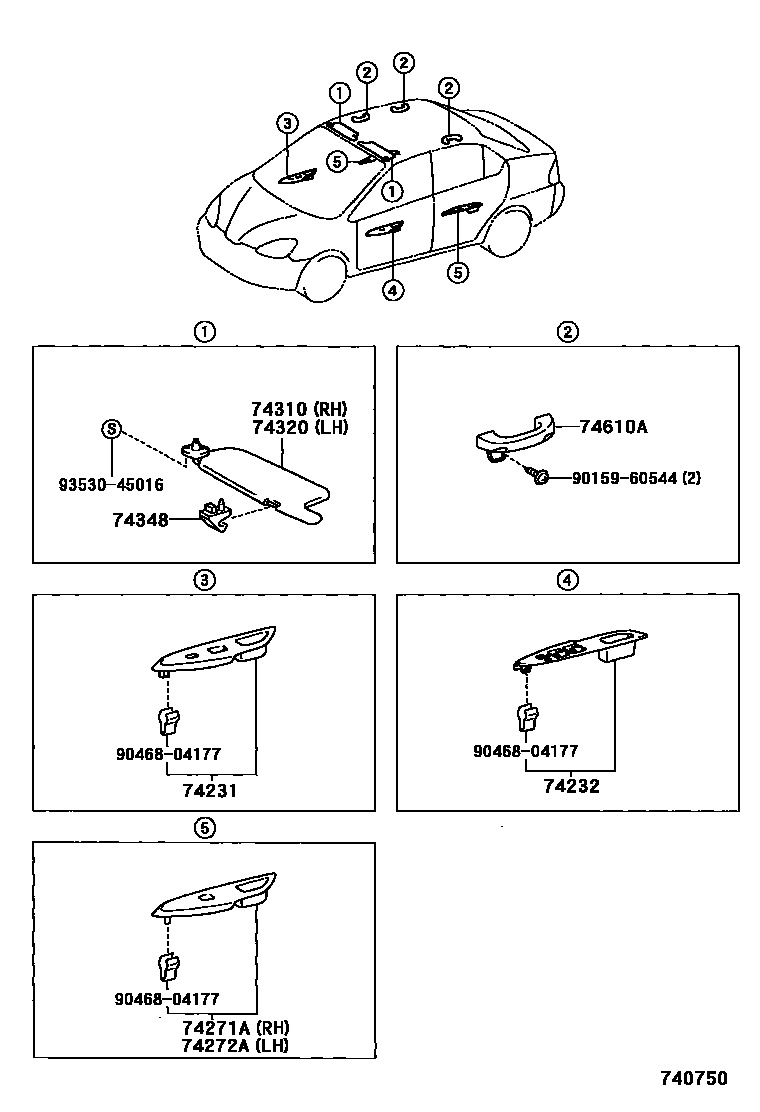

Toyota PRIUS — ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-47010-B0iNHW11..RHD200005

AMETHYST,TRIM9#

main74231-47040-B0iNHW11..LHD200005

AMETHYST,TRIM9#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-47010-B0iNHW11..RHD200005

AMETHYST,TRIM9#

main74232-47030-B0iNHW11..LHD200005

AMETHYST,TRIM9#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-47010-B0iNHW11200005

AMETHYST,TRIM9#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-47010-B0iNHW11200005

AMETHYST,TRIM9#

74310VISOR ASSY, RH

main74310-47040-B0iNHW11..LHD200005

LT. AMETHYST,TRIM9#

main74310-47050-B0iNHW11..RHD..EUR200005

LT. AMETHYST,TRIM9#

main74310-47070-B0iNHW11..ARL200108

LT. AMETHYST,TRIM9#

74320VISOR ASSY, LH

main74320-47040-B0iNHW11..LHD200005

LT. AMETHYST,TRIM9#

main74320-47050-B0iNHW11..RHD..EUR200005

LT. AMETHYST,TRIM9#

main74320-47060-B0iNHW11..ARL200108

LT. AMETHYST,TRIM9#

74348HOLDER, VISOR

main74348-12030-B1×2iNHW11200005

MD.CHARCOAL,TRIM9#

74610AGRIP SUB-ASSY, ASSIST

main74611-20030-B6×3iNHW11200005

MD.CHARCOAL,TRIM9#

sub74610-12090

9015960544

main90159-60544

9046804177

main90468-04177

9353045016

main93530-45016

11 parts on this diagram · 1 diagram in section
