Toyota PRIUS — ANTENNA
82818QPROTECTOR, WIRING HARNESS, NO.1
82818RPROTECTOR, WIRING HARNESS, NO.2
8504REAR WASHER
86077COVER KIT, ANTENNA
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
FROSTY GREEN MC.,781
DK.BLUE M.M.,8W7
BLUE ME.,8X7
86101CORD SUB-ASSY, ANTENNA
UAE SPEC&DECONTENT PACKAGE
DECONTENT PACKAGE
AUDIO-AUSTRALIA SPEC & AVN & *BT & USB & JBL
86101JCORD SUB-ASSY, ANTENNA, NO.2
AUDIO-AUSTRALIA SPEC & AVN & *BT & USB & JBL
MOON ROOF-WITH&AUDIO-AUSTRALIA SPEC & AVN & *BT & USB & JBL
86101QCORD SUB-ASSY, ANTENNA, NO.4
86101RCORD SUB-ASSY, ANTENNA, NO.5
AUDIO-AUSTRALIA SPEC & AVN & *BT & USB & JBL
86300BANTENNA ASSY, AMPLIFIER, NO.1
863C0ANTENNA ASSY, DIGITAL AUDIO BROADCASTING
AUDIO-AUSTRALIA SPEC & AVN & *BT & USB & JBL
86769HOUSING, ROOF ANTENNA
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
8271547880BRACKET,WIRING HARNESS CLAMP
main82715-47880
8614747040
main86147-47040
9011906915
main90119-06915
9011906A06
main90119-06A06
9017906274
main90179-06274

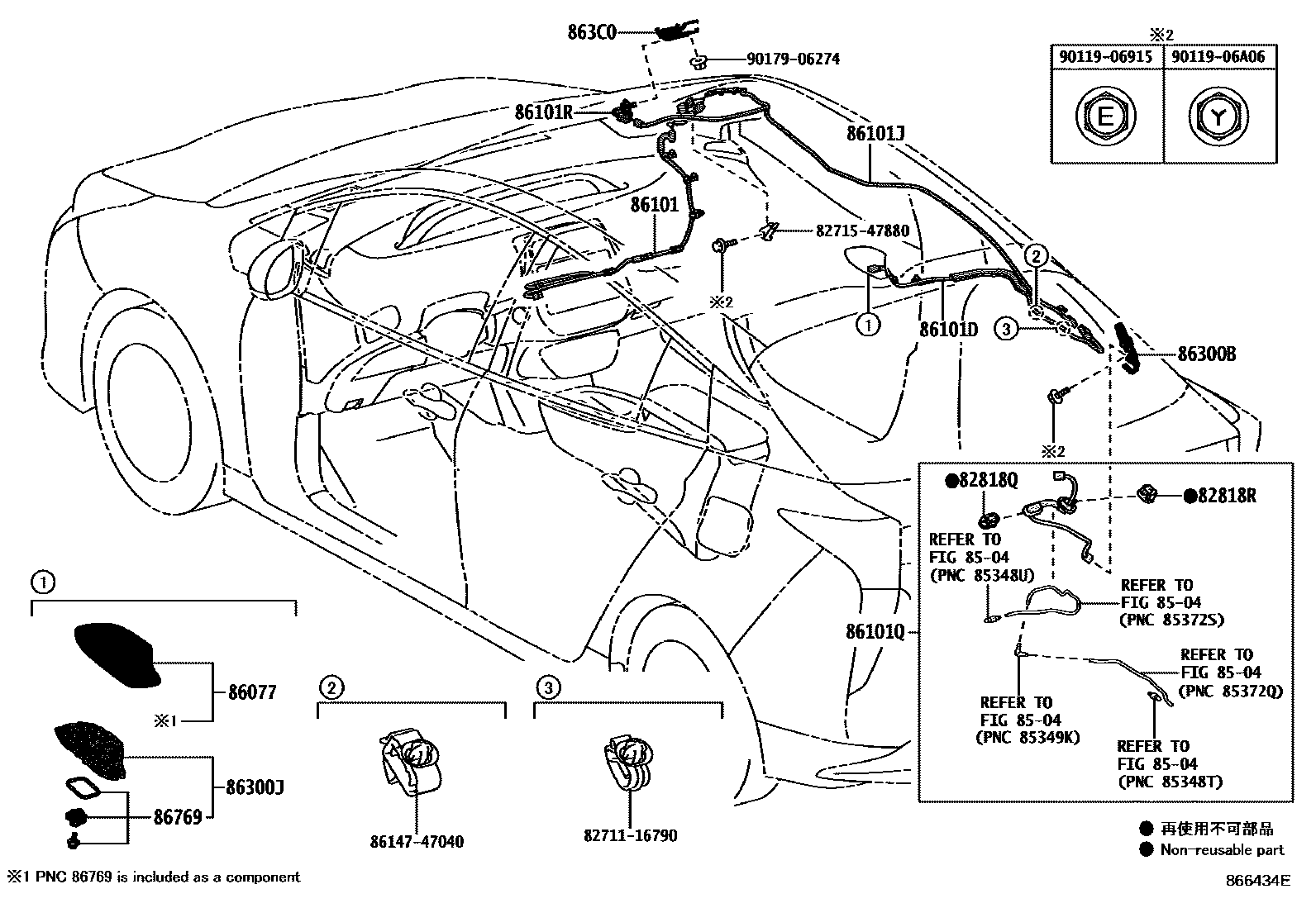

19 parts on this diagram · 1 diagram in section
ANTENNA for Toyota PRIUS
This section contains 19 genuine Toyota parts for the ANTENNA system of the Toyota PRIUS. Key components include: PROTECTOR, WIRING HARNESS, NO.1, PROTECTOR, WIRING HARNESS, NO.2, REAR WASHER, COVER KIT, ANTENNA, CORD SUB-ASSY, ANTENNA.
