Toyota PRIUS — ANTENNA

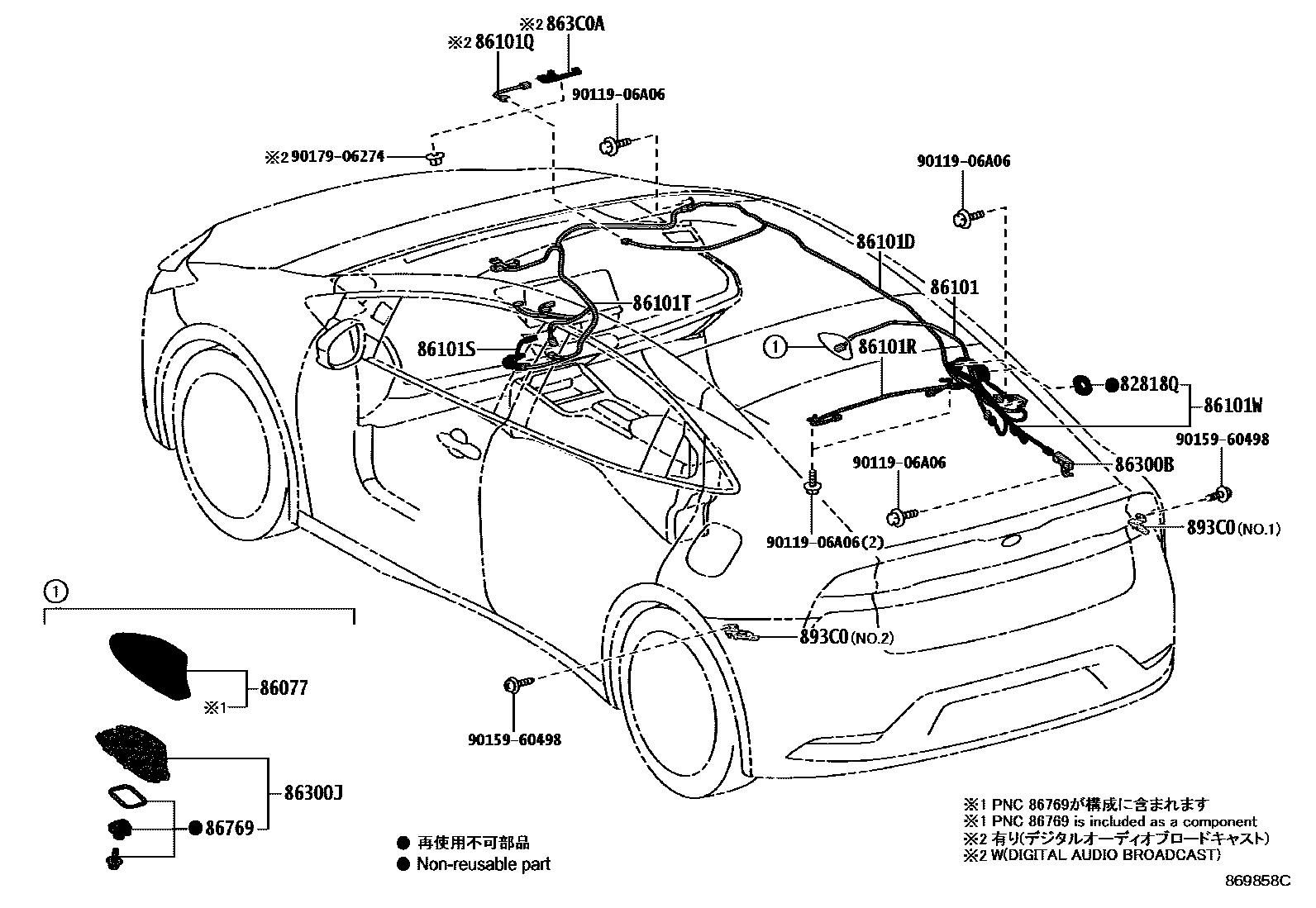

Parts diagram
82818QPROTECTOR, WIRING HARNESS, NO.1
main82817-47Z50×2i202212
86077COVER KIT, ANTENNA
main86077-47030-C0i202212
ATTITUDE BLACK MC.,089 ,1L0 ,1M2 ,218 ,3U5 ,5C5 ,8Q4
main86077-K0010-C3i202303
ATTITUDE BLACK MC.,089 ,1L0 ,1M2 ,218 ,2SC ,2XU ,2XV ,3U5 ,5C5 ,8Q4
86101CORD SUB-ASSY, ANTENNA
main86101-47W10i202303
main86101-47W20i202212
main86101-47J90i202212
MEXICO PACKAGE
86101DCORD SUB-ASSY, ANTENNA, NO.3
main86101-47W70i202303
main86101-47W90i202212
main86101-4E020i202303
MOON ROOF-WITH(PANORAMA ROOF)
main86101-4E030i202212
MEXICO PACKAGE
86101QCORD SUB-ASSY, ANTENNA, NO.4
main86101-47V90i202303
86101RCORD SUB-ASSY, ANTENNA, NO.5
main86101-47Z40i202212
main86101-47Z50i202303
UNITED KINGDOM SPEC
86101SCORD SUB-ASSY, ANTENNA
main86101-4E060i202303
TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC
86101TCORD SUB-ASSY, ANTENNA
main86101-47X50i202303
main86101-47X60i202212
main86101-47Y50i202303
main86101-47Y40supersedes 86101-47Y30i202212
CAMBODIA SPEC&&AUDIO-AUDIO LESS & 6SPEAKER; LAOS SPEC&&AUDIO-AUDIO LESS & 6SPEAKER; MONGOLIA SPEC&&AUDIO-AUDIO LESS & 6SPEAKER; VIETNAM SPEC&&AUDIO-AUDIO LESS & 6SPEAKER
86101WCORD SUB-ASSY, ANTENNA, NO.7
main86101-47U90i202212
PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITHOUT; PARKING SUPPORT ALT/BRK-WITHOUT
main86101-47Z70i202212
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&PARKING SUPPORT ALT/BRK-WITHOUT
main86101-47Z80i202303
UNITED KINGDOM SPEC
86300BANTENNA ASSY, AMPLIFIER, NO.1
main86300-47230i202212
86300JANTENNA ASSY, ROOF
main86300-42250i202212
main86760-42090i202303
863C0AANTENNA ASSY, DIGITAL AUDIO BROADCASTING
main863C0-78030i202303
86769HOUSING, ROOF ANTENNA
main86769-K0010i202212
893C0ANTENNA ASSY, REMOTE PARKING
main893C0-47010i202501
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),NO.1
main893C0-47020i202501
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),NO.2
9011906A06
main90119-06A06
9015960498
main90159-60498
9017906274
main90179-06274

17 parts on this diagram · 1 diagram in section

ANTENNA for Toyota PRIUS

This section contains 17 genuine Toyota parts for the ANTENNA system of the Toyota PRIUS. Key components include: PROTECTOR, WIRING HARNESS, NO.1, COVER KIT, ANTENNA, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.4.
