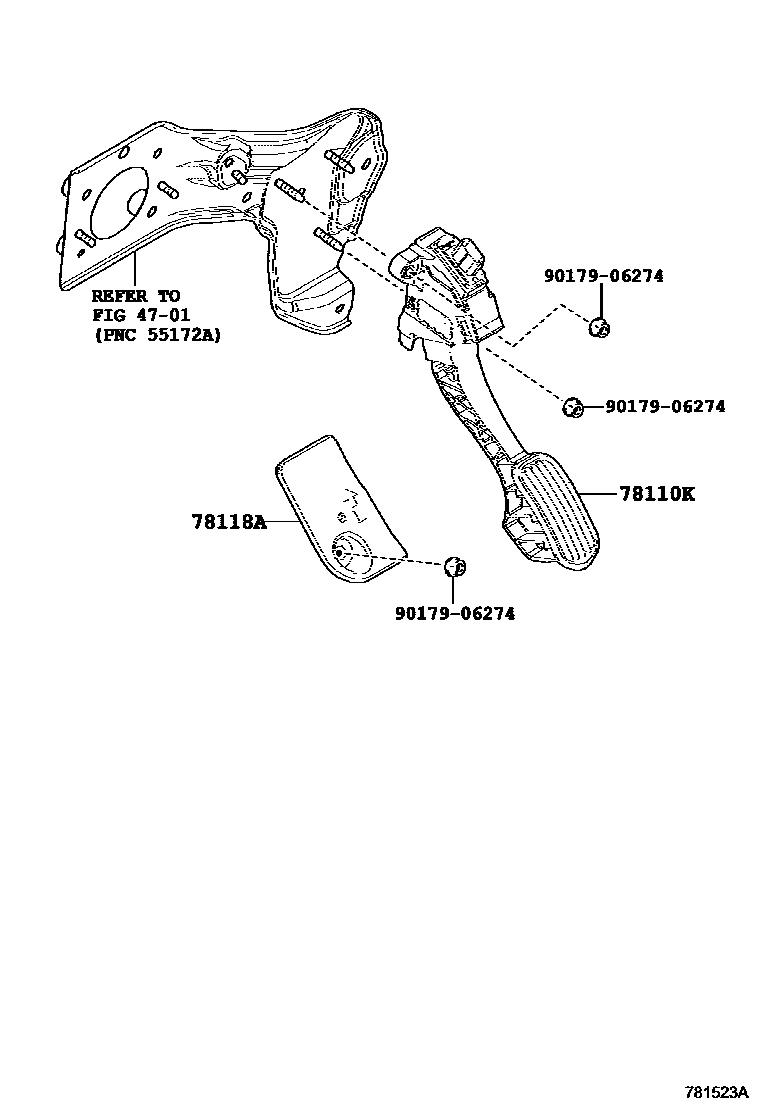

Toyota PRIUS — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-12090iZVW50..ARL201812-202010

main78110-12091iZVW50202011

main78110-12100iZVW50..GCC201812-202006

sub78110-12101

main78110-47030iZVW50..GCC201511-201601

main78110-47040iZVW50..ARL201511-201601

main78110-47050iZVW50..GCC201602-201812

main78110-47060iZVW50..ARL201602-201812

78118ASTOPPER, ACCELERATOR PEDAL

main78118-47030iZVW50..GCC201511-201812

main78118-47040iZVW50..ARL201511-201812

9017906274

main90179-06274

4 parts on this diagram · 4 diagrams in section
