Toyota PRIUS — ABS & VSC

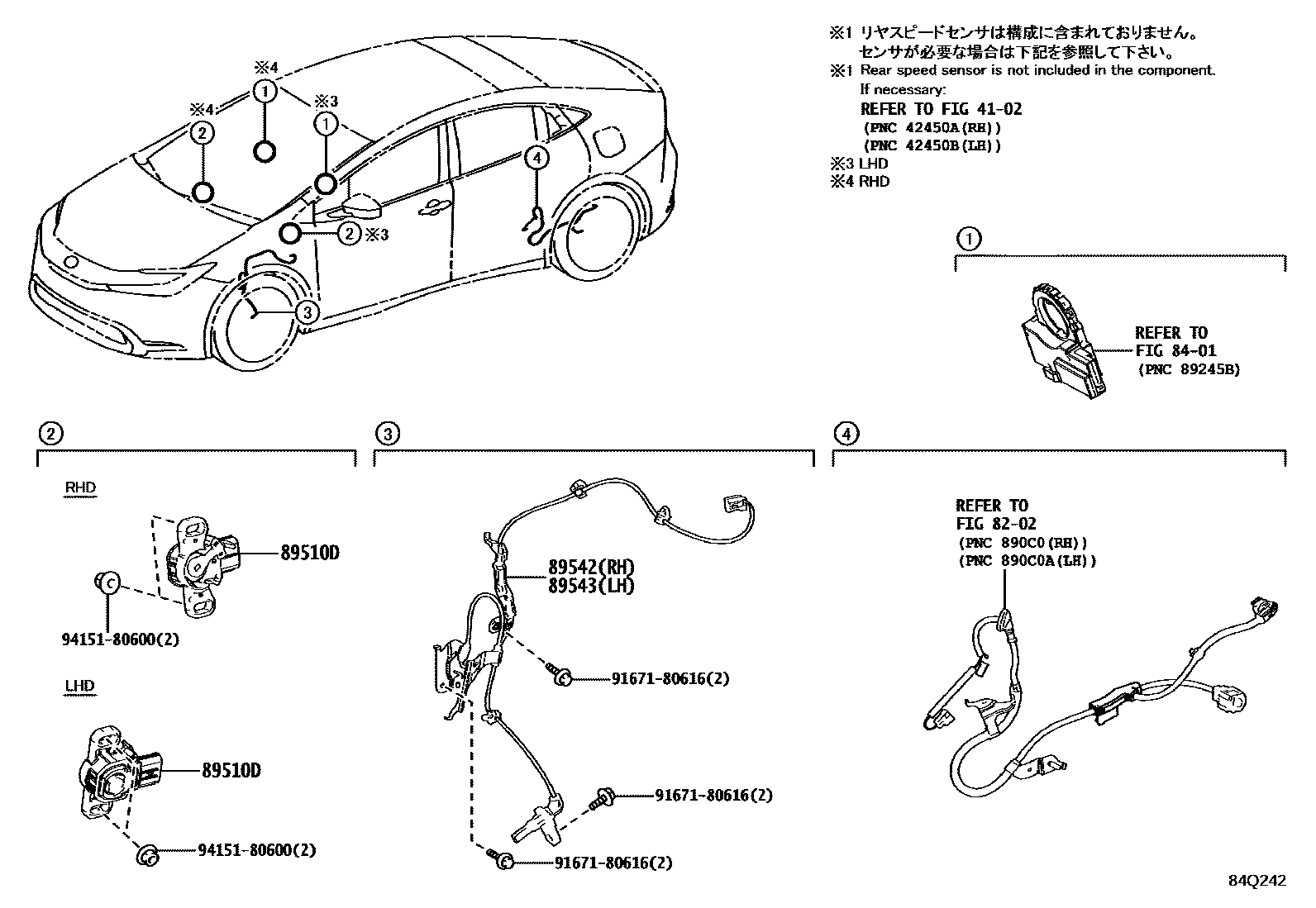

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42010i202501

main89510-42020i202501

main89510-47030i202212-202501

main89510-47040i202212-202501

89542SENSOR, SPEED, FRONT RH

main89542-47050i202212

89543SENSOR, SPEED, FRONT LH

main89543-47050i202212

9167180616

main91671-80616

9415180600

main94151-80600

8 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota PRIUS

This section contains 8 genuine Toyota parts for the ABS & VSC system of the Toyota PRIUS. Key components include: REAR AXLE SHAFT & HUB, WIRING & CLAMP, SWITCH & RELAY & COMPUTER, SENSOR ASSY, BRAKE PEDAL STROKE, SENSOR, SPEED, FRONT RH.
