Toyota PRIUS — ABS & VSC

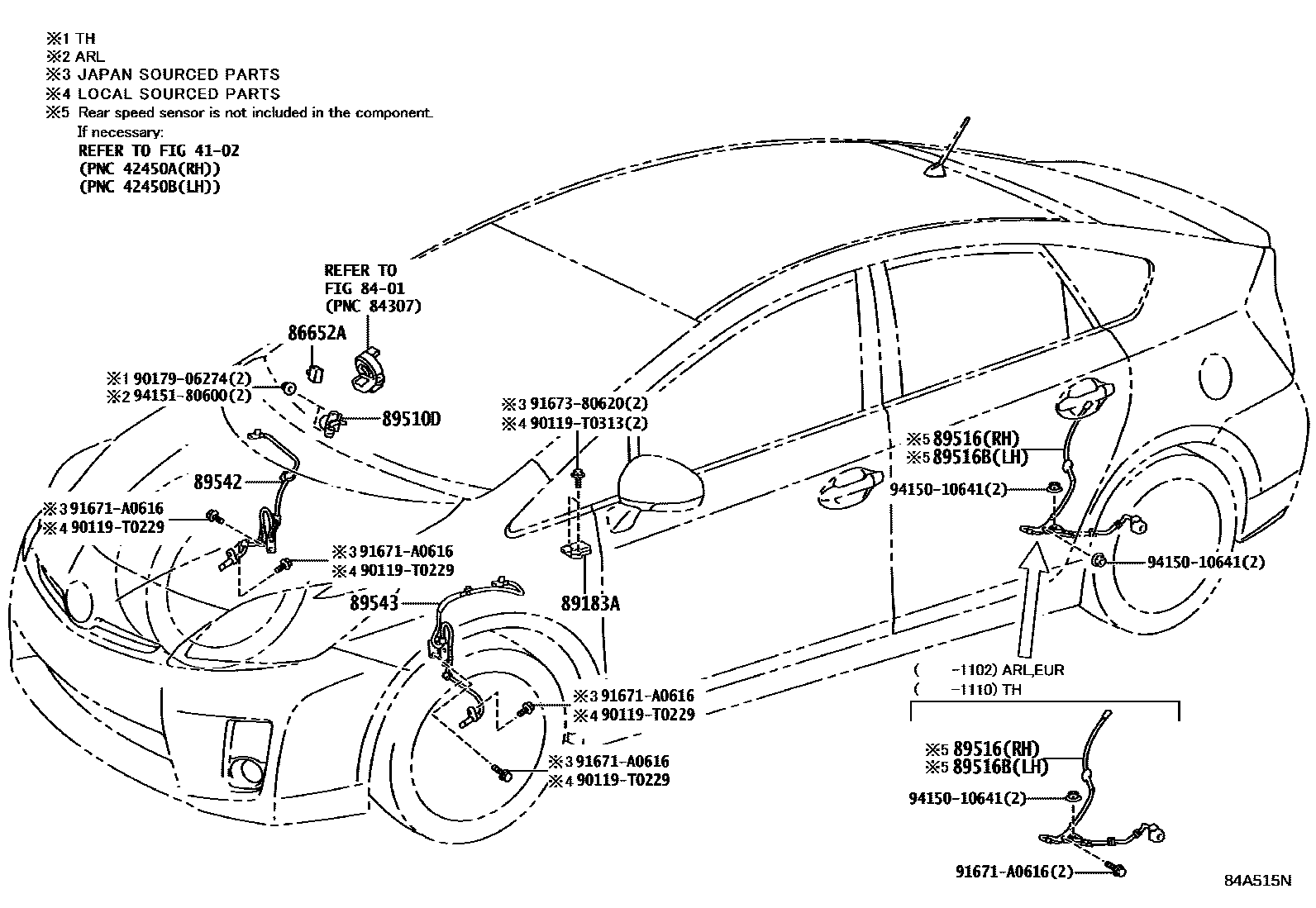

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010i200904-201112

89183ASENSOR, YAWRATE

main89183-48030i201112

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-20041i201112-201511

main89510-47010i200904-201112

main89510-47020i200904-201112

main89510-47050i201112-201511

89516WIRE, SKID CONTROL SENSOR

main89516-47070i201012-201110

main89516-47090i201112-201511

89516BWIRE, SKID CONTROL SENSOR

main89516-47080i201012-201110

main89516-47100i201204

89542SENSOR, SPEED, FRONT RH

main89542-47030i200904-201112

89543SENSOR, SPEED, FRONT LH

main89543-47030i200904-201112

90119T0229

main90119-T0229

90119T0313

main90119-T0313

9017906274

main90179-06274

91671A0616

main91671-A0616

9167380620

main91673-80620

9415010641

main94150-10641

9415180600

main94151-80600

16 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota PRIUS

This section contains 16 genuine Toyota parts for the ABS & VSC system of the Toyota PRIUS. Key components include: REAR AXLE SHAFT & HUB, SWITCH & RELAY & COMPUTER, BUZZER ASSY, SKID CONTROL, SENSOR, YAWRATE, SENSOR ASSY, BRAKE PEDAL STROKE.
