Toyota PRIUS V — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12330×2i201109-201411

ANGLE 0

main85381-12340×2i201109-201411

ANGLE -2

main85381-12350×2i201109-201411

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47010i201109-201111

HEADLAMP-LED

85319AHOSE, INLET

main85319-47120supersedes 85319-47220i201109-201308

main85319-47121i201308-201411

HEADLAMP-LED

85330JAR ASSY, WINDSHIELD WASHER

main85355-47020supersedes 85315-47220i201109-201111

HEADLAMP-LED,LABEL=HLC-33093

main85355-47021supersedes 85315-47220i201111-201308

HEADLAMP-LED,LABEL=HLC-33116

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201109-201111

HEADLAMP-LED

85332CAP, WINDSHIELD WASHER JAR

main85316-47120i201308-201411

main85316-47220i201411-201811

MARK=E11:REF.ILLUST

main85386-60060i201109-201308

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i201109-201111

HEADLAMP-LED

85336GGAGE, WATER LEVEL

main85318-47110i201109-201411

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201109-201411

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200i201109-201411

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200i201109-201411

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201109-201411

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080supersedes 90099-62096i201109-201111

L=1450(*H,L=470); L=1450(*H,L=470),HEADLAMP-LED

main90099-62091supersedes 90099-62096i201111-201411

L=470; L=470,HEADLAMP-LED

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i201109-201411

L=1450(*H,L=1360)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i201109-201411

L=1450(*H,L=300)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i201109-201411

L=1450(*H,L=810)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i201109-201411

L=1450(*H,L=250)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-2C160×3i201109-201411

85387ACLAMP, WASHER, NO.2

main82711-2C170i201109-201411

85387BCLAMP, WASHER, NO.3

main82711-52090i201109-201411

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85387-47180i201109-201411

9011906767

main90119-06767

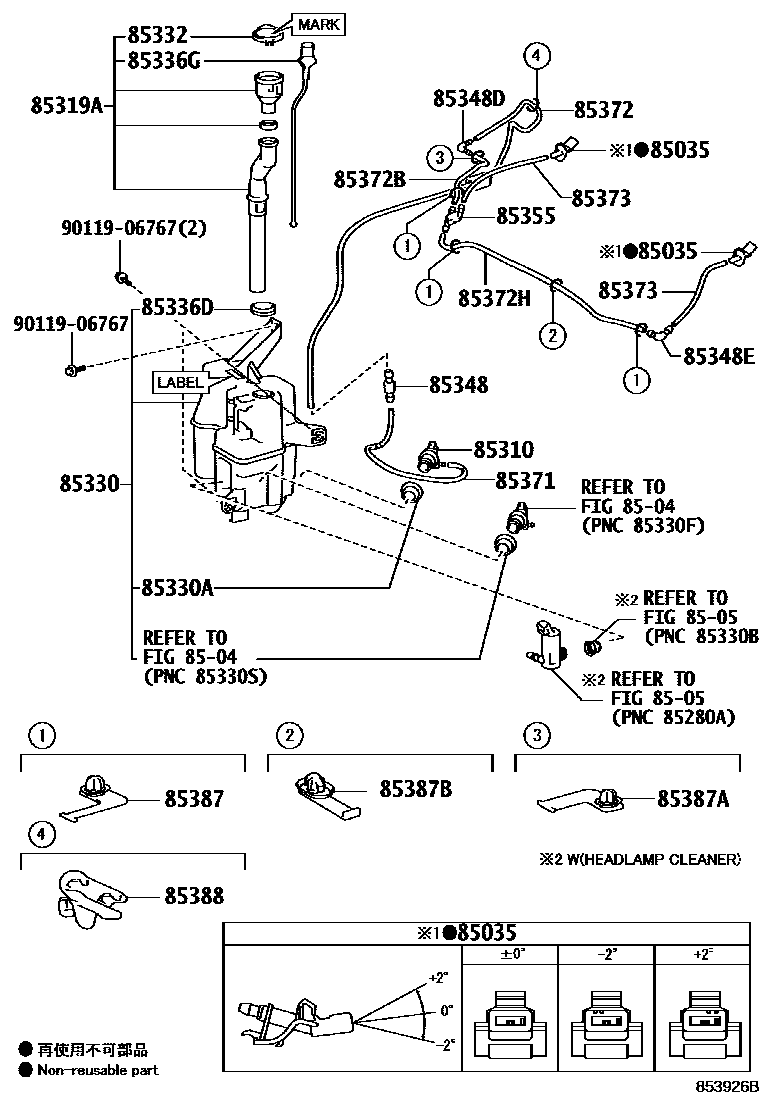

24 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota PRIUS V

This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PRIUS V. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET.
