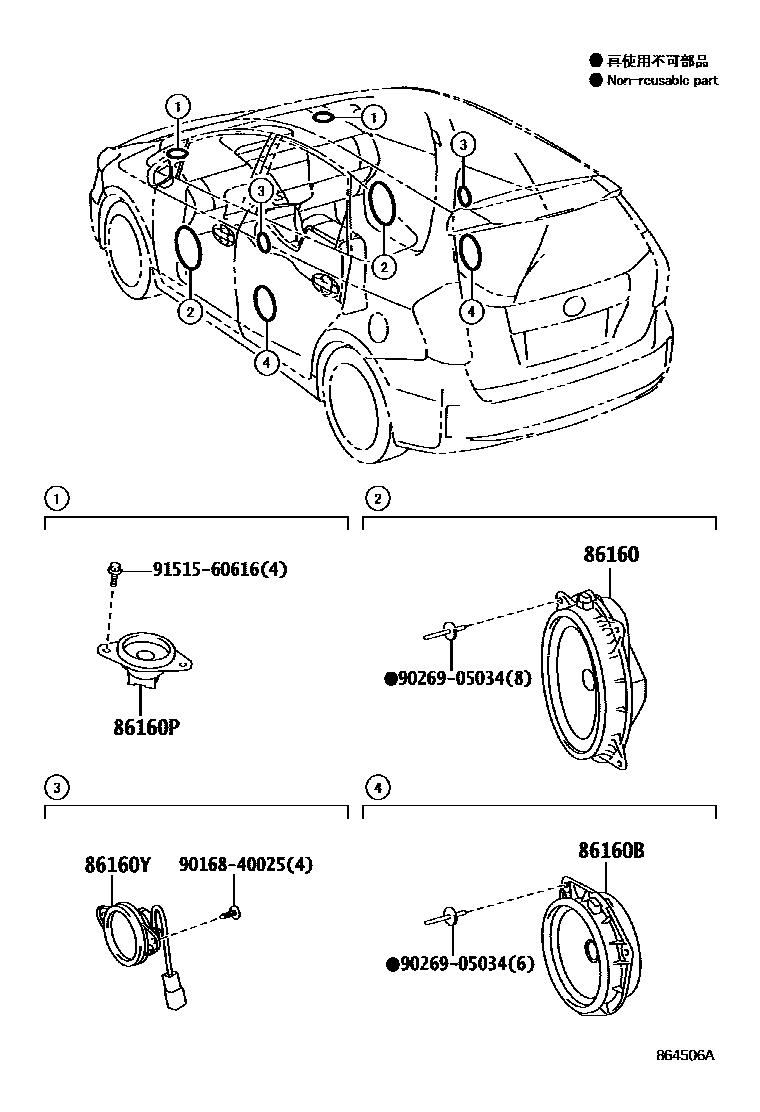

Toyota PRIUS V — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0WV50×2supersedes 86160-58240i201411-201508

AUDIO-AVN & JBL & 8SPEAKER & *BT

main86160-47190×2i201509-201712

AUDIO-AVN & JBL & 8SPEAKER & *BT

86160BSPEAKER ASSY, REAR

main86160-0WV60×2supersedes 86160-52331i201411-201508

AUDIO-AVN & JBL & 8SPEAKER & *BT

main86160-47210×2i201509-201712

AUDIO-AVN & JBL & 8SPEAKER & *BT

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WV70×2supersedes 86160-47070i201411-201508

AUDIO-AVN & JBL & 8SPEAKER & *BT

main86160-47200×2i201509-201712

AUDIO-AVN & JBL & 8SPEAKER & *BT

86160YSPEAKER ASSY, REAR NO.2

main86160-0WU30×2i201109-201411

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

main86160-47220×2i201510-201712

AUDIO-AVN & JBL & 8SPEAKER & *BT

9016840025

main90168-40025

9026905034

main90269-05034

9151560616

main91515-60616

7 parts on this diagram · 1 diagram in section

SPEAKER for Toyota PRIUS V

This section contains 7 genuine Toyota parts for the SPEAKER system of the Toyota PRIUS V. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2, SPEAKER ASSY, REAR NO.2.
