Toyota PRIUS V — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
US GRADE4&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; US GRADE5&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
KOREA SPEC&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
US GRADE4&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; US GRADE5&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87818COVER, INNER RR VIEW MIRROR
LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; LX-TOURING PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.,KOREA SPEC
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
SUPER RED 5,3P0
DK. RED M.M.,3Q3
DARK SHERRY M.M.,4W4
CLEAR STREAM ME.,787
FROSTY GREEN MC.,781
DK.BLUE MC.,8T5
KOREA SPEC,WHITE PEARL CS.,070
KOREA SPEC,SILVER ME.,1F7
KOREA SPEC,GRAY ME.,1G3
KOREA SPEC,ATTITUDE BLACK MC.,218
KOREA SPEC,BLACKISH AGEHA GF.,221
KOREA SPEC,SUPER RED 5,3P0
KOREA SPEC,CLEAR STREAM ME.,787
KOREA SPEC,DK.BLUE MC.,8T5
87931OUTER MIRROR, RH
KOREA SPEC
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.,KOREA SPEC
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
SUPER RED 5,3P0
DK. RED M.M.,3Q3
DARK SHERRY M.M.,4W4
CLEAR STREAM ME.,787
FROSTY GREEN MC.,781
DK.BLUE MC.,8T5
KOREA SPEC,WHITE PEARL CS.,070
KOREA SPEC,SILVER ME.,1F7
KOREA SPEC,GRAY ME.,1G3
KOREA SPEC,ATTITUDE BLACK MC.,218
KOREA SPEC,BLACKISH AGEHA GF.,221
KOREA SPEC,SUPER RED 5,3P0
KOREA SPEC,CLEAR STREAM ME.,787
KOREA SPEC,DK.BLUE MC.,8T5
87946RETRACTOR, OUTER MIRROR, RH
KOREA SPEC
87961MIRROR OUTER, LH
KOREA SPEC
87966RETRACTOR, OUTER MIRROR, LH
KOREA SPEC
9167180616
main91671-80616

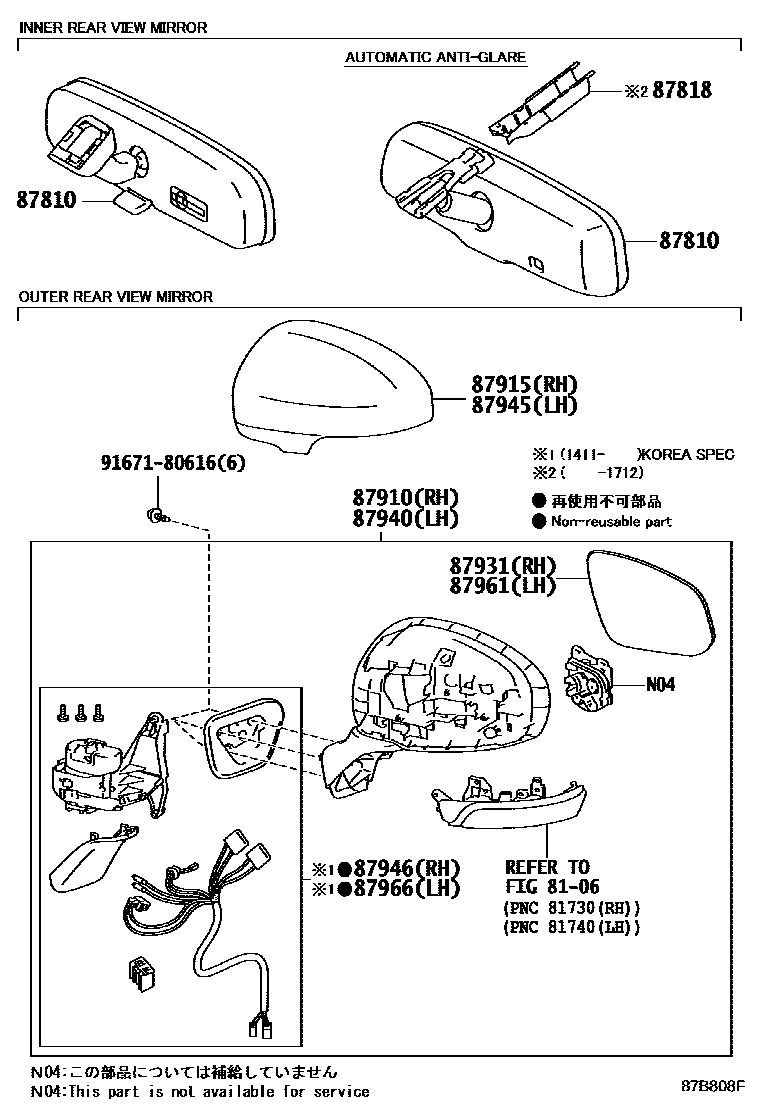

12 parts on this diagram · 1 diagram in section
MIRROR for Toyota PRIUS V
This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota PRIUS V. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER RR VIEW MIRROR, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
