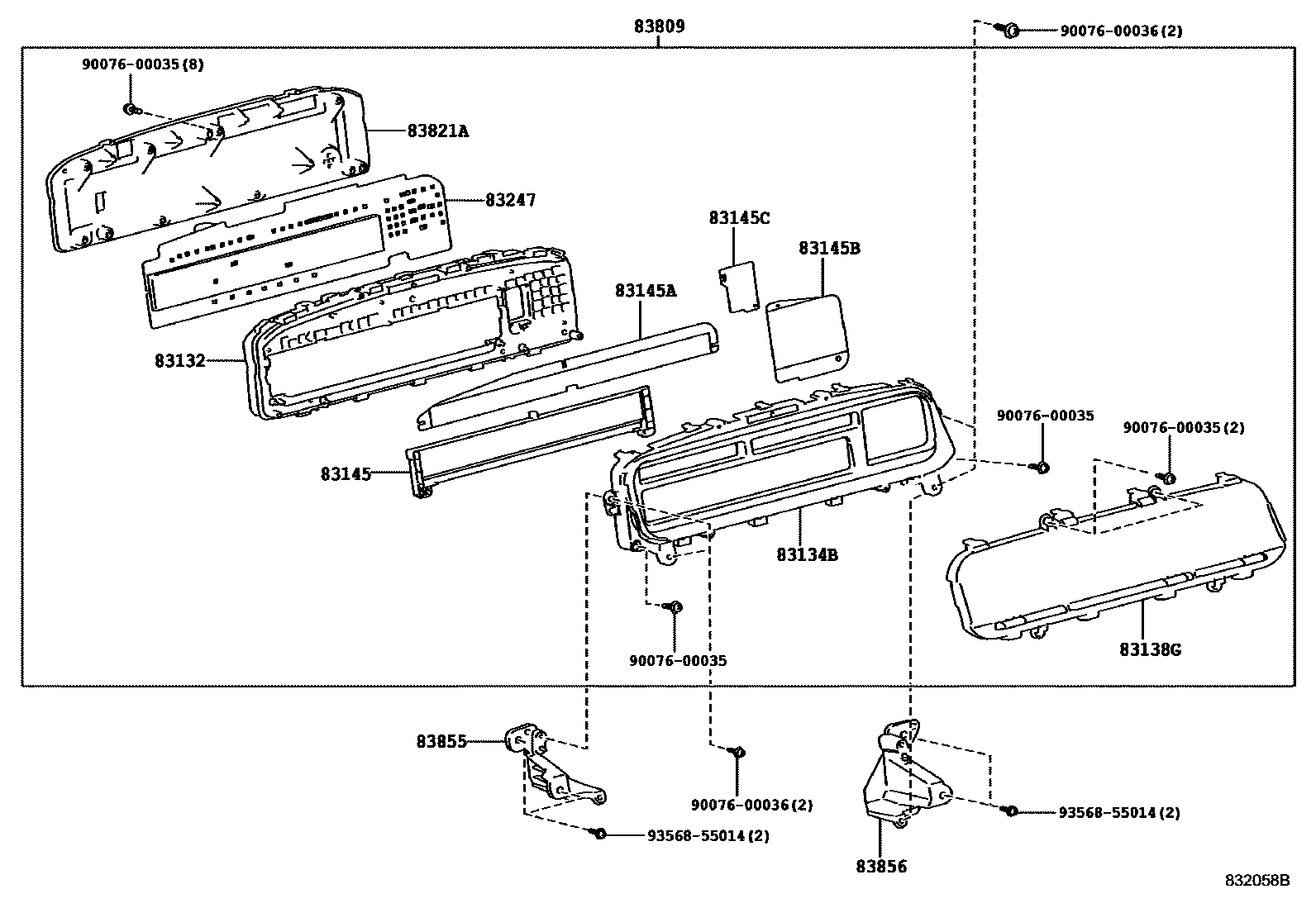

Toyota PRIUS V — METER

83132CASE, COMBINATION METER

main83841-47590i201109-201411

83134BCOVER, COMBINATION METER, NO.2

main83822-47590i201109-201411

main83822-47F30i201411-201811

83138GGLASS, COMBINATION METER

main83852-47580i201109-201411

main83852-47M50i201411-201811

83145LENS, METER, NO.1

main83831-47590i201109-201411

main83831-47M50i201411-201811

83145ALENS, METER, NO.2

main83832-47590i201109-201411

main83832-47600i201109-201411

main83832-47591i201605-201711

US GRADE2&STEERING SWITCH-WITH(W/AIR CONDITIONER CONTROL SWITCH)

83145BLENS, METER, NO.3

main83833-47590i201109-201411

main83833-47600i201109-201411

main83833-47M60i201411-201605

US GRADE2&STEERING SWITCH-WITH(W/AIR CONDITIONER CONTROL SWITCH)

main83833-47M61i201605-201711

US GRADE2&STEERING SWITCH-WITH(W/AIR CONDITIONER CONTROL SWITCH)

83145CLENS, METER, NO.4

main83834-47580i201109-201411

83247PLATE, METER CIRCUIT

main83861-47590i201109-201308

main83861-47591i201308-201411

main83861-47600i201109-201308

main83861-47601i201308-201411

main83861-47M60i201411-201605

US GRADE2&STEERING SWITCH-WITH(W/AIR CONDITIONER CONTROL SWITCH)

main83861-47M61i201605-201711

US GRADE2&STEERING SWITCH-WITH(W/AIR CONDITIONER CONTROL SWITCH)

83809METER SUB-ASSY, COMBINATION

main83809-47020i201109-201307

main83809-47021i201308-201411

main83809-47030i201109-201307

main83809-47031i201308-201411

main83809-47130i201411-201605

main83809-47131i201605-201712

main83809-47132i201712-201811

YAZAKI

main83809-47230supersedes 83809-47120i201411-201605

US GRADE2&STEERING SWITCH-WITH(W/AIR CONDITIONER CONTROL SWITCH)

main83809-47231supersedes 83809-47121i201605-201711

US GRADE2&STEERING SWITCH-WITH(W/AIR CONDITIONER CONTROL SWITCH)

main83809-47290supersedes 83809-47120i201411-201605

KOREA SPEC&HEADLAMP-LED

main83809-47291supersedes 83809-47121i201605-201711

KOREA SPEC&HEADLAMP-LED

83821ACOVER, COMBINATION METER, NO.1

main83821-47590i201109-201411

main83821-47F30i201411-201811

83855BRACKET, COMBINATION METER, NO.1

main83855-47590i201109-201411

83856BRACKET, COMBINATION METER, NO.2

main83856-47590i201109-201411

9007600035

main90076-00035

9007600036

main90076-00036

9356855014

main93568-55014

15 parts on this diagram · 3 diagrams in section

METER for Toyota PRIUS V

This section contains 16 genuine Toyota parts for the METER system of the Toyota PRIUS V. Key components include: CASE, COMBINATION METER, CASE, COMBINATION METER, NO.2, COVER, COMBINATION METER, NO.2, GLASS, COMBINATION METER, LENS, METER, NO.1.
