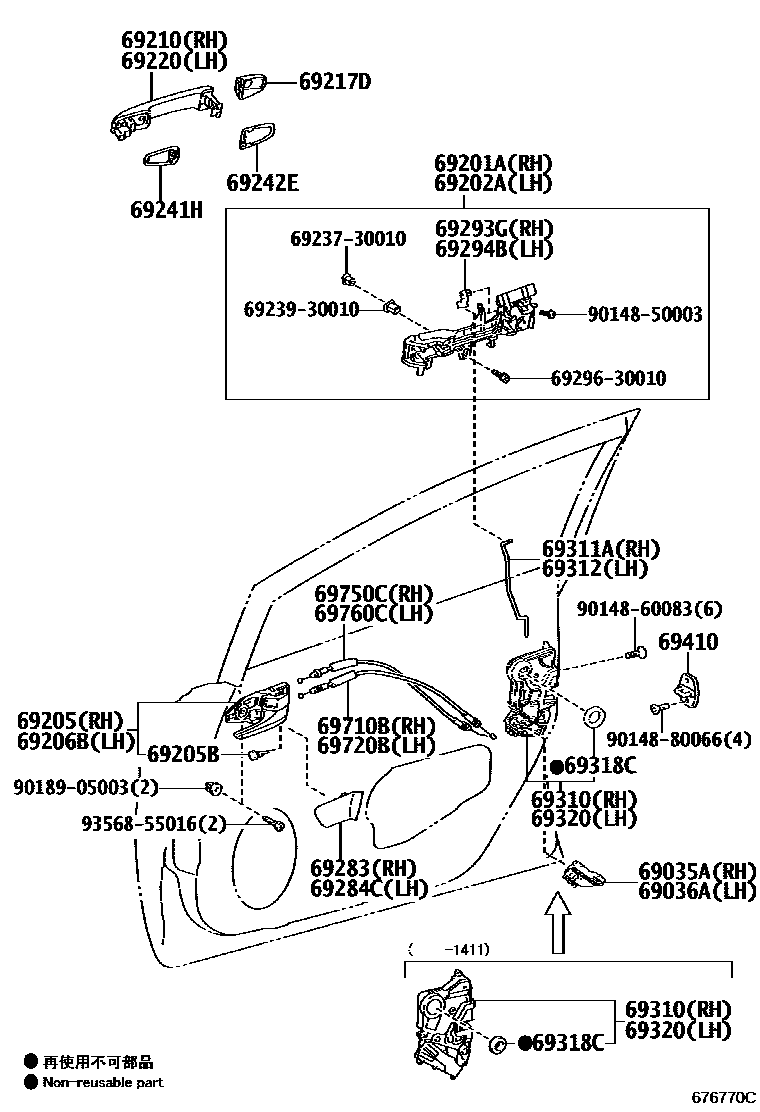

Toyota PRIUS V — FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
BLACK,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
BLACK,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
LUXURY PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),WHITE PEARL CS.,070; LX-TOURING PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),WHITE PEARL CS.,070
LUXURY PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),SUPER WHITE 2,040; LX-TOURING PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),SUPER WHITE 2,040
LUXURY PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),SILVER ME.,1F7; LX-TOURING PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),SILVER ME.,1F7
LUXURY PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),GRAY ME.,1G3; LX-TOURING PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),GRAY ME.,1G3
LUXURY PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),BLACK,202; LX-TOURING PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),BLACK,202
LUXURY PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),RED M.M.,3R3; LX-TOURING PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),RED M.M.,3R3
LUXURY PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),CLEAR STREAM ME.,787; LX-TOURING PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),CLEAR STREAM ME.,787
LUXURY PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),FROSTY GREEN MC.,781; LX-TOURING PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),FROSTY GREEN MC.,781
LUXURY PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),DK.BLUE MC.,8T5; LX-TOURING PACKAGE&SMART ENTRY-W(DRIVER&PASSENGER&BACK)&W(PANIC SWITCH),DK.BLUE MC.,8T5
US GRADE2&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),WHITE PEARL CS.,070; US GRADE2.5&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),WHITE PEARL CS.,070
US GRADE2&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),SUPER WHITE 2,040; US GRADE2.5&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),SUPER WHITE 2,040
US GRADE2&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),SILVER ME.,1F7; US GRADE2.5&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),SILVER ME.,1F7
US GRADE2&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),GRAY ME.,1G3; US GRADE2.5&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),GRAY ME.,1G3
US GRADE2&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),ATTITUDE BLACK MC.,218; US GRADE2.5&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),ATTITUDE BLACK MC.,218
US GRADE2&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),BLACKISH AGEHA GF.,221; US GRADE2.5&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),BLACKISH AGEHA GF.,221
US GRADE2&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),SUPER RED 5,3P0; US GRADE2.5&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),SUPER RED 5,3P0
US GRADE2&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),DK. RED M.M.,3Q3; US GRADE2.5&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),DK. RED M.M.,3Q3
US GRADE2&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),DARK SHERRY M.M.,4W4; US GRADE2.5&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),DARK SHERRY M.M.,4W4
US GRADE2&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),CLEAR STREAM ME.,787; US GRADE2.5&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),CLEAR STREAM ME.,787
US GRADE2&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),FROSTY GREEN MC.,781; US GRADE2.5&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),FROSTY GREEN MC.,781
US GRADE2&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),DK.BLUE MC.,8T5; US GRADE2.5&SMART ENTRY-W(DRIVER SIDE ONLY) & W(PANIC SWITCH),DK.BLUE MC.,8T5
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
WHITE PEARL CS.,070,DRIVER SIDE
SUPER WHITE 2,040,DRIVER SIDE
SILVER ME.,1F7,DRIVER SIDE
GRAY ME.,1G3,DRIVER SIDE
BLACK,202,DRIVER SIDE
ATTITUDE BLACK MC.,218,DRIVER SIDE
BLACKISH AGEHA GF.,221,DRIVER SIDE
RED M.M.,3R3,DRIVER SIDE
SUPER RED 5,3P0,DRIVER SIDE
DK. RED M.M.,3Q3,DRIVER SIDE
DARK SHERRY M.M.,4W4,DRIVER SIDE
CLEAR STREAM ME.,787,DRIVER SIDE
FROSTY GREEN MC.,781,DRIVER SIDE
DK.BLUE MC.,8T5,DRIVER SIDE
SUPER WHITE 2,040,PASSENGER SIDE
WHITE PEARL CS.,070,PASSENGER SIDE
SILVER ME.,1F7,PASSENGER SIDE
GRAY ME.,1G3,PASSENGER SIDE
BLACK,202,PASSENGER SIDE
ATTITUDE BLACK MC.,218,PASSENGER SIDE
BLACKISH AGEHA GF.,221,PASSENGER SIDE
RED M.M.,3R3,PASSENGER SIDE
SUPER RED 5,3P0,PASSENGER SIDE
DK. RED M.M.,3Q3,PASSENGER SIDE
DARK SHERRY M.M.,4W4,PASSENGER SIDE
CLEAR STREAM ME.,787,PASSENGER SIDE
FROSTY GREEN MC.,781,PASSENGER SIDE
DK.BLUE MC.,8T5,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
RED M.M.,3R3
SUPER RED 5,3P0
DK. RED M.M.,3Q3
DARK SHERRY M.M.,4W4
CLEAR STREAM ME.,787
FROSTY GREEN MC.,781
DK.BLUE MC.,8T5
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
DK.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
DK.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356855016
main93568-55016
34 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota PRIUS V
This section contains 34 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota PRIUS V. Key components include: COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
