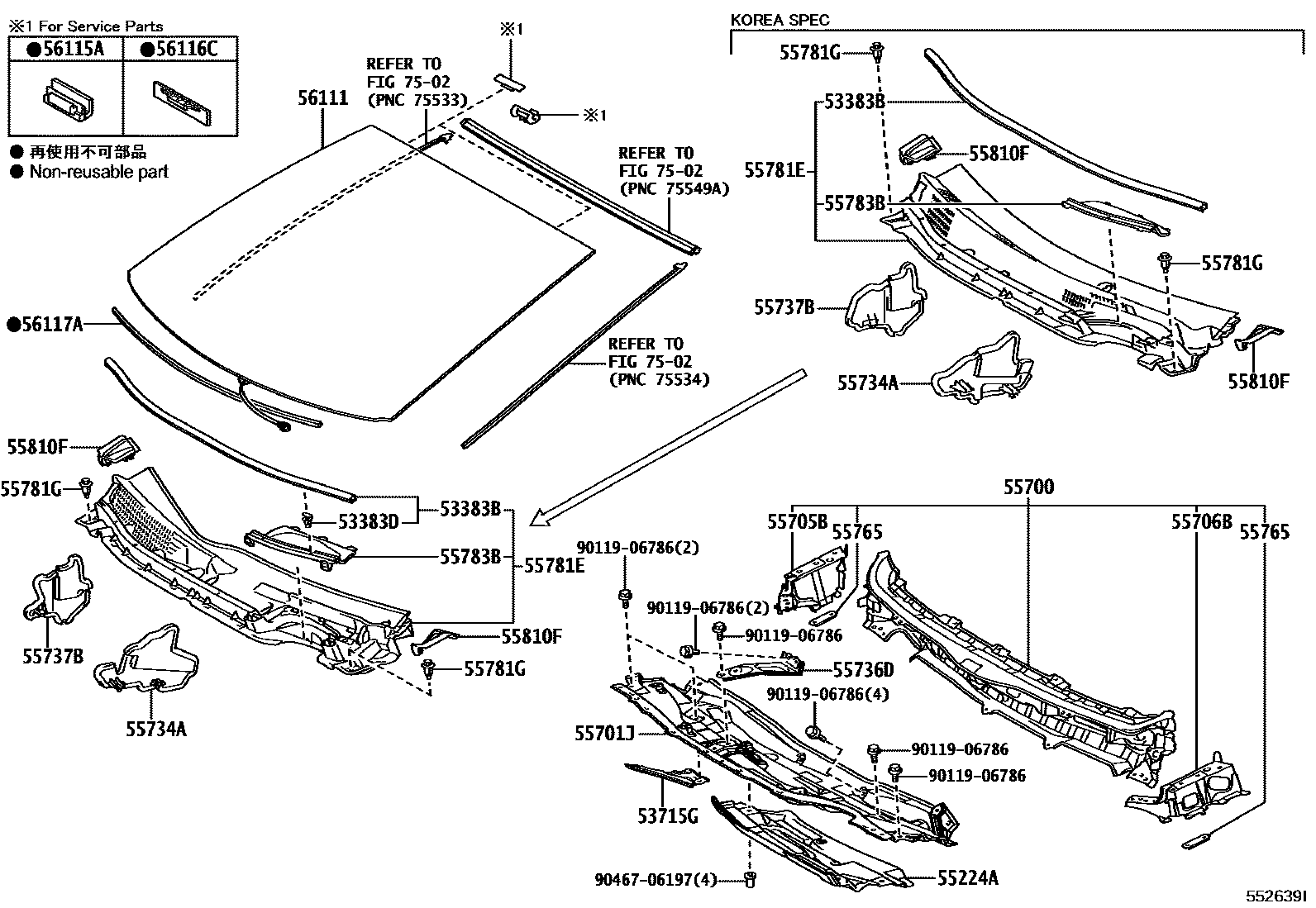

Toyota PRIUS V — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
KOREA SPEC
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53715GEXTENSION, FRONT FENDER APRON, REAR RH
55224AINSULATOR, DASH PANEL, OUTER NO.2
55700PANEL ASSY, FRONT
KOREA SPEC
55701JPANEL SUB-ASSY, COWL TOP, OUTER
KOREA SPEC
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55734APLATE, WATER GUARD, RH
KOREA SPEC
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
KOREA SPEC
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
KOREA SPEC
55765BRACKET, HOOD DAMPER MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
KOREA SPEC
55781GCLIP, COWL TOP VENTILATOR LOUVER
BLACK
BLACK
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
KOREA SPEC
55810FVENTILATOR ASSY, FRONT
RH
LH
56111GLASS, WINDSHIELD
LUXURY PACKAGE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS); LUXURY PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH; LX-TOURING PACKAGE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS); LX-TOURING PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
LUXURY PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS); LUXURY PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH; LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS); LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
US GRADE4&HEADLAMP-HALOGEN & *AHB; US GRADE4&PANORAMIC ROOF-WITH(FIXED)&HEADLAMP-HALOGEN & *AHB; US GRADE5&HEADLAMP-LED & *AHB; US GRADE5&PANORAMIC ROOF-WITH(FIXED)&HEADLAMP-LED & *AHB
KOREA SPEC&HEADLAMP-LED; KOREA SPEC&PANORAMIC ROOF-WITH(FIXED)&HEADLAMP-LED
US GRADE4; US GRADE4&PANORAMIC ROOF-WITH(FIXED); US GRADE5; US GRADE5&PANORAMIC ROOF-WITH(FIXED)
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1137.5; *D,L=1137.5,LUXURY PACKAGE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS); *D,L=1137.5,LUXURY PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH; *D,L=1137.5,LUXURY PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS); *D,L=1137.5,LUXURY PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-AVN & JBL & 8SPEAKER &BLUETOOTH; *D,L=1137.5,LX-TOURING PACKAGE&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS); *D,L=1137.5,LX-TOURING PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH; *D,L=1137.5,LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-*DA & 6SPEAKER & BLUETOOTH & W(SDARS); *D,L=1137.5,LX-TOURING PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH; *D,L=1137.5,ROOF-PANORAMIC ROOF(FIXED)
7502FRONT MOULDING
9011906786
main90119-06786
9046706197
main90467-06197
23 parts on this diagram · 2 diagrams in section
COWL PANEL & WINDSHIELD GLASS for Toyota PRIUS V
This section contains 24 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota PRIUS V. Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), EXTENSION, FRONT FENDER APRON, REAR RH, INSULATOR, DASH PANEL, OUTER NO.2, PANEL ASSY, FRONT.
