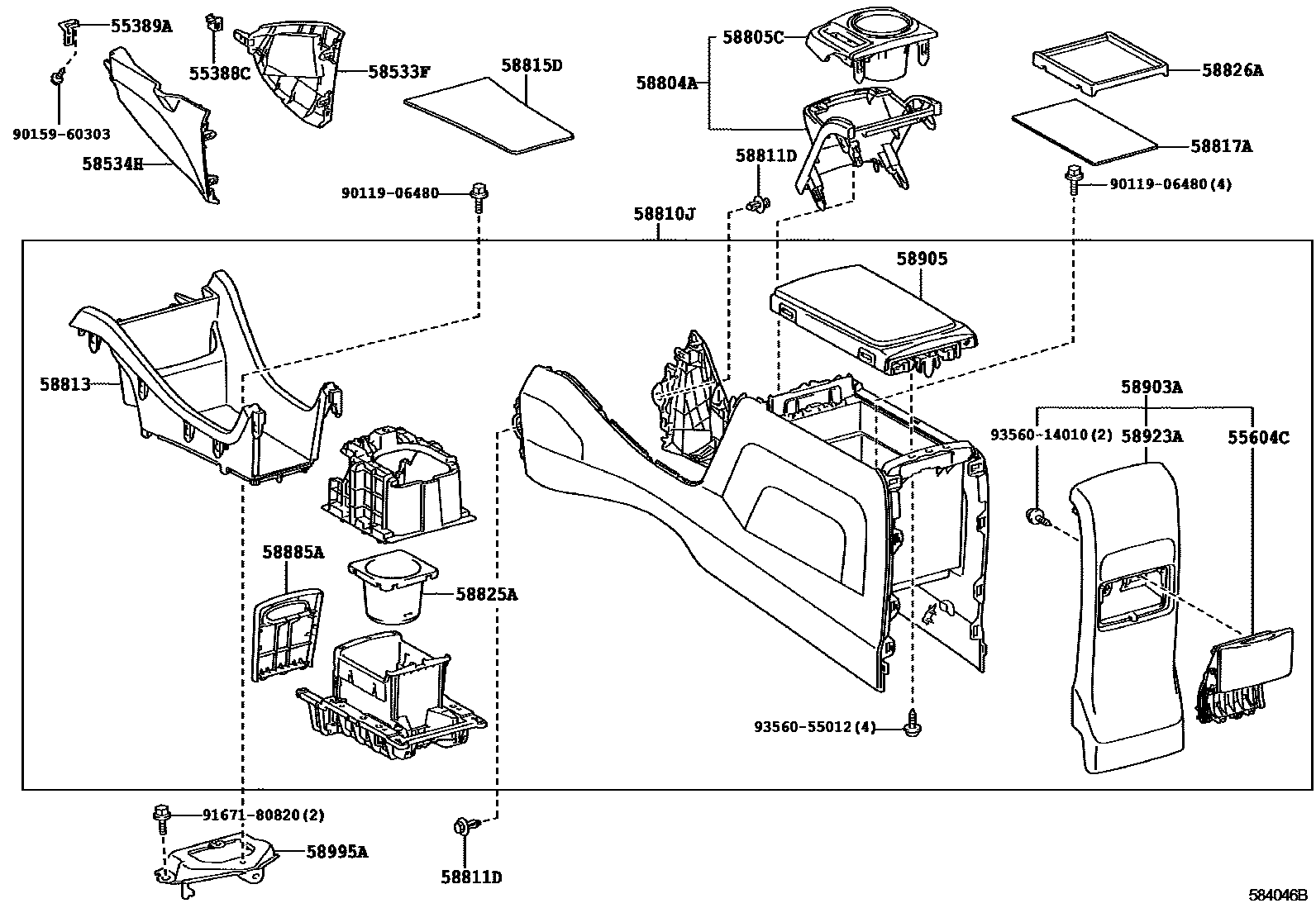

Toyota PRIUS V — CONSOLE BOX & BRACKET
55388CBRACKET, CONSOLE MOUNTING, RH
55389ABRACKET, CONSOLE MOUNTING, LH
55604CHOLDER SUB-ASSY, CONSOLE BOX CUP
MD.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
58533FCOVER, FLOOR CARPET, CENTER RH
MD.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
58534HCOVER, FLOOR CARPET, CENTER LH
MD.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
58804APANEL SUB-ASSY, CONSOLE, UPPER
MD.GRAY,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
58810JBOX ASSY, CONSOLE
MD.GRAY/GRAY,TRIM1#
GREGE/GRAY,TRIM4#
AQUA/GRAY,TRIM6#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
58811DCLIP(FOR CONSOLE BOX)
58813BOX, CONSOLE, UPPER
MD.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
58815DSHEET, CONSOLE BOX, NO.1
BLACK,TRIM1#,4#,6#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM1#,4#,6#
58825APOCKET, CONSOLE BOX
58826APOCKET, CONSOLE BOX, LOWER
58885APANEL, EQUIPMENT SET
MD.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
58903APANEL SUB-ASSY, CONSOLE REAR END
MD.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
MD.GRAY,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
58923APANEL, CONSOLE REAR END
MD.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
9011906480
main90119-06480
9015960303
main90159-60303
9167180820
main91671-80820
9356014010
main93560-14010
9356055012
main93560-55012
24 parts on this diagram · 1 diagram in section
