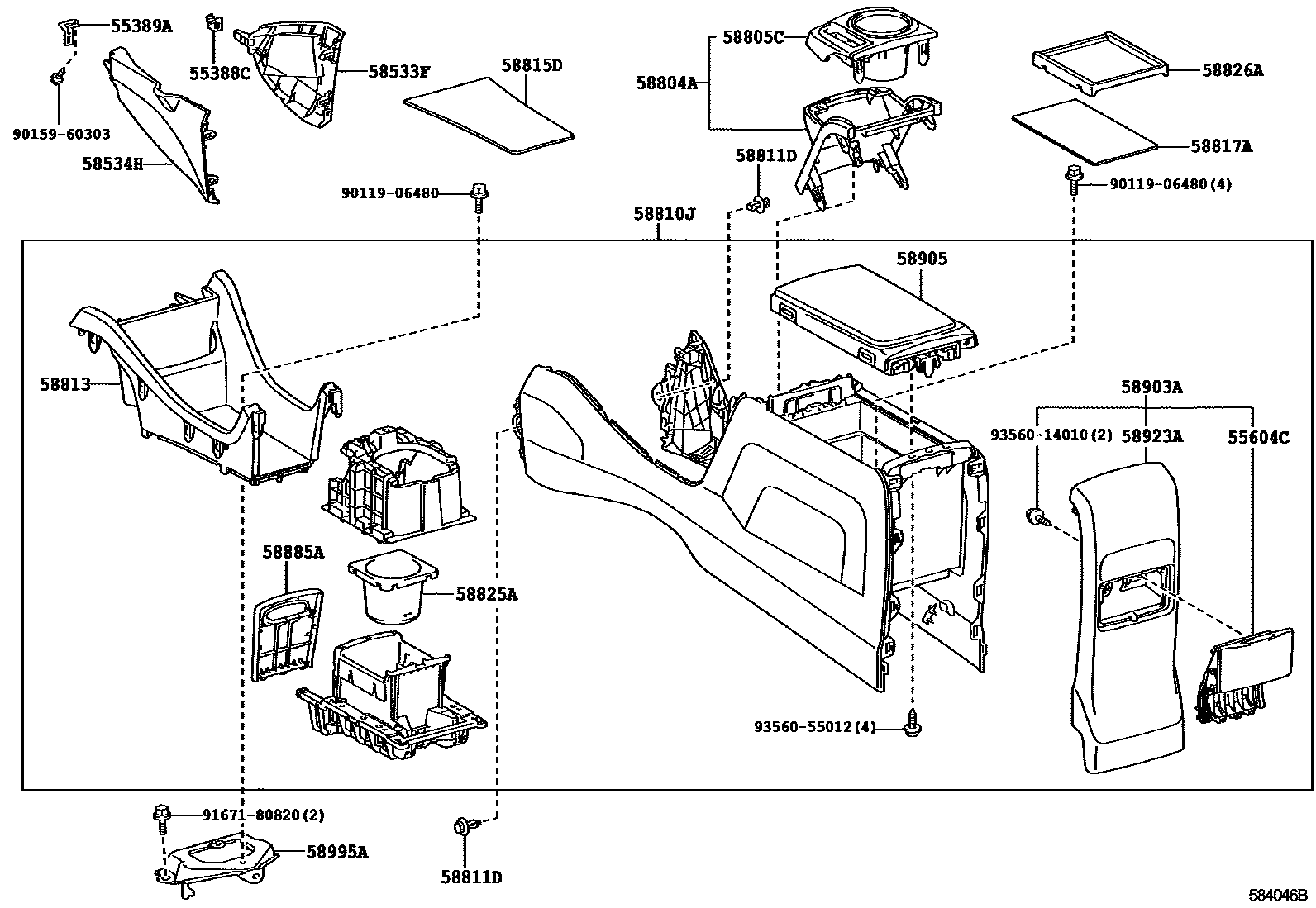

Toyota PRIUS V — CONSOLE BOX & BRACKET

55388CBRACKET, CONSOLE MOUNTING, RH

main55388-42010i201109-201411

55389ABRACKET, CONSOLE MOUNTING, LH

main55389-12040i201109-201411

55604CHOLDER SUB-ASSY, CONSOLE BOX CUP

main55604-47010-B0i201109-201411

MD.GRAY,TRIM1#

main55604-47010-B1i201411-201811

GRAY,TRIM1#

main55604-47010-C0i201411-201811

BLACK,TRIM2#

main55604-47010-E0i201109-201411

GREGE,TRIM4#

main55604-47010-G0i201109-201411

AQUA,TRIM6#

58533FCOVER, FLOOR CARPET, CENTER RH

main58533-47020-B0i201109-201411

MD.GRAY,TRIM1#

main58533-47020-B1i201411-201811

GRAY,TRIM1#

main58533-47020-C0i201411-201811

BLACK,TRIM2#

main58533-47020-E0i201109-201411

GREGE,TRIM4#

main58533-47020-G0i201109-201411

AQUA,TRIM6#

58534HCOVER, FLOOR CARPET, CENTER LH

main58534-47020-B0i201109-201411

MD.GRAY,TRIM1#

main58534-47020-B1i201411-201811

GRAY,TRIM1#

main58534-47020-C0i201411-201811

BLACK,TRIM2#

main58534-47020-E0i201109-201411

GREGE,TRIM4#

main58534-47020-G0i201109-201411

AQUA,TRIM6#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-47040-B0i201109-201411

MD.GRAY,TRIM1#

main58804-47040-E0i201109-201411

GREGE,TRIM4#

main58804-47040-G0i201109-201411

AQUA,TRIM6#

main58804-47110-B0i201411-201811

GRAY,TRIM1#

main58804-47110-C0i201411-201811

BLACK,TRIM2#

main58804-47110-E0i201411-201811

GREGE,TRIM4#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-47020i201109-201411

main58805-47060i201411-201811

58810JBOX ASSY, CONSOLE

main58810-47050-B0i201109-201411

MD.GRAY/GRAY,TRIM1#

main58810-47050-E0i201109-201411

GREGE/GRAY,TRIM4#

main58810-47050-G0i201109-201411

AQUA/GRAY,TRIM6#

main58810-47110-B1i201411-201811

GRAY,TRIM1#

main58810-47110-C1i201411-201811

BLACK,TRIM2#

main58810-47110-E1i201411-201811

GREGE,TRIM4#

58811DCLIP(FOR CONSOLE BOX)

main90467-07164×2i201109-201411

58813BOX, CONSOLE, UPPER

main58813-47010-B0i201109-201411

MD.GRAY,TRIM1#

main58813-47010-B1i201411-201811

GRAY,TRIM1#

main58813-47010-C0i201411-201811

BLACK,TRIM2#

main58813-47010-E0i201109-201411

GREGE,TRIM4#

main58813-47010-G0i201109-201411

AQUA,TRIM6#

58815DSHEET, CONSOLE BOX, NO.1

main58816-47030-C0i201411-201811

BLACK,TRIM1#,2#,4#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-47040-C0i201411-201811

BLACK,TRIM1#,2#,4#

58825APOCKET, CONSOLE BOX

main58825-47030i201109-201411

58826APOCKET, CONSOLE BOX, LOWER

main58826-47010i201109-201411

58885APANEL, EQUIPMENT SET

main58885-47010-B0i201109-201411

MD.GRAY,TRIM1#

main58885-47010-B1i201411-201811

GRAY,TRIM1#

main58885-47010-C0i201411-201811

BLACK,TRIM2#

main58885-47010-E0i201109-201411

GREGE,TRIM4#

main58885-47010-G0i201109-201411

AQUA,TRIM6#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-47030-B0i201109-201411

MD.GRAY,TRIM1#

main58903-47030-B1i201411-201811

GRAY,TRIM1#

main58903-47030-C0i201411-201811

BLACK,TRIM2#

main58903-47030-E0i201109-201411

GREGE,TRIM4#

main58903-47030-G0i201109-201411

AQUA,TRIM6#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-47101-B3i201109-201411

MD.GRAY,TRIM1#

main58905-47101-E0i201109-201411

GREGE,TRIM4#

main58905-47101-G0i201109-201411

AQUA,TRIM6#

main58905-47230-B1i201411-201811

GRAY,TRIM1#

main58905-47230-C1i201411-201811

BLACK,TRIM2#

main58905-47230-E1i201411-201811

GREGE,TRIM4#

58923APANEL, CONSOLE REAR END

main58923-47050-B0i201109-201411

MD.GRAY,TRIM1#

main58923-47050-B1i201411-201811

GRAY,TRIM1#

main58923-47050-C0i201411-201811

BLACK,TRIM2#

main58923-47050-E0i201109-201411

GREGE,TRIM4#

main58923-47050-G0i201109-201411

AQUA,TRIM6#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-47040i201109-201411

9011906480

main90119-06480

9015960303

main90159-60303

9167180820

main91671-80820

9356014010

main93560-14010

9356055012

main93560-55012

24 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota PRIUS V

This section contains 24 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota PRIUS V. Key components include: BRACKET, CONSOLE MOUNTING, RH, BRACKET, CONSOLE MOUNTING, LH, HOLDER SUB-ASSY, CONSOLE BOX CUP, COVER, FLOOR CARPET, CENTER RH, COVER, FLOOR CARPET, CENTER LH.
