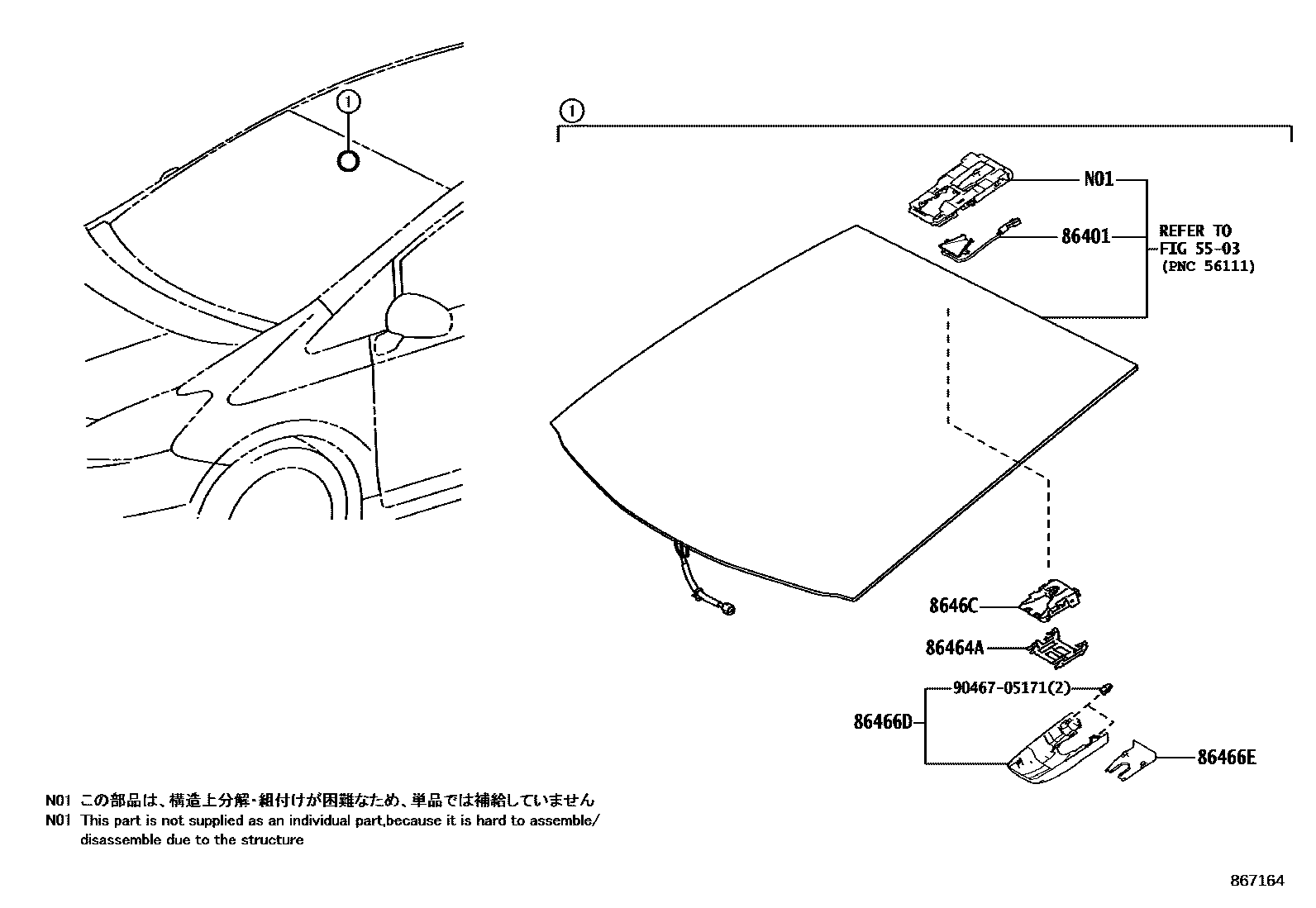

Toyota PRIUS V — PRE-COLLISION SYSTEM

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-47030iZVW40201712-202108

86464ALATCH, FORWARD RECOGNITION

main86464-48011iZVW40201712-202108

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-47040iZVW40201712-202108

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-47060iZVW40201712-202108

8646CCAMERA, FORWARD RECOGNITION

main8646C-47050iZVW40201712-202008

main8646C-47051iZVW40202008-202108

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
