Toyota PRIUS +/V/A(ALPHA) — PARTIAL ENGINE ASSEMBLY

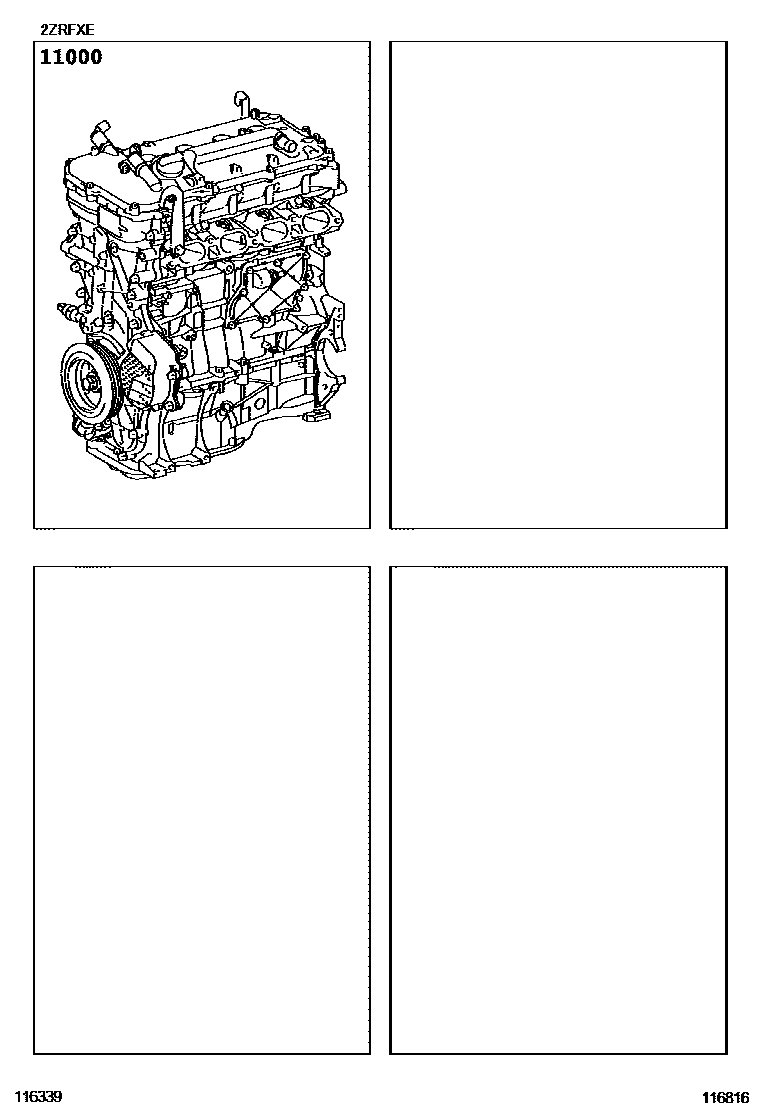

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0T160supersedes 19000-37472i201204-201411
ENGINE-2ZRFXE(MADE IN UK),*149
main19000-0T162i201505-202008
ENGINE-2ZR-FXE(MADE IN UK),*149
sub19000-37472

1 parts on this diagram · 1 diagram in section
