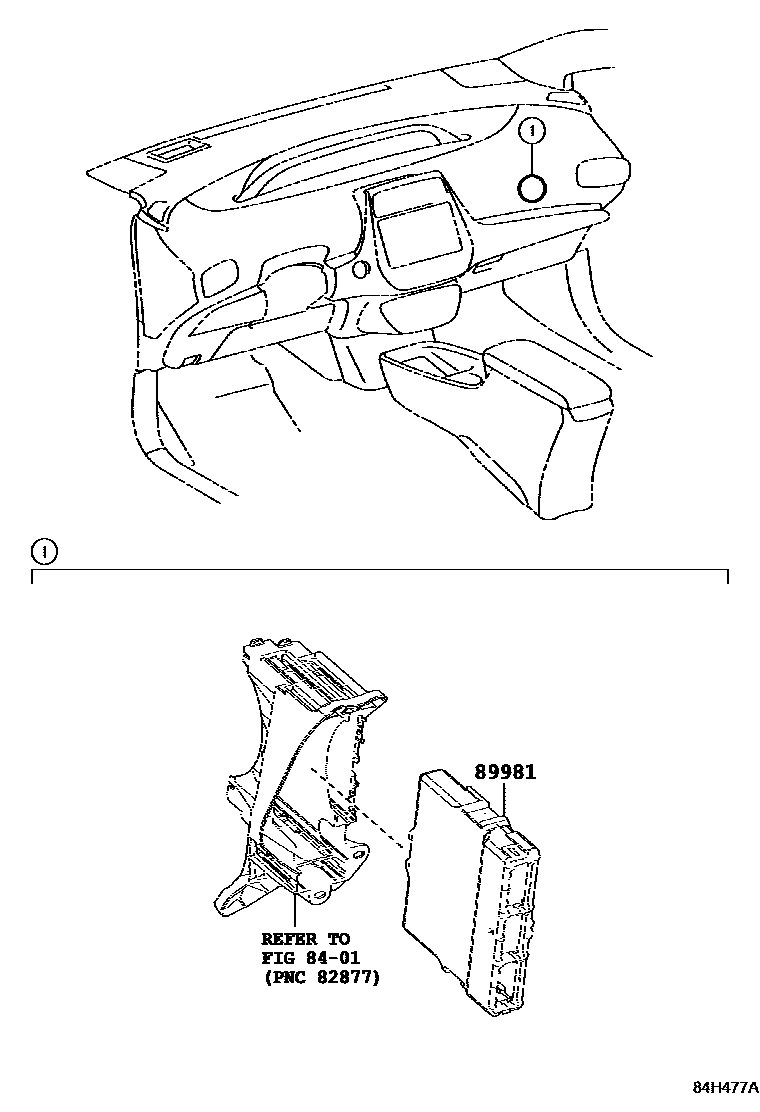

Toyota PRIUS PRIME(PHV) — HEV CONTROL COMPUTER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-47780i201801-201812

main89981-47830i201609-201701

main89981-47831i201702-201706

main89981-47832i201706-201801

main89981-47E20i201905-202007

main89981-47F60i201812-201904

main89981-47M20i202007-202106

main89981-47T60i202106-202107

main89981-47T61i202108

2 parts on this diagram · 1 diagram in section

HEV CONTROL COMPUTER for Toyota PRIUS PRIME(PHV)

This section contains 2 genuine Toyota parts for the HEV CONTROL COMPUTER system of the Toyota PRIUS PRIME(PHV). Key components include: SWITCH & RELAY & COMPUTER, COMPUTER, HYBRID VEHICLE CONTROL.
