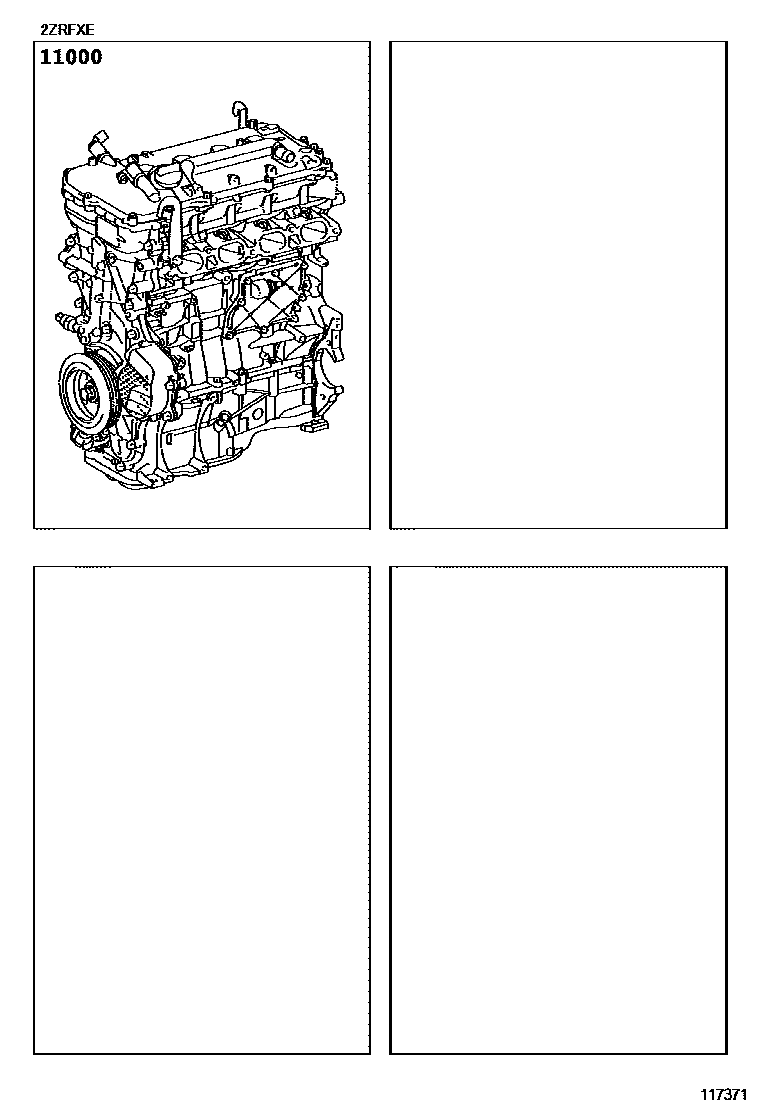

Toyota PRIUS(PLUG-IN HBD) — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-37460i201201-201505

main19000-37462i201505-201506

1 parts on this diagram · 1 diagram in section
