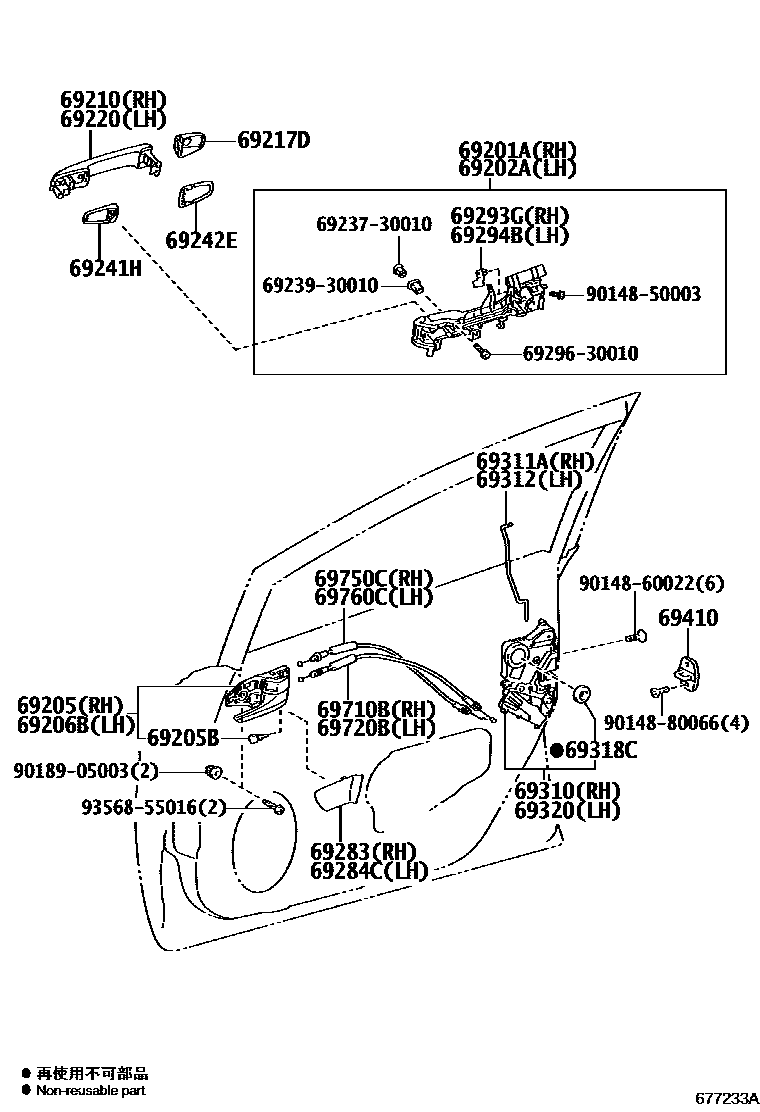

Toyota PRIUS(PLUG-IN HBD) — FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#,2#,6#; BLACK,TRIM1#,6#
GREGE,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM1#,2#,6#; BLACK,TRIM1#,6#
GREGE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SILVER ME.,8W1; SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON),SILVER ME.,8W1
ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1; SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON),ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1
SMART ENTRY-WITH(FRONT & BACK DOOR,W/PANIC BUTTON),SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1; SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1
SILVER ME.,8W1
ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1
SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
SILVER ME.,8W1,DRIVER SIDE
ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1,DRIVER SIDE
SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1,DRIVER SIDE
SILVER ME.,8W1,PASSENGER SIDE
ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1,PASSENGER SIDE
SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SILVER ME.,8W1
ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1
SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1
SILVER ME.,8W1
ORNAMENT SILVER,040 ,070 ,1F7 ,781 ,8V1
SUPER CHROME ME. 2,040 ,070 ,1F7 ,781 ,8V1 ,8W1
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
DK.GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,60
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#; AQUA,TRIM60
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9018905003
main90189-05003
9356855016
main93568-55016
32 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota PRIUS(PLUG-IN HBD)
This section contains 32 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota PRIUS(PLUG-IN HBD). Key components include: FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, CUSHION(FOR FRONT DOOR INSIDE HANDLE), HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH.
