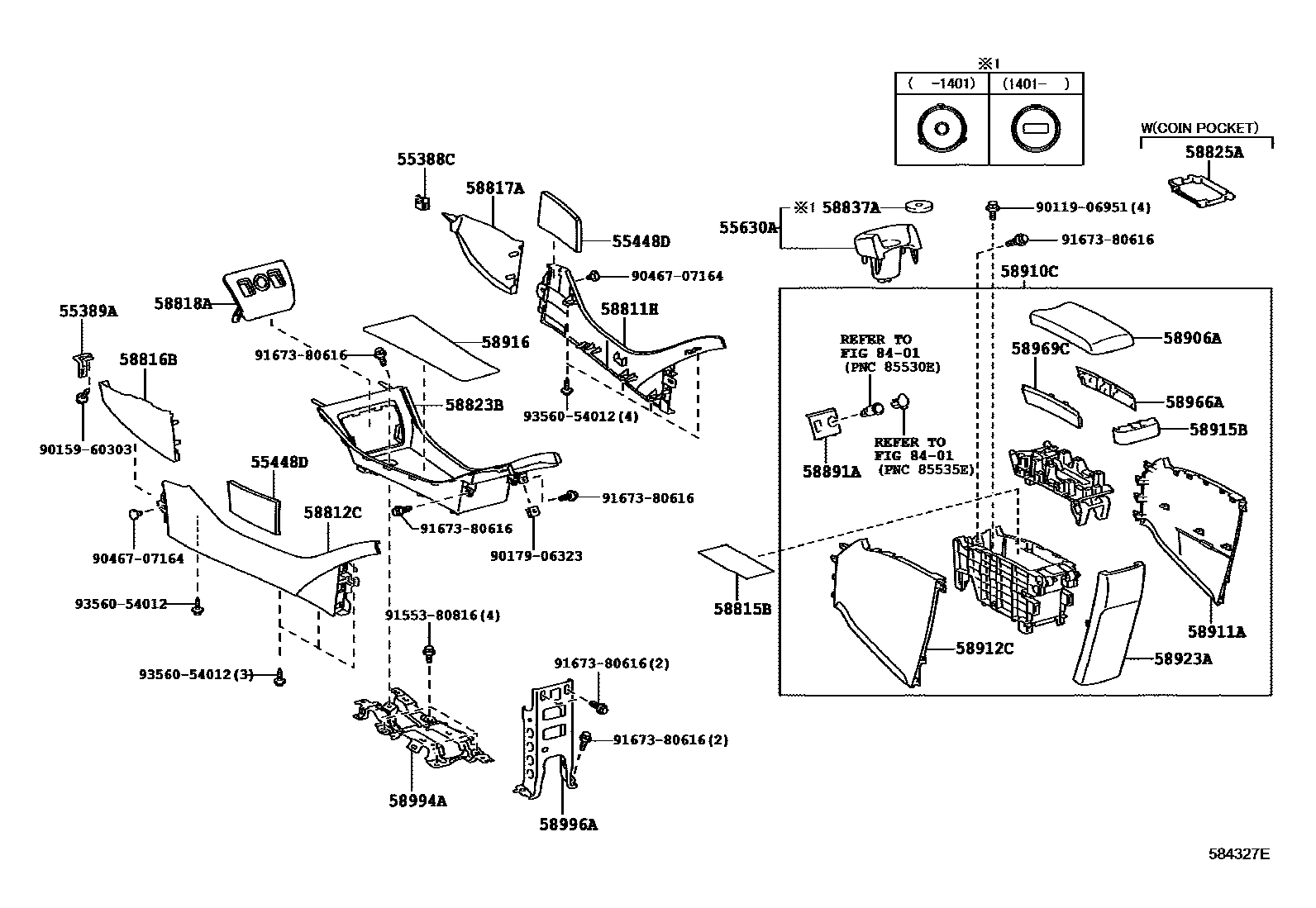

Toyota PRIUS(PLUG-IN HBD) — CONSOLE BOX & BRACKET
55388CBRACKET, CONSOLE MOUNTING, RH
55389ABRACKET, CONSOLE MOUNTING, LH
55448DCUSHION, INSTRUMENT PANEL FINISH PANEL, NO.1
55630AHOLDER, REAR CONSOLE BOX, CUP
58811HBOX, CONSOLE, RH
BLACK,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
58812CBOX, CONSOLE, LH
BLACK,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
58815BCARPET, CONSOLE BOX
58816BINSERT, CONSOLE BOX
BLACK,TRIM1#
BLACK,TRIM1#,2#
GREGE,TRIM4#
AQUA,TRIM6#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM1#,2#
BLACK,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
58818ACOVER, CONSOLE BOX, FR
BLACK,TRIM1#
BLACK,TRIM1#,2#
GREGE,TRIM4#
AQUA,TRIM6#
58823BBOX, CONSOLE COMPARTMENT
BLACK,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
58825APOCKET, CONSOLE BOX
58837APAD, CONSOLE BOX SILENCER, NO.2
58891APANEL, EQUIPMENT SET, NO.1
58906APAD SUB-ASSY, CONSOLE COMPARTMENT DOOR
GRAY,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
BLACK,TRIM1#
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#
GREGE,TRIM4#
SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#
SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
AQUA,TRIM6#
58910CBOX ASSY, CONSOLE, REAR
GRAY/BLACK,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#
BLACK,TRIM1#
GREGE,TRIM4#
SEAT COVER MATERIAL-SYNTHETIC LEATHER,GREGE,TRIM4#
AQUA,TRIM6#
SEAT COVER MATERIAL-SYNTHETIC LEATHER,AQUA,TRIM6#
58911APANEL, BOX SIDE, NO.1
58912CPANEL, BOX SIDE, NO.2
58915BCOVER, CONSOLE COMPARTMENT DOOR BOX, REAR
BLACK,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
58916MAT, BOX BOTTOM
BLACK,TRIM1#,4#,6#
58923APANEL, CONSOLE REAR END
58966AINSERT, CONSOLE COMPARTMENT DOOR, NO.1
BLACK,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
58969CINSERT, CONSOLE COMPARTMENT DOOR, NO.2
BLACK,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8401
9011906951
main90119-06951
9015960303
main90159-60303
9017906323
main90179-06323
9046707164
main90467-07164
9155380816
main91553-80816
9167380616
main91673-80616
9356054012
main93560-54012
33 parts on this diagram · 1 diagram in section
