Toyota PRIUS(PLUG-IN HBD) — SPEAKER

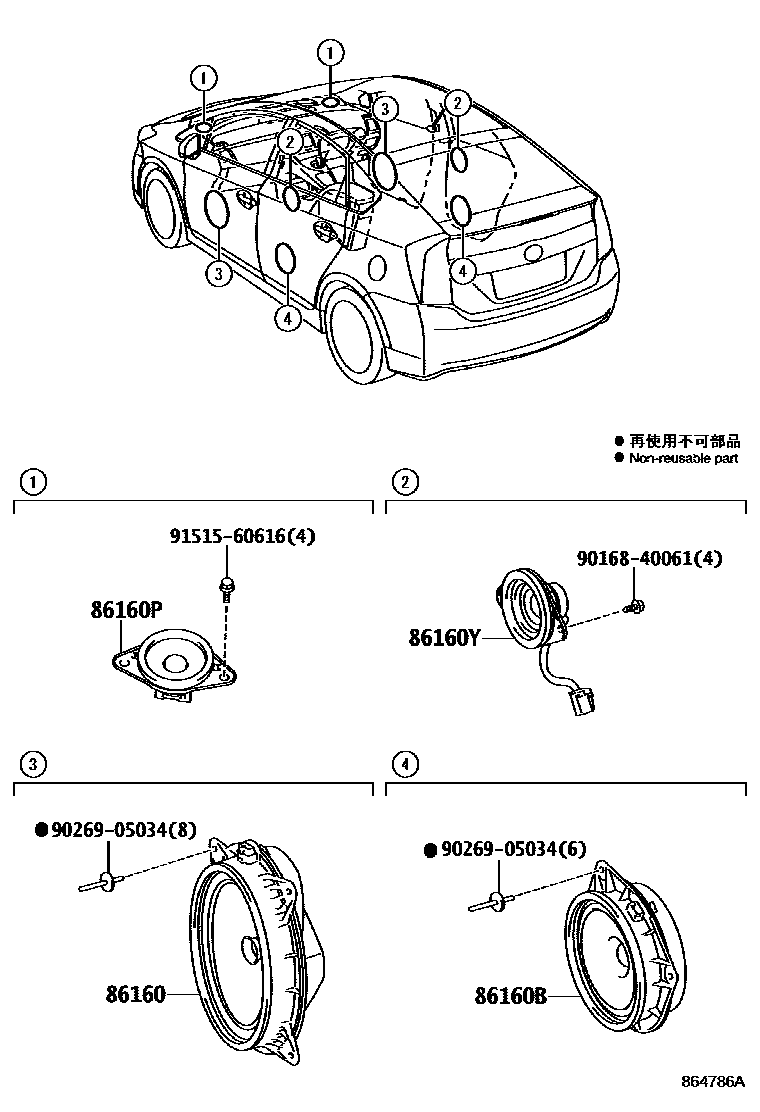

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-58240×2i201201

main86160-0WV50×2i201201-201508

main86160-47190×2i201509

86160BSPEAKER ASSY, REAR

main86160-52300×2i201201

main86160-52330×2i201201-201506

main86160-52331×2i201507

main86160-0WV60×2i201201-201508

main86160-47210×2i201509

86160PSPEAKER ASSY, FRONT NO.2

main86160-47070×2i201201

main86160-0WV70×2i201201-201508

main86160-47200×2i201509

86160YSPEAKER ASSY, REAR NO.2

main86160-0WX10×2i201201-201509

main86160-47230×2i201510-201604

9016840061

main90168-40061

9026905034

main90269-05034

9151560616

main91515-60616

7 parts on this diagram · 1 diagram in section

SPEAKER for Toyota PRIUS(PLUG-IN HBD)

This section contains 7 genuine Toyota parts for the SPEAKER system of the Toyota PRIUS(PLUG-IN HBD). Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2, SPEAKER ASSY, REAR NO.2.
