Toyota PRIUS(PLUG-IN HBD) — WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1SEAT 0009 1HIGH-TENSION CABLE 0010 1CLAMP & BRACKET 0011 1CABLE BOND 0012 1CONNECTOR 1/2 0013 1CONNECTOR 2/2

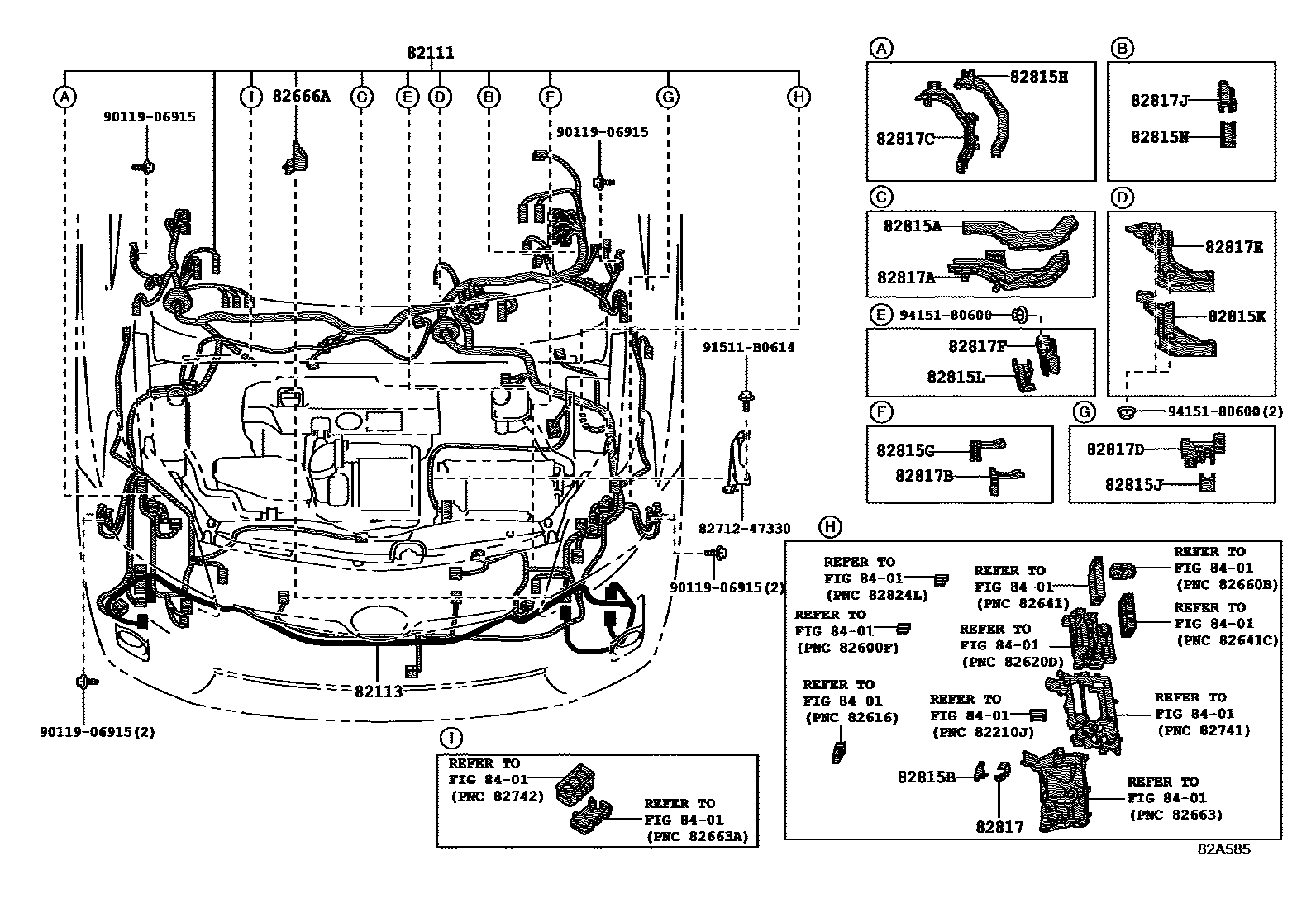

82111WIRE, ENGINE ROOM MAIN

main82111-47500iZVW35..RHD200912

main82111-47520iZVW35..LHD200912

82113WIRE, ENGINE ROOM, NO.3

main82113-47050iZVW35200912

82666AHOLDER, CONNECTOR NO.2

main82666-47380iZVW35200912

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-47820iZVW35..LHD200912

main82815-47830iZVW35..RHD200912

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-47390iZVW35200912

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-47560iZVW35200912

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-47780iZVW35200912

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-47810iZVW35200912

82815KCOVER, WIRING HARNESS PROTECTOR, NO.8

main82815-47570iZVW35..RHD200912

main82815-47610iZVW35..LHD200912

82815LCOVER, WIRING HARNESS PROTECTOR, NO.9

main82815-47600iZVW35..LHD200912

main82815-47C00iZVW35..RHD200912

NO.1

main82815-47C10iZVW35..RHD200912

NO.2

82815NCOVER, WIRING HARNESS PROTECTOR, NO.11

main82815-47380iZVW35..LHD200912

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-47620iZVW35200912

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-47B80iZVW35..LHD200912

main82817-47B90iZVW35..RHD200912

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-47800iZVW35200912

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-47B50iZVW35200912

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-47B70iZVW35200912

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-47810iZVW35..RHD200912

main82817-47860iZVW35..LHD200912

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-47850iZVW35..LHD200912

main82817-47G10iZVW35..RHD200912

NO.1

main82817-47G20iZVW35..RHD200912

NO.2

82817JPROTECTOR, WIRING HARNESS, NO.9

main82817-47600iZVW35..LHD200912

main82817-47A00iZVW35..RHD200912

8401

8271247330CLAMP, WIRING HARNESS

main82712-47330

9011906915

main90119-06915

91511B0614

main91511-B0614

9415180600

main94151-80600

24 parts on this diagram · 13 diagrams in section
