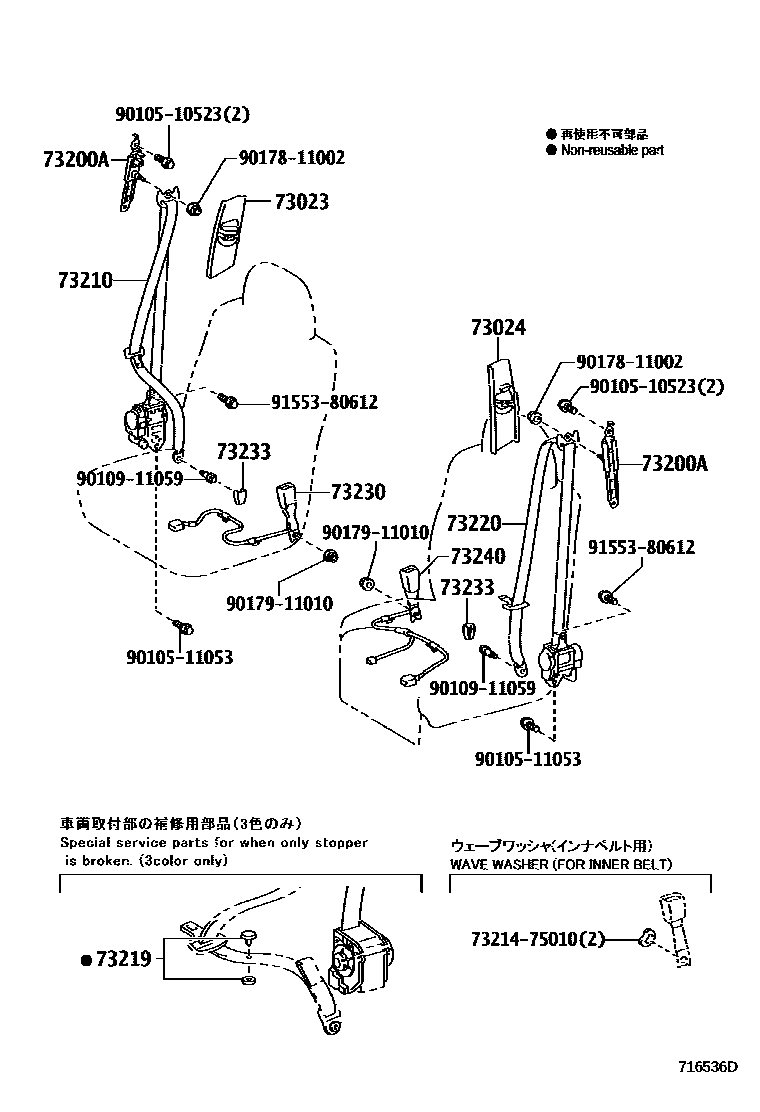

Toyota PRIUS(PLUG-IN HBD) — SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53020-B0iZVW35200912-201010

LT.GRAY,TRIM1#,6#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53020-B0iZVW35200912-201010

LT.GRAY,TRIM1#,6#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010iZVW35200912

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47140-B2iZVW35200912-201006

AQUA,TRIM6#

sub73210-47141

main73210-47141-B2iZVW35201007

AQUA,TRIM6#

sub73210-47143

73219STOPPER, TONGUE PLATE

main73219-33010iZVW35200912

BLACK

main73219-33020iZVW35200912

GRAY

main73219-33030iZVW35200912

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47110-B1iZVW35200912-201006

AQUA,TRIM6#

sub73220-47111

main73220-47111-B1iZVW35201007

AQUA,TRIM6#

sub73220-47113

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-47150-G0iZVW35..RHD200912-201010

AQUA,TRIM6#

sub73230-47110

main73240-47090-G0iZVW35..LHD200912-201010

AQUA,TRIM6#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-B0iZVW35200912

MD.GRAY,TRIM1#,6#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-47170-G0iZVW35..LHD200912-201010

AQUA,TRIM6#

main73240-47060-G0iZVW35..RHD200912-201010

AQUA,TRIM6#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511053

main90105-11053

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

16 parts on this diagram · 2 diagrams in section
