Toyota PRIUS(PLUG-IN HBD) — PARTIAL ENGINE ASSEMBLY

Parts diagram

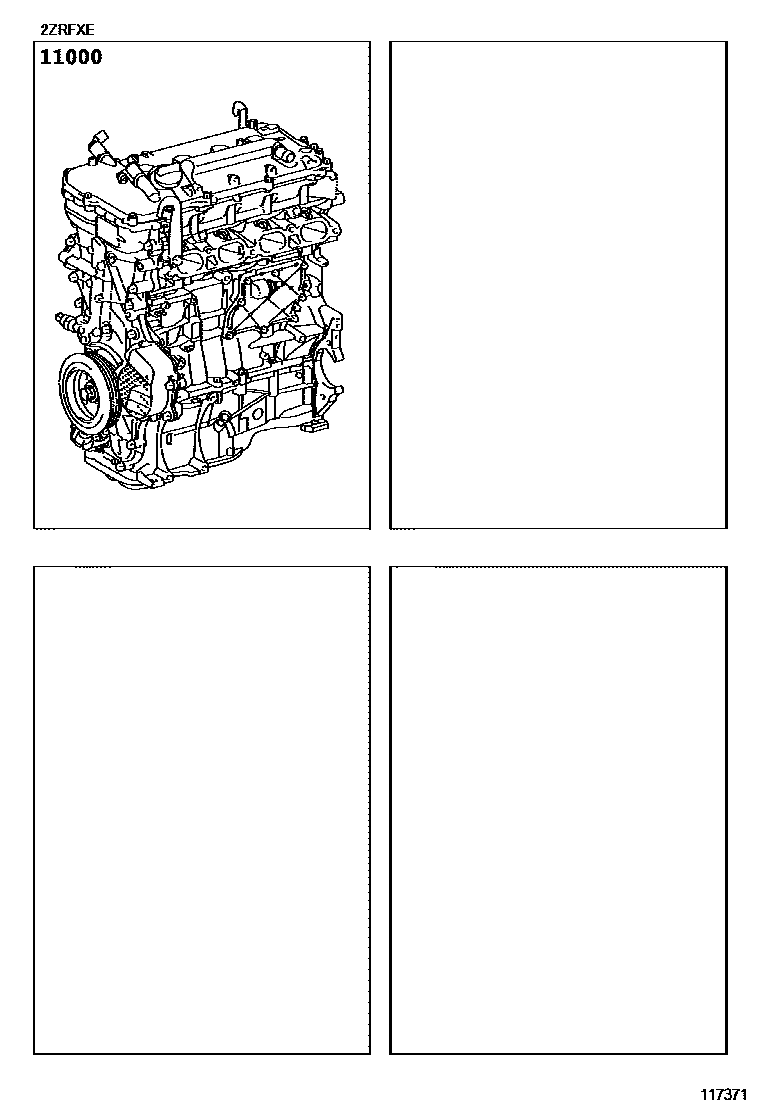

11000ENGINE ASSY, PARTIAL

main19000-37470i201205-201505

main19000-37472i201505

1 parts on this diagram · 1 diagram in section
