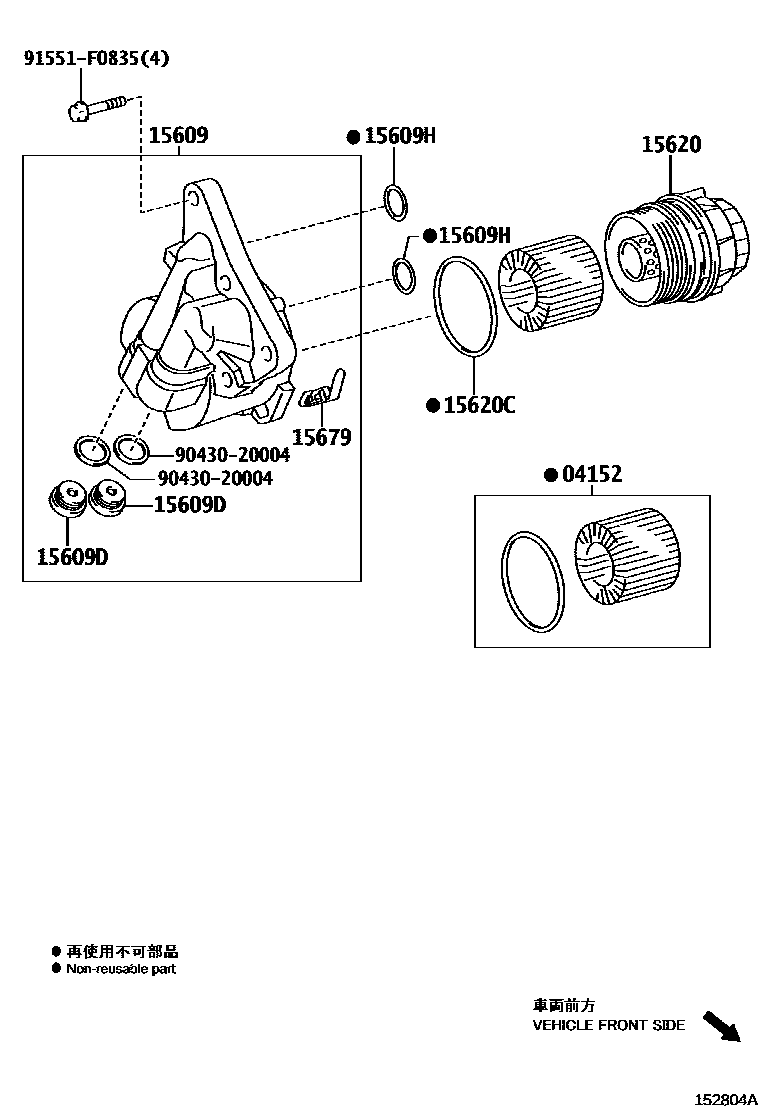

Toyota PRIUS(PLUG-IN HBD) — OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-37010i2ZRFXE..ZVW35200912

15609BRACKET SUB-ASSY, OIL FILTER

main15609-37040i2ZRFXE..ZVW35200912

sub15609-37041

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i2ZRFXE..ZVW35200912

15609HRING, O(FOR OIL FILTER BRACKET)

main96723-24020i2ZRFXE..ZVW35200912

15620CAP ASSY, OIL FILTER

main15620-37010i2ZRFXE..ZVW35200912

15620CGASKET(FOR OIL FILTER CAP)

main90301-69011i2ZRFXE..ZVW35200912

15679CLIP, OIL FILTER BRACKET

main15679-37010i2ZRFXE..ZVW35200912

sub15679-37011

9043020004

main90430-20004

91551F0835

main91551-F0835

9 parts on this diagram · 1 diagram in section
