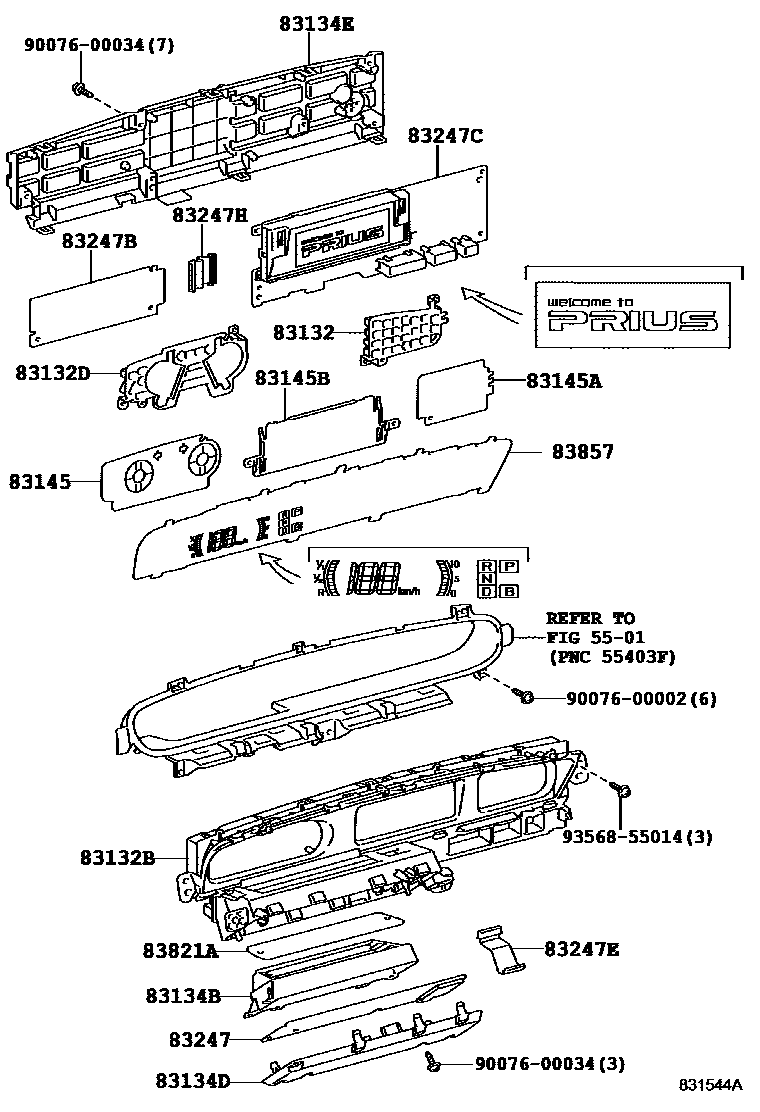

Toyota PRIUS(PLUG-IN HBD) — METER

0001 1 0002 1

5501

83132CASE, COMBINATION METER

main83841-47340iZVW35..RHD200912

main83841-47360iZVW35..LHD200912

83132BCASE, COMBINATION METER NO.3

main83841-47350iZVW35..RHD200912

main83843-47360iZVW35..LHD200912

83132DCASE, COMBINATION METER, NO.2

main83841-47470iZVW35..RHD200912

main83841-47480iZVW35..LHD200912

83134BCOVER, COMBINATION METER, NO.2

main83822-47340iZVW35..RHD200912

main83822-47360iZVW35..LHD200912

83134DCOVER, COMBINATION METER, NO.3

main83821-47360iZVW35..LHD200912

main83823-47340iZVW35..RHD200912

83134ECOVER, COMBINATION METER, NO.4

main83823-47360iZVW35..LHD200912

main83824-47340iZVW35..RHD200912

83145LENS, METER, NO.1

main83832-47470iZVW35..RHD200912

main83832-47480iZVW35..LHD200912

83145ALENS, METER, NO.2

main83831-47490iZVW35..LHD200912

main83831-47500iZVW35..RHD200912

83145BLENS, METER, NO.3

main83833-47340iZVW35200912

83247PLATE, METER CIRCUIT

main83861-47390iZVW35..LHD200912

main83861-47430iZVW35..RHD200912

83247BPLATE, METER CIRCUIT, NO.2

main83862-47470iZVW35..RHD200912

main83862-47480iZVW35..LHD200912

83247CPLATE, MATER CIRCUIT, NO.3

main83861-47490iZVW35..LHD200912

main83861-47500iZVW35..RHD200912

83247EPLATE, MATER CIRCUIT, NO.4

main83864-47340iZVW35200912

83247HPLATE, METER CIRCUIT, NO.5

main83865-47340iZVW35200912

83821ACOVER, COMBINATION METER, NO.1

main83821-47340iZVW35200912-201010

83857REFLECTOR, COMBINATION METER, NO.1

main83857-47470iZVW35..RHD200912

main83857-47480iZVW35..LHD200912

9007600002

main90076-00002

9007600034

main90076-00034

9356855014

main93568-55014

20 parts on this diagram · 2 diagrams in section
