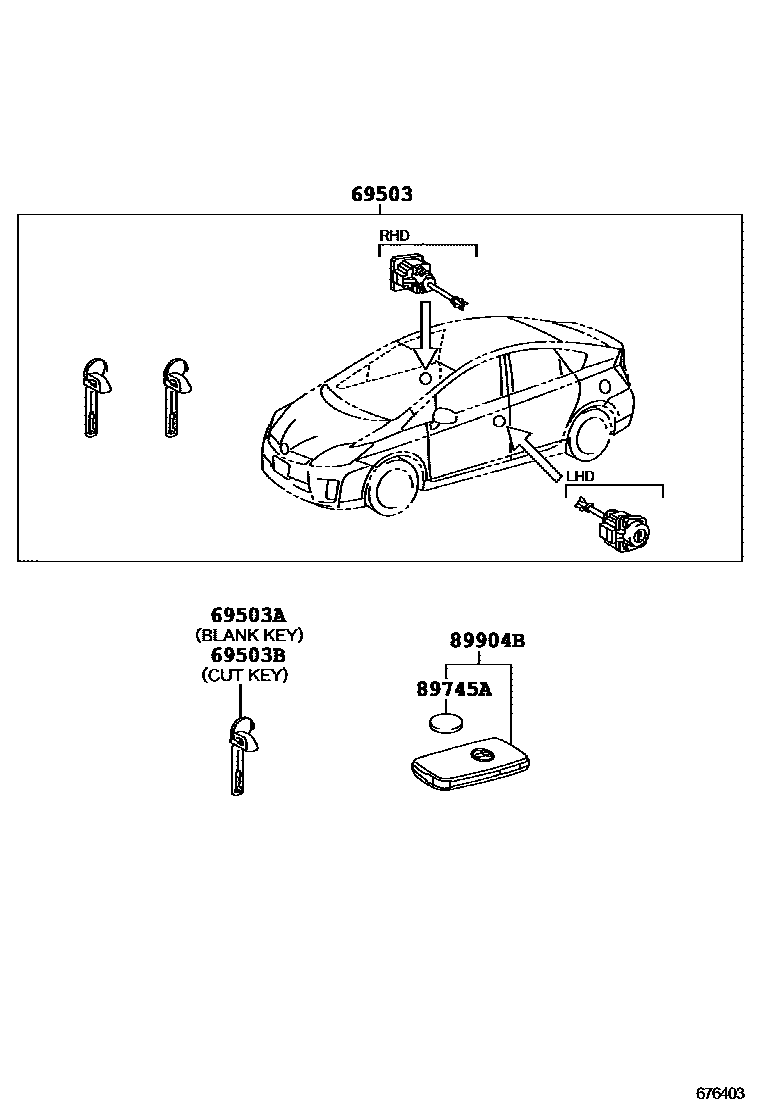

Toyota PRIUS(PLUG-IN HBD) — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-47140iZVW35..LHD200912

main69005-47170iZVW35..RHD200912

69503AKEY, BLANK

main69515-52120iZVW35200912-201010

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-52110iZVW35200912

MASTER KEY,W(*68)

89745ABATTERY, TRANSMITTER

main89745-52030iZVW35200912

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-47180iZVW35200912

sub89904-47342

5 parts on this diagram · 1 diagram in section
