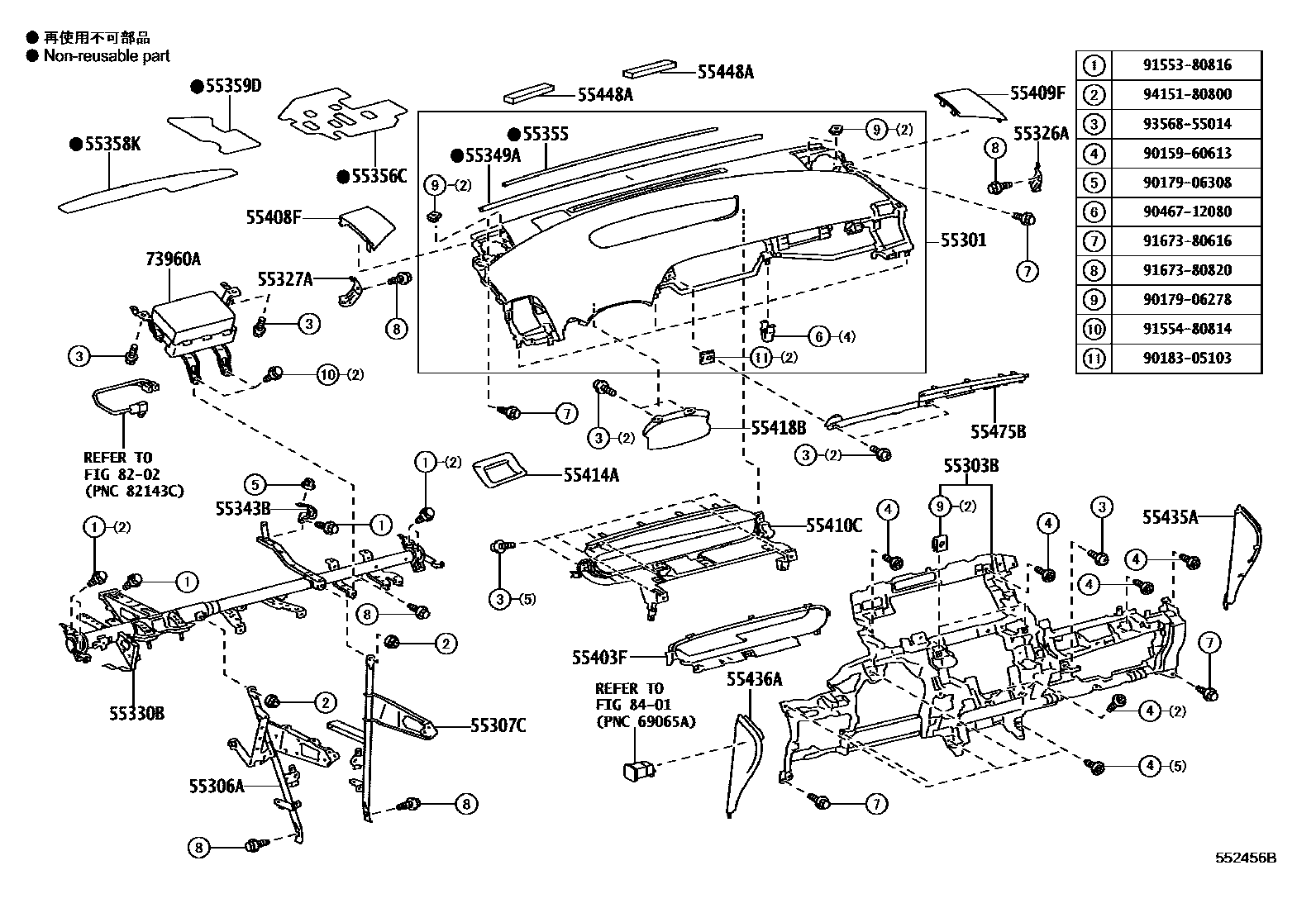

Toyota PRIUS(PLUG-IN HBD) — INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
MIST GRAY,TRIM6#
MIST GRAY,TRIM6#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
AQUA,TRIM6#
AQUA,TRIM6#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55326ASTAY, INSTRUMENT PANEL, NO.1
55327ASTAY, INSTRUMENT PANEL, NO.2
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
55349ACUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
sub55356-47070
55358KCUSHION, INSTRUMENT PANEL, NO.4
55359DCUSHION, INSTRUMENT PANEL, NO.5
sub55359-47030
55403FPANEL SUB-ASSY, INSTRUMENT PANEL FINISH
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH
55414APANEL, INSTRUMENT CLUSTER FINISH, END
MIST GRAY,TRIM6#
55435APANEL, INSTRUMENT PANEL FINISH, END RH
AQUA,TRIM6#
55436APANEL, INSTRUMENT PANEL FINISH, END LH
AQUA,TRIM6#
55448ACUSHION, INSTRUMENT PANEL FINISH, NO.1
55475BGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
8401
9015960613
main90159-60613
9017906278
main90179-06278
9017906308
main90179-06308
9018305103
main90183-05103
9046712080
main90467-12080
9155380816
main91553-80816
9155480814
main91554-80814
9167380616
main91673-80616
9167380820
main91673-80820
9356855014
main93568-55014
9415180800
main94151-80800
37 parts on this diagram · 8 diagrams in section
