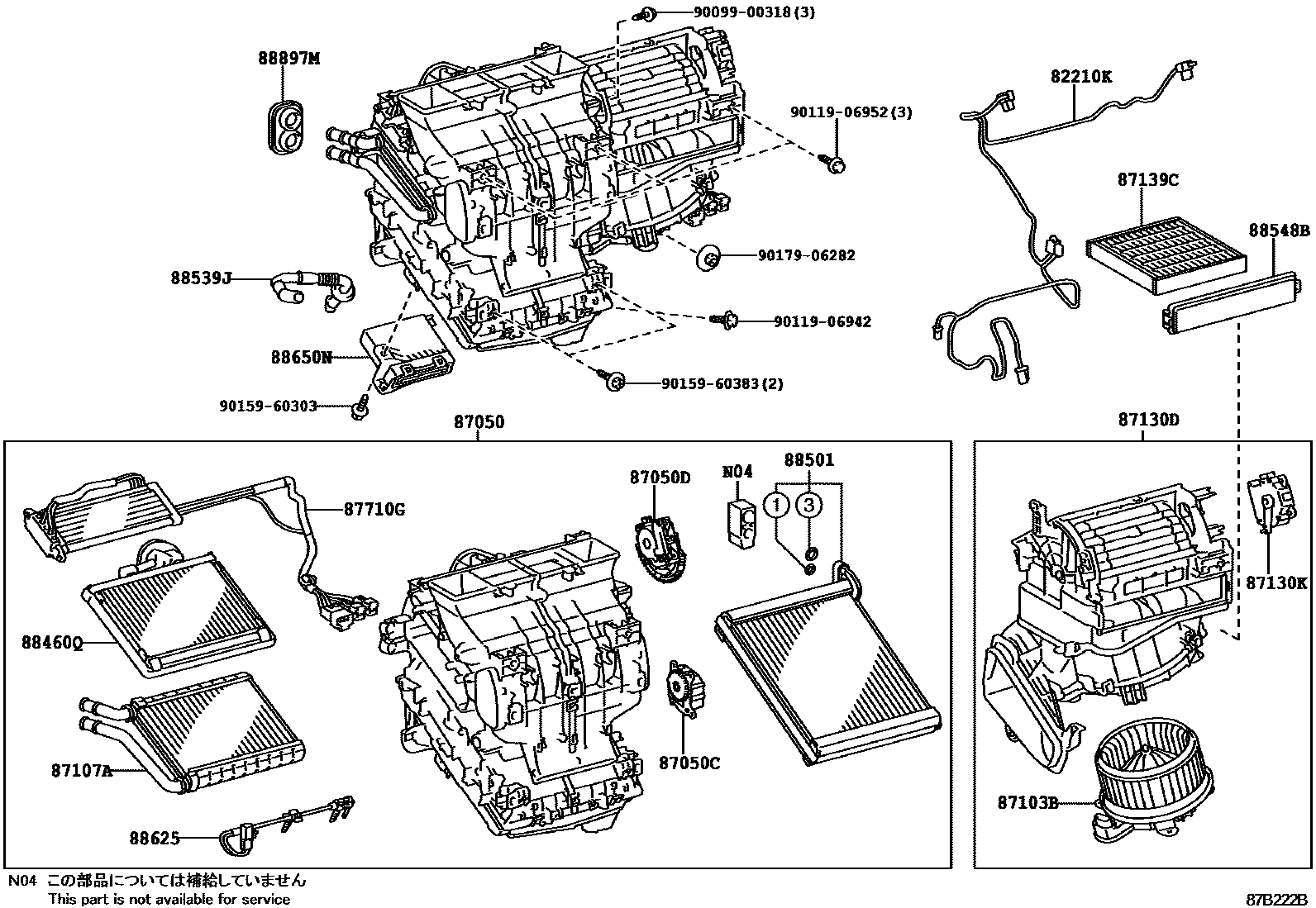

Toyota PRIUS(PLUG-IN HBD) — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12020iZVW35..RHD200912

main82212-47010iZVW35..LHD200912

87050RADIATOR ASSY, AIR CONDITIONER

main87050-47160iZVW35..LHD200912-201010

main87050-47170iZVW35..RHD200912-201010

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-12170iZVW35200912

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-47150iZVW35200912

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-47031iZVW35..RHD200912

main87103-47041iZVW35..LHD200912

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-42170iZVW35200912-201010

87130DBLOWER ASSY

main87130-47150iZVW35..LHD200912

main87130-47160iZVW35..RHD200912

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-42120iZVW35..RHD200912

main87106-47140iZVW35..LHD200912

87139CFILTER, CLEAN AIR

main87139-30040iZVW35200912-201010

87710GQUICK HEATER ASSY

main87710-42010iZVW35..RHD200912

main87710-47040iZVW35..LHD200912

88460QCONDENSER ASSY

main88460-47160iZVW35200912-201010

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-47050iZVW35200912-201006

sub88501-47051

main88501-47051iZVW35201007

88539JHOSE, DRAIN COOLER

main88539-12190iZVW35..RHD200912

main88539-12200iZVW35..LHD200912

88548BCASE, AIR FILTER

main88548-42010iZVW35..RHD200912

main88548-42020iZVW35..LHD200912

88625THERMISTOR, COOLER, NO.1

main88625-71010iZVW35200912

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-47100iZVW35200912

88897MGROMMET (FOR HEATER PIPE)

main87128-42010iZVW35200912-201010

9009900318

main90099-00318

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

23 parts on this diagram · 3 diagrams in section
